Serial Port Emulator
The SLATE R1260UB can be connected to a PC via USB connection. The RFID reader emulates a serial port. In the next
paragraph the procedure to install the required driver is presented.
Driver installation
The procedure to install the USB driver is presented below:
1.
Verify that the USB cable is correctly plugged into the PC.
2.

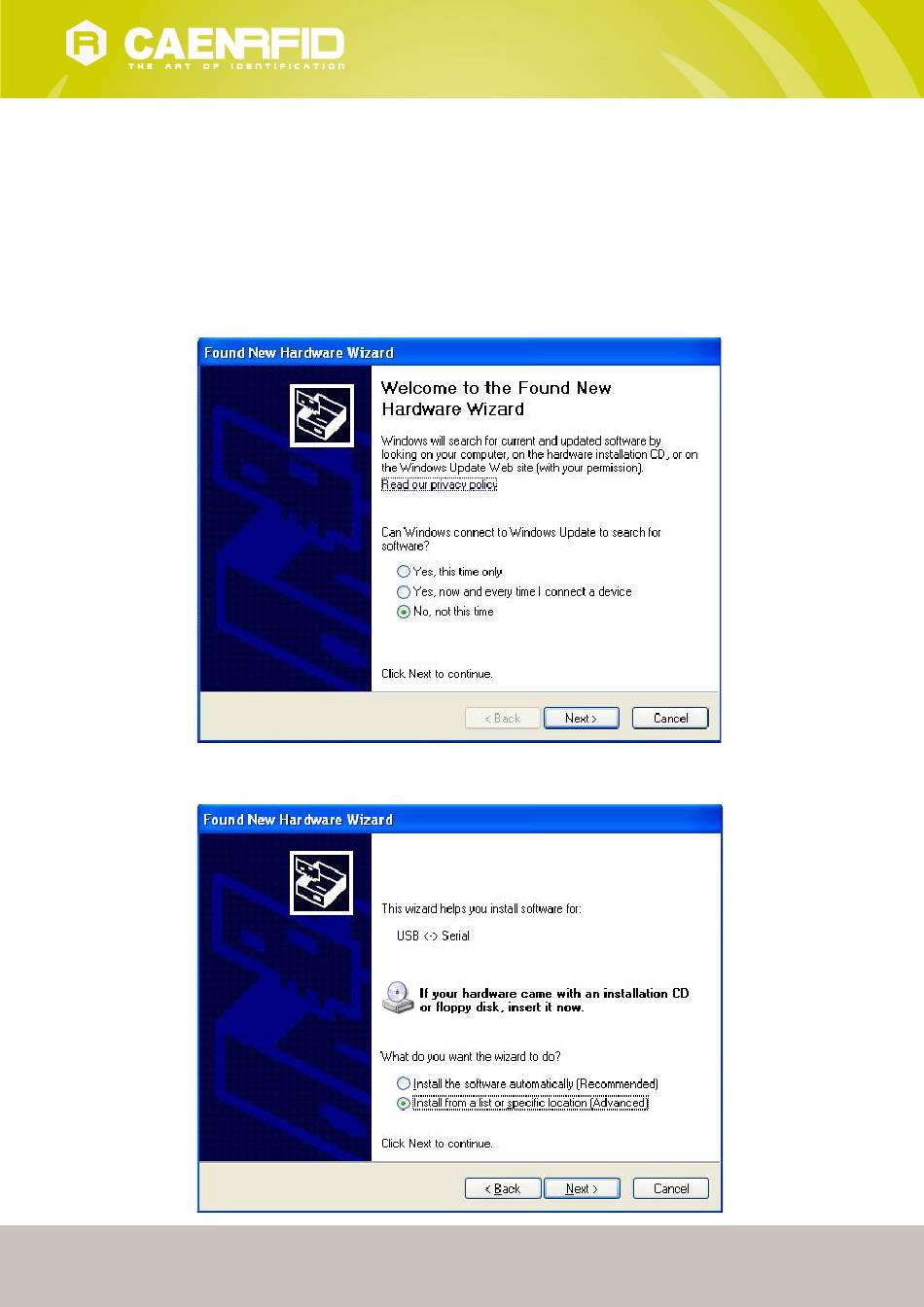

If the USB to Serial driver is not installed on the PC the following pop-up window is displayed.
3.
Insert the CD provided together with the SLATE R1260UB. Select "No, not this time" and click on next.
4.
Select "Install from a list or specific location and click on next.
FUNCTIONAL DESCRIPTION - Slate R1260UB Technical Information Manual
8
