Fig. 1.3: Slate R1260Ub Wall Mounting - Caen RFID Easy2read Slate R1260UB Technical Information Manual

Horizontal Installation:
The Slate can be easily placed on a table for desktop applications affixing the 4 rubber feet to the bottom of the Slate
R1260UB to prevent it from sliding.
Vertical Installation:
The Slate can be hanged on the wall (see Fig. 1.3: Slate R1260UB Wall mounting).
First of all, use the two small screws (ø 3 mm) to fix the 2 hooks on the Slate.
Then, to hang the Slate on the wall, fix the hooks to the wall using the 2 rawlplugs (ø 4 mm) + screws at a distance of
146 mm each others.
If you want to hang the Slate on a wood panelling, fix the hooks to the wall just using the 2 screws.

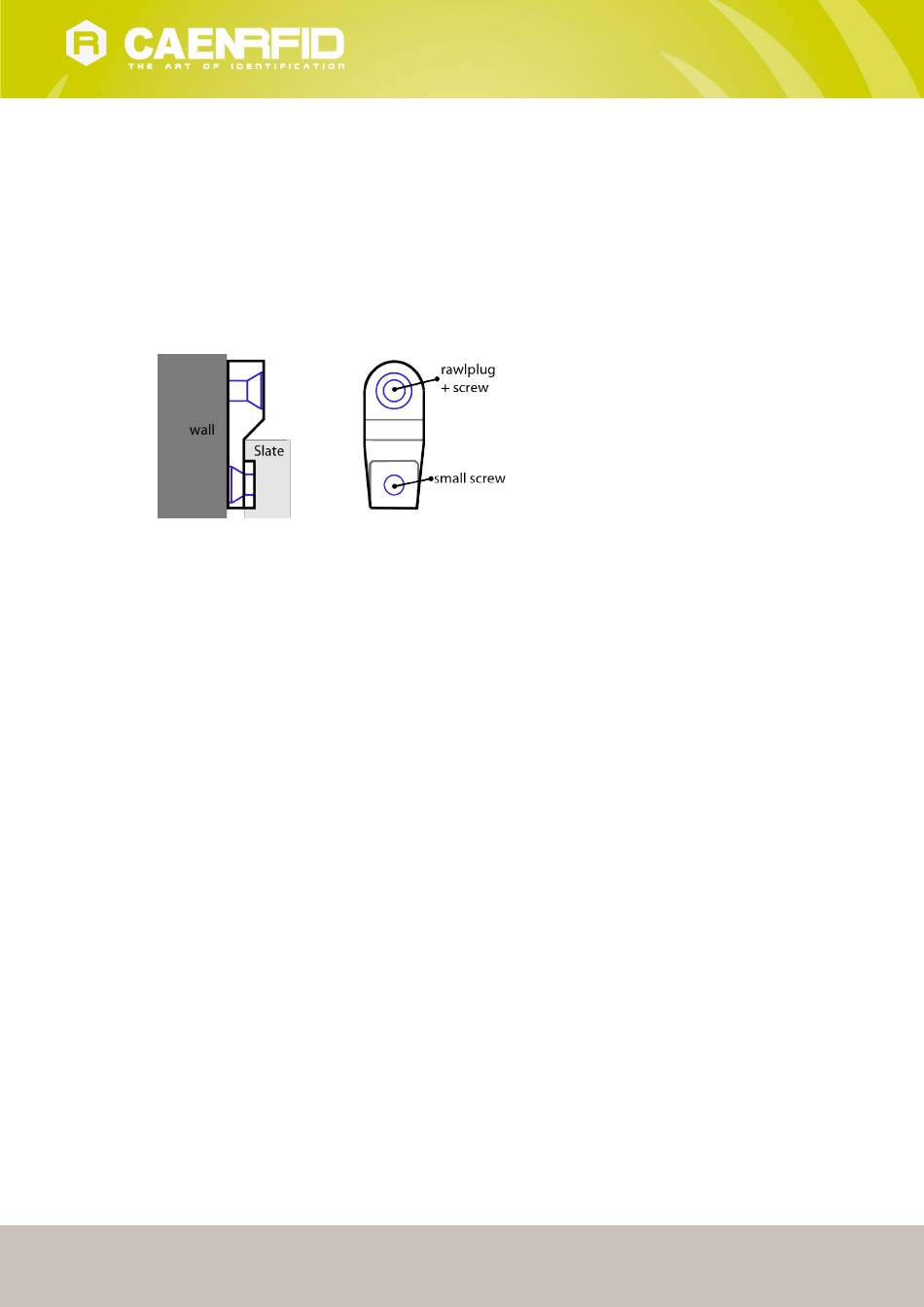

Fig. 1.3: Slate R1260UB Wall mounting
