TECHNICAL INFORMATION MANUAL
Revision 7 – 27 March 2023
R1280I
skID
Mini Sled RAIN RFID Reader

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the skID R1280I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caen RFID skID R1280I

Summary of Contents for Caen RFID skID R1280I

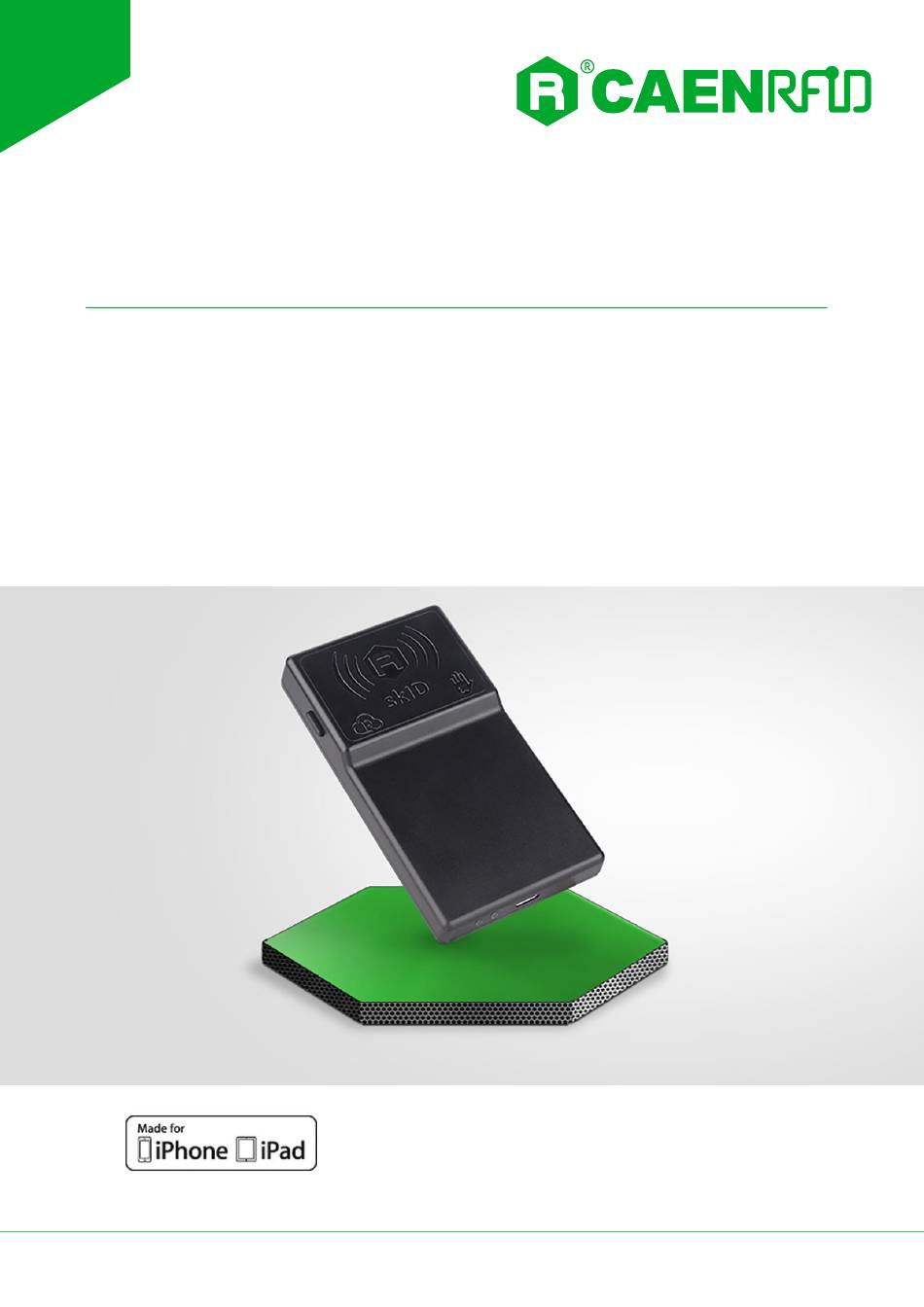

  • Page 1 TECHNICAL INFORMATION MANUAL Revision 7 – 27 March 2023 R1280I skID Mini Sled RAIN RFID Reader...
  • Page 2 All you need to start using your reader in a few clicks! Scope of the Manual The goal of this manual is to provide the basic information to work with the skID R1280I Mini Sled RAIN RFID Reader. This manual refers to: •...
  • Page 3 The information contained herein has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. CAEN RFID reserves the right to modify its products specifications without giving any notice; for up to date information please visit www.caenrfid.com.
  • Page 4 HID Profile..................................88 Introduction .....................................88 Android devices ..................................88 BLE and BT Communication Setup ..........................88 Windows PCs ....................................92 BT Communication Setup ............................92 iOS devices ....................................96 BLE Communication Setup ............................96 BT-BLE Switching ................................ 101 Introduction ...................................101 INDEX – skID R1280I - Technical Information Manual...
  • Page 5 R1280I CE DECLARATION OF CONFORMITY ......................118 skID R1280I UKCA Declaration of Conformity ........................119 skID R1280I FCC Grant part b ..............................120 skID R1280I FCC Grant part C ..............................121 skID R1280I Japan MIC Certificate .............................122 INDEX - skID R1280I - Technical Information Manual...

  • Page 6: Table Of Contents

    Tab. 9.3: Reader to tag link profiles – FCC Regulation .......................109 Tab. 9.4: skID R1280I Battery Life ..............................114 Tab. 9.5: skID R1280I Battery Life – Intensive Use – Scenario A ....................114 Tab. 9.6: skID R1280I Battery Life – Intensive Use – Scenario B ....................114 Tab.

  • Page 7: Fig. 1.1: Skid R1280I Reader

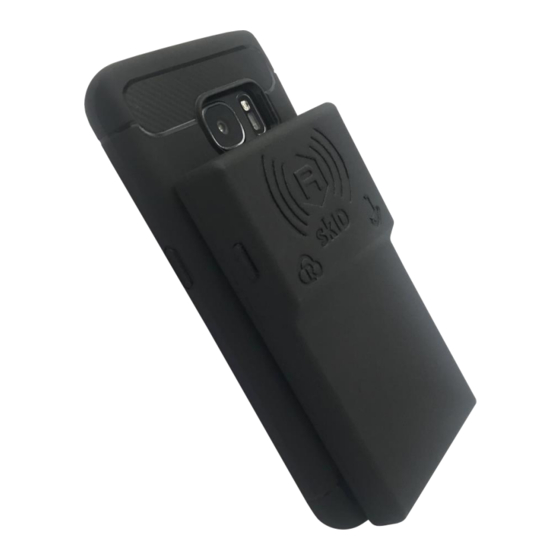

    3M Dual Lock, or SP-Connect. Designed for mobile operators, the skID is ideal for inventory management, mobile workers, service and maintenance applications. Fig. 1.1: skID R1280I Reader Fig. 1.2: skID R1280I Reader INTRODUCTION - skID R1280I - Technical Information Manual...

  • Page 8: Fig. 1.3: Front Panel

    Front panel The skID R1280I front panel houses the following buttons and icon (see figure below): Fig. 1.3: Front Panel Name Description Inventory mode: press to perform an inventory cycle (hold down the button to Trigger button repeat inventory cycles)

  • Page 9: Fig. 1.4: Skid R1280I Reader - Grip

    Fig. 1.4: skID R1280I Reader - Grip INTRODUCTION - skID R1280I - Technical Information Manual...

  • Page 10: Fig. 1.5: Bottom Panel

    Description No connection established Orange USB cable connected (both to a PC or to the AC power adapter) Blue Bluetooth connected Green Configuration mode Tab. 1.4: Bluetooth and USB/charger LED status table INTRODUCTION - skID R1280I - Technical Information Manual...

  • Page 11: Fig. 1.6: Back Panel

    USB connector A USB Type C socket connector is located in the bottom side of the skid R1280I (see § Fig. 1.5: Bottom Panel page 10) and can be used to connect the reader to an USB host port or to an AC/DC battery charger.

  • Page 12: Fig. 1.7: Supplied Accessories

    Accessories The following accessories are supplied with the skID R1280I reader: No. 1 USB cable USB Type C No. 1 3M Dual Lock No. 1 SP Connect No. 2 magnets Fig. 1.7: Supplied Accessories The following is a list of the optional accessories you can purchase (see § Ordering Options page 19):...

  • Page 13: Fig. 1.9: Magnets Position

    Fixing the reader to the smartphone using the magnets is recommended only for indoor environments, because for prolonged outdoor uses the magnets can oxidize. Fig. 1.9: Magnets Position Parameter Value Material NdFeB Size 20x20x1 mm Force of attraction:1kg Adhesive Material: 3M 467MP Tab. 1.6: Magnets Specifications INTRODUCTION - skID R1280I - Technical Information Manual...

  • Page 14: Fig. 1.10: Installation Notice - Magnets

    Follow the steps below for fixing the reader to your phone cover using the magnets: Fig. 1.10: Installation Notice - Magnets Warning: To detach the phone from the reader, slide the skID parallel to the phone and not perpendicularly INTRODUCTION - skID R1280I - Technical Information Manual...

  • Page 15: Fig. 1.11: 3M Dual Lock Tm Position

    Fig. 1.11: 3M Dual Lock Position Parameter Value Thickness 5.8mm (coupled tape) Opening and closing cycles before 1000 losing 50% of the attractive force Tab. 1.7: 3M Dual Lock Specifications INTRODUCTION - skID R1280I - Technical Information Manual...

  • Page 16: Fig. 1.12: Installation Notice - 3M Dual Lock Tm

    Follow the steps below for fixing the reader to your phone cover using the 3M Dual Lock Fig. 1.12: Installation Notice - 3M Dual Lock INTRODUCTION - skID R1280I - Technical Information Manual...

  • Page 17: Fig. 1.13: Sp Connect Tm Position

    Fixing the reader to the smartphone using the SP Connect is recommended especially for outdoor environments. Fig. 1.13: SP Connect Position Follow the steps below for fixing the reader to your phone cover using the SP Connect INTRODUCTION - skID R1280I - Technical Information Manual...

  • Page 18: Fig. 1.14: Installation Notice - Sp Connect Tm

    Fig. 1.14: Installation Notice - SP Connect INTRODUCTION - skID R1280I - Technical Information Manual...
  • Page 19 R1280I - skID - RAIN RFID Mini Sled Reader ETSI WR1280IXJPAA R1280I - skID - RAIN RFID Mini Sled Reader ARIB WALIM0000004 AC-DC power supply 5V 1A Accessories COVER For information ask at info@caenrfid.com INTRODUCTION - skID R1280I - Technical Information Manual...
  • Page 20 Follow the steps below to connect your Android device to the skID reader using the BLE connection and the Easy Controller App. All the images below were generated using a Samsung S7 model device. Download on your Android device the CAEN RFID Easy Controller for Android App (available link at the skID R1280I web page, by clicking on the Android App on Google Play icon).
  • Page 21 Click on the menu icon: GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 22 Click on “CONNECTION”: GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 23 Click on “BLE” in the Connection type window: GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 24 Select the skID R1280I reader from the list of Bluetooth devices available (in this example the skID with serial number 21210102): GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 25 Once the connection is established the Bluetooth blue LED of the reader turns on (see § Tab. 1.4: Bluetooth and USB/charger LED status table page 10). To start using your skID R1280I reader, click on the menu icon and then on the inventory tab:...
  • Page 26 10. Click on the menu icon to start the Inventory: GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 27 11. A list of the read tags is shown: 12. Click on the menu icon to stop the inventory. GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 28 Follow the steps below to connect your iOS device to the skID reader using the BLE connection and the Easy Controller App. All the images below were generated using an Apple iphone XR model. Download on your iOS device the CAEN RFID Easy Controller for iOS App (available link at the skID R1280I web page, by clicking on the App Store icon).
  • Page 29 Click on the menu icon: GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 30 Click on “CONNECTION”: GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 31 Click on “BLE” in the Connection type window: GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 32 Select the skID R1280I reader from the list of Bluetooth devices available (in this example the skID with serial number 21210102): GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 33 Once the connection is established the Bluetooth blue LED of the reader turns on (see § Tab. 1.4: Bluetooth and USB/charger LED status table page 10). To start using your skID R1280I reader, click on the menu icon and then on the inventory tab:...
  • Page 34 10. Click on the menu icon to start the Inventory: GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 35 11. A list of the read tags is shown: 12. Click on the menu icon to stop the inventory. GETTING STARTED - skID R1280I - Technical Information Manual...
  • Page 36 3 CONFIGURATION MENU Introduction The skID R1280I configuration can be performed via USB using the R1280I Configuration Tool. To access the configuration menu, follow the steps described below: Download from the skID R1280I web page the latest version of the skID R1280I Configuration Tool.
  • Page 37 If the connection is not successful, the message “connection error” appears. To disconnect the reader, on the main application window click on File → Disconnect. The skID R1280I menu options are the following: • RFID • SYSTEM CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 38 RFID Access the configuration menu as explained in the Introduction paragraph page 36. Use this section to set the desired profile and then the related configuration options. General Settings CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 39 EASY2READ (factory default) is the CAEN RFID easy2read communication protocol that permits to control the reader using the CAEN RFID Easy Controller Application or the SDK (Software Development Kit) library. For details on the use of the EASY2READ profile please refer to §...
  • Page 40 On the main application window click on File → Disconnect. Power off the reader, disconnect the USB cable and then power on the reader, the new settings are active. CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 41 When the reader is configured in the EASY2READ profile, to set the EPCC1G2 Parameters you can also use the CAEN RFID Easy Controller Application or the SDK (Software Development Kit) library. Note that using the SDK or the Easy Controller only the current values are set, therefore when the reader is turned off, the parameters assume the values set via the configuration interface again.
  • Page 42 On the main application window click on File → Disconnect. Power off the reader, disconnect the USB cable and then power on the reader, the new settings are active. CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 43 On the main application window click on File → Disconnect. Power off the reader, disconnect the USB cable and then power on the reader, the new settings are active. CONFIGURATION MENU - skID R1280I - Technical Information Manual...

  • Page 44: Tab. 3.1: Epc Code Parameters

    '4', '5', '6', '7', '8', '9', '{', '|', '}', '!', '"', '#', '$', '(', ')', '*', '+', ',', '.', '/', ':', ';', '=', '?', '@', '[', ']', '^', '_', '-' By default, the prefix string is empty. The maximum allowed length of the string is 7 characters. CONFIGURATION MENU - skID R1280I - Technical Information Manual...

  • Page 45: Tab. 3.2: Escape Sequences Supported

    Escape Sequences Description Newline (Line Feed) Carriage Return Horizontal Tab Vertical Tab Backslash Tab. 3.2: Escape Sequences supported CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 46 LENGTH: number of words of the selected BANK that must be displayed. If set to 0 no words will be displayed. By default, the length value is 0. • SUFFIX: see Suffix definition in the previous paragraph (EPC code parameters). CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 47 On the main application window click on File → Disconnect. Power off the reader, disconnect the USB cable and then power on the reader, the new settings are active. CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 48 On the main application window click on File → Disconnect. Power off the reader, disconnect the USB cable and then power on the reader, the new settings are active. CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 49 On the main application window click on File → Disconnect. Power off the reader, disconnect the USB cable and then power on the reader, the new settings are active. CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 50 Firmware Release In this section you can find information about: • Reader: the reader firmware release • RF: the internal RF module revision • Bluetooth: the Bluetooth firmware revision CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 51 On the main application window click on File → Disconnect. Power off the reader, disconnect the USB cable and then power on the reader, the new settings are active. CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 52 On the main application window click on File → Disconnect. Power off the reader, disconnect the USB cable and then power on the reader, the new settings are active. CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 53 Auto Shut Down: automatic shutdown of the reader after a certain time of inactivity. If enabled, define the shutdown time in Timeouts in seconds. By default, the Auto Shut Down is disabled. CONFIGURATION MENU - skID R1280I - Technical Information Manual...
  • Page 54 The reader is sold with the shipping mode enabled. CONFIGURATION MENU - skID R1280I - Technical Information Manual...

  • Page 55: Tab. 4.1: Compatibility Table Easy2Read-Bt/Ble/Usb For Different Os

    Follow the steps below to connect your Android device to the skID reader using the BLE connection and the Easy Controller App. All the images below were generated using a Samsung S7 model device. Download on your Android device the CAEN RFID Easy Controller for Android App (available link at the skID R1280I web page, by clicking on the Android App on Google Play icon).
  • Page 56 Click on the menu icon: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 57 Click on “CONNECTION”: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 58 Click on “BLE” in the Connection type window: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 59 Select the skID R1280I reader from the list of Bluetooth devices available (in this example the skID with serial number 21210102): EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 60 Once the connection is established the Bluetooth blue LED of the reader turns on (see § Tab. 1.4: Bluetooth and USB/charger LED status table page 10). To start using your skID R1280I reader, click on the menu icon and then on the inventory tab:...
  • Page 61 10. Click on the menu icon to start the Inventory: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 62 11. A list of the read tags is shown: 12. Click on the menu icon to stop the inventory. EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 63 Easy Controller App. All the images below were generated using a Samsung S7 model device. Download on your Android device the CAEN RFID Easy Controller for Android App (available link at the skID R1280I web page, by clicking on the Android App on Google Play icon).
  • Page 64 Click on the menu icon: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 65 Click on “CONNECTION”: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 66 Click on “BLUETOOTH STANDARD” in the Connection type window: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 67 Select the skID R1280I reader from the list of Bluetooth devices available (in this example the skID with serial number 21210102): EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 68 Once the connection is established the Bluetooth blue LED of the reader turns on (see § Tab. 1.4: Bluetooth and USB/charger LED status table page 10). To start using your skID R1280I reader, click on the menu icon and then on the inventory tab:...
  • Page 69 10. Click on the menu icon to start the Inventory: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 70 11. A list of the read tags is shown: 12. Click on the menu icon to stop the inventory. EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 71 If your reader is in the USB communication interface active, follow the instructions given in paragraph § Bluetooth and USB communication page 48 to select the Bluetooth communication interface using the skID R1280I Configuration Tool and then the instructions in chapter § BT-BLE Switching page 101 to switch the reader from BLE (Bluetooth Low Energy) to BT (Bluetooth Classic).
  • Page 72 Click on Bluetooth: Select the skID R1280I reader (in this example the skID with serial number 20400011): The message on the screen “Your device is ready to go!” informs you that the connection is established. EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 73 Once the Bluetooth connection is established, a virtual COM port is created on the host PC. This COM port is used to connect to the reader with the CAEN RFID Easy Controller application. Follow the steps below to connect the skID reader using the Easy Controller for Windows via Bluetooth: Connect the skID reader to your PC using the Bluetooth connection as explained in previous paragraph (§...
  • Page 74 Look for the COM port in the Bluetooth Settings (COM 13 in the example below): Launch the CAEN RFID Easy Controller application: On the main application window click on File → Connect; the connection dialog box will appear. EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 75 To verify if the connection with the reader has been established, check the green dot on the bottom left side of the sidebar. Into the READER INFORMATION box you can find information on reader model, serial number and firmware release: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 76 10. Place tags in front of the reader and click on Start Inventory to see the tag information displayed on the main window: For more information on the CAEN RFID Easy Controller for Windows application usage, please refer to the relevant user manual: you can download it from the...
  • Page 77 § Bluetooth and USB communication page 48 to select the USB communication interface using the skID R1280I Configuration Tool. The skID R1280I reader can be connected to a PC using the provided USB cable and it is detected by the PC as an emulated serial port.
  • Page 78 On the main application window click on File → Connect; the connection dialog box will appear. Select RS232 from the Connection Type combo box and the right COM port number from the RS232 Port combo box (COM12 in this example): Click on Connect. EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 79 10. Place tags in front of the reader and click on Start Inventory to see the tag information displayed on the main window: For more information on the CAEN RFID Easy Controller for Windows application usage, please refer to the relevant user manual: you can download it from the...
  • Page 80 Follow the steps below to connect your iOS device to the skID reader using the BLE connection and the Easy Controller App. All the images below were generated using an Apple iphone XR model. Download on your iOS device the CAEN RFID Easy Controller for iOS App (available link at the skID R1280I web page, by clicking on the App Store icon).
  • Page 81 Click on the menu icon: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 82 Click on “CONNECTION”: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 83 Click on “BLE” in the Connection type window: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 84 Select the skID R1280I reader from the list of Bluetooth devices available (in this example the skID with serial number 21210102): EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 85 Once the connection is established the Bluetooth blue LED of the reader turns on (see § Tab. 1.4: Bluetooth and USB/charger LED status table page 10). To start using your skID R1280I reader, click on the menu icon and then on the inventory tab:...
  • Page 86 10. Click on the menu icon to start the Inventory: EASY2READ PROFILE - skID R1280I - Technical Information Manual...
  • Page 87 11. A list of the read tags is shown: 12. Click on the menu icon to stop the inventory. EASY2READ PROFILE - skID R1280I - Technical Information Manual...

  • Page 88: Tab. 5.1: Compatibility Table Hid-Bt/Ble/Usb For Different Os

    If your reader is in the USB communication interface active, follow the instructions given in paragraph § Bluetooth and USB communication page 48 to select the Bluetooth communication interface using the skID R1280I Configuration Tool and then the instructions in chapter § BT-BLE Switching page 101 to switch the reader from BLE (Bluetooth Low Energy) to BT (Bluetooth Classic) or vice-versa.
  • Page 89 Power on the reader. On your Android device, go to Setting and enable the Bluetooth. A list of the Bluetooth available devices is shown: HID PROFILE - skID R1280I - Technical Information Manual...
  • Page 90 Bluetooth pairing and wait until the pairing is complete: Once the connection is established, the Bluetooth blue LED on the skID R1280I reader turns on (see § Tab. 1.4: Bluetooth and USB/charger LED status table page 10) and you can start using your reader.
  • Page 91 Start an inventory cycle by pressing the trigger button. On the text editing App window you will see the EPCs of the tags: Note that, when configured in the HID profile and paired to a device, the skID R1280I reader will automatically reconnect to the same device every time the Bluetooth link is active (skID R1280I switched ON and Bluetooth activated on the host).
  • Page 92 If your reader is in the USB communication interface active, follow the instructions given in paragraph § Bluetooth and USB communication page 48 to select the Bluetooth communication interface using the skID R1280I Configuration Tool and then the instructions in chapter § BT-BLE Switching page 101 to switch the reader from BLE (Bluetooth Low Energy) to BT (Bluetooth Classic).
  • Page 93 Click on Bluetooth: Select the skID R1280I reader (in this example the skID with serial number 20400011): HID PROFILE - skID R1280I - Technical Information Manual...
  • Page 94 The message on the screen “Your device is ready to go!” informs you that the connection is established: The Bluetooth blue LED on the skID R1280I reader turns on (see § Tab. 1.4: Bluetooth and USB/charger LED status table page 10) and you can start using your reader.
  • Page 95 EPCs of the tags (example using Notepad App): Note that, when configured in the HID profile and paired to a device, the skID R1280I reader will automatically reconnect to the same device every time the Bluetooth link is active (skID R1280I switched ON and Bluetooth activated on the host).
  • Page 96 Power on the reader. On your iOS device, go to Setting and enable the Bluetooth. Select the skID R1280I reader from the list of Bluetooth devices available (in this example the skID with serial number 20400008): HID PROFILE - skID R1280I - Technical Information Manual...
  • Page 97 HID PROFILE - skID R1280I - Technical Information Manual...
  • Page 98 Confirm the Bluetooth pairing and wait until the pairing is complete: HID PROFILE - skID R1280I - Technical Information Manual...
  • Page 99 Once the connection is established, the Bluetooth blue LED on the skID R1280I reader turns on (see § Tab. 1.4: Bluetooth and USB/charger LED status table page 10) and you can start using your reader. Launch a text editing App (or any other App accepting keyboard input).
  • Page 100 Start an inventory cycle by pressing the trigger button. On the text editing App window, you will see the EPCs of the tags (example using Note App): HID PROFILE - skID R1280I - Technical Information Manual...

  • Page 101: Tab. 6.1: Compatibility Table Profiles-Bt/Ble/Usb For Different Os

    6 BT-BLE SWITCHING Introduction In the following table it is shown the compatibility between the skID R1280I reader profiles and BT/BLE/USB connection for different Operating Systems (Android, Windows and iOS): Profile ANDROID devices WINDOWS PC iOS devices EASY2READ ۷ ۷...
  • Page 102 Hold down the trigger button and then press the power button (1sec) to power on the device. Release the buttons: the reader beeps and the communication LED should turn green. Run the skID R1280I Image Loader Tool available at the skID R1280I web page and click on next.
  • Page 103 Filename text box upload the R1280I_skID_BLE_firmware.bin file (available at the skID R1280I web page): Press the Load Image button When requested by the tool, power off the reader then press the OK button BT-BLE SWITCHING - skID R1280I - Technical Information Manual...
  • Page 104 Hold down the trigger button and then press the power button (1sec) to power on the device. Release the buttons: the reader beeps and the communication LED should turn green Run the skID R1280I Image Loader Tool available at the skID R1280I web page In the Module combo box select the BLUETOOTH option, in the COM Port the reader COM Port and in the Filename text box upload the R1280I_skID_BT_firmware.bin file (available at the...
  • Page 105 If, by mistake, you entered in the firmware upgrade state, to restore the normal reader operation, disconnect the USB cable and repeat the reset procedure. READER RESET - skID R1280I - Technical Information Manual...
  • Page 106 8 FIRMWARE UPGRADE The skID R1280I firmware upgrade can be performed via USB using the skID R1280I Firmware Upgrade Tool, available for free at the skID R1280I web page. To upgrade the firmware, follow the steps described below: With the reader switched off, connect the R1280I skID reader to a PC using the provided USB cable.
  • Page 107 At the end of procedure, if the upgrade has been successfully performed, you will see the messages reported in the image below: Power off the reader, disconnect the USB cable and then power on the reader again: the reader is ready for normal operation. FIRMWARE UPGRADE - skID R1280I - Technical Information Manual...

  • Page 108: Tab. 9.1: Skid R1280I Technical Specifications Table

    Warning: The RF settings must match the operating country/region to comply with local laws and regulations. The usage of the reader in different countries/regions from the one in which the device has been sold is not allowed. TECHNICAL SPECIFICATIONS - skID R1280I - Technical Information Manual...

  • Page 109: Tab. 9.2: Reader To Tag Link Profiles - Etsi - Arib Regulation

    Miller (M=4); f = 250kHz DSB–ASK; f=160kHz FM0; f = 400kHz DSB–ASK; f=40kHz FM0; f = 40kHz Tab. 9.3: Reader to tag link profiles – FCC Regulation Default value. Default value. TECHNICAL SPECIFICATIONS - skID R1280I - Technical Information Manual...

  • Page 110: Fig. 9.1: Skid Mod. Wr1280Ixeuaa Radiation Pattern H Plane

    Radiation Patterns The radiation patterns of skID R1280I reader are shown in the following figures. Model WR1280IXEUAA (ETSI version) Fig. 9.1: skID Mod. WR1280IXEUAA Radiation pattern H plane Fig. 9.2: skID Mod. WR1280IXEUAA Radiation pattern V plane TECHNICAL SPECIFICATIONS - skID R1280I - Technical Information Manual...

  • Page 111: Fig. 9.3: Skid Mod. Wr1280Ixusaa - Wr1280Ixjpaa Radiation Pattern H Plane

    Model WR1280IXUSAA (FCC version), WR1280IXJPAA (ARIB version) Fig. 9.3: skID Mod. WR1280IXUSAA - WR1280IXJPAA Radiation pattern H plane Fig. 9.4: skID Mod. WR1280IXUSAA - WR1280IXJPAA Radiation pattern V plane TECHNICAL SPECIFICATIONS - skID R1280I - Technical Information Manual...

  • Page 112: Fig. 9.5: Skid R1280I Technical Drawings

    The following drawings show the R1280I skID from different points of view. All dimensions are in millimeters. Fig. 9.5: skID R1280I Technical Drawings Fig. 9.6: skID R1280I Technical Drawings – Front panel view TECHNICAL SPECIFICATIONS - skID R1280I - Technical Information Manual...

  • Page 113: Fig. 9.7: Skid R1280I Technical Drawings - Back Panel View

    Fig. 9.7: skID R1280I Technical Drawings – Back panel view Fig. 9.8: skID R1280I Technical Drawings – Bottom panel view TECHNICAL SPECIFICATIONS - skID R1280I - Technical Information Manual...

  • Page 114: Tab. 9.4: Skid R1280I Battery Life

    Battery Life The following table shows the values of the battery life of the SKID R1280I reader in three different operating states: Status Property Battery Life Not discoverable by BT Power down 50 days Not indication status battery Discoverable by BT...

  • Page 115: Tab. 9.7: Skid R1280I Battery Life - Moderate Use - Scenario C

    8 hours − No vibration − No sound Tab. 9.7: skID R1280I Battery Life – Moderate Use – Scenario C Scenario D: Clothing store inventory In this scenario the reader is switch off between one inventory and another: Configuration...
  • Page 116 EN 61000-3-3:2013+A1:2019 EN 55035:2017+/AC:2019 EN 62368-1:2014+/AC:2015+/A11:2017 See § skID R1280I CE Declaration of Conformity page 118 for the skID R1280I CE Compliance Certificate. Warning: The CE compliance is guaranteed only if the reader is used as described in this manual...
  • Page 117 Any changes or modification not approved by CAEN RFID could void the user authority to operate the equipment. See § skID R1280I FCC GRANT part B and C page 119 and 121 for the skID R1280I FCC Compliance Certificate. Warning: The FCC compliance is guaranteed only if the reader is used as described in this...
  • Page 118 2014/53/EU (RED) and 2015/863/EU (RoHS3) Date: 20/12/2022 Adriano Bigongiari (Chief Executive Officer) On the basis of this declaration, this product will bear the following mark: The compliance is guaranteed only if the reader is used as described in the skID R1280I Technical Information Manual.
  • Page 119 UK Regulation 2016 No. 1206 and UK Regulation 2012 SI 2012/3032 (RoHS). Date: 20/12/2022 Adriano Bigongiari (Chief Executive Officer) On the basis of this declaration, this product will bear the following mark: The compliance is guaranteed only if the reader is used as described in the skID R1280I Technical Information Manual.
  • Page 120 SKID R1280I FCC GRANT part B The compliance is guaranteed only if the reader is used as described in the skID R1280I Technical Information Manual.
  • Page 121 SKID R1280I FCC GRANT part C The compliance is guaranteed only if the reader is used as described in the skID R1280I Technical Information Manual.
  • Page 122 SKID R1280I JAPAN MIC CERTIFICATE...
  • Page 124 The compliance is guaranteed only if the reader is used as described in the skID R1280I Technical Information Manual.
