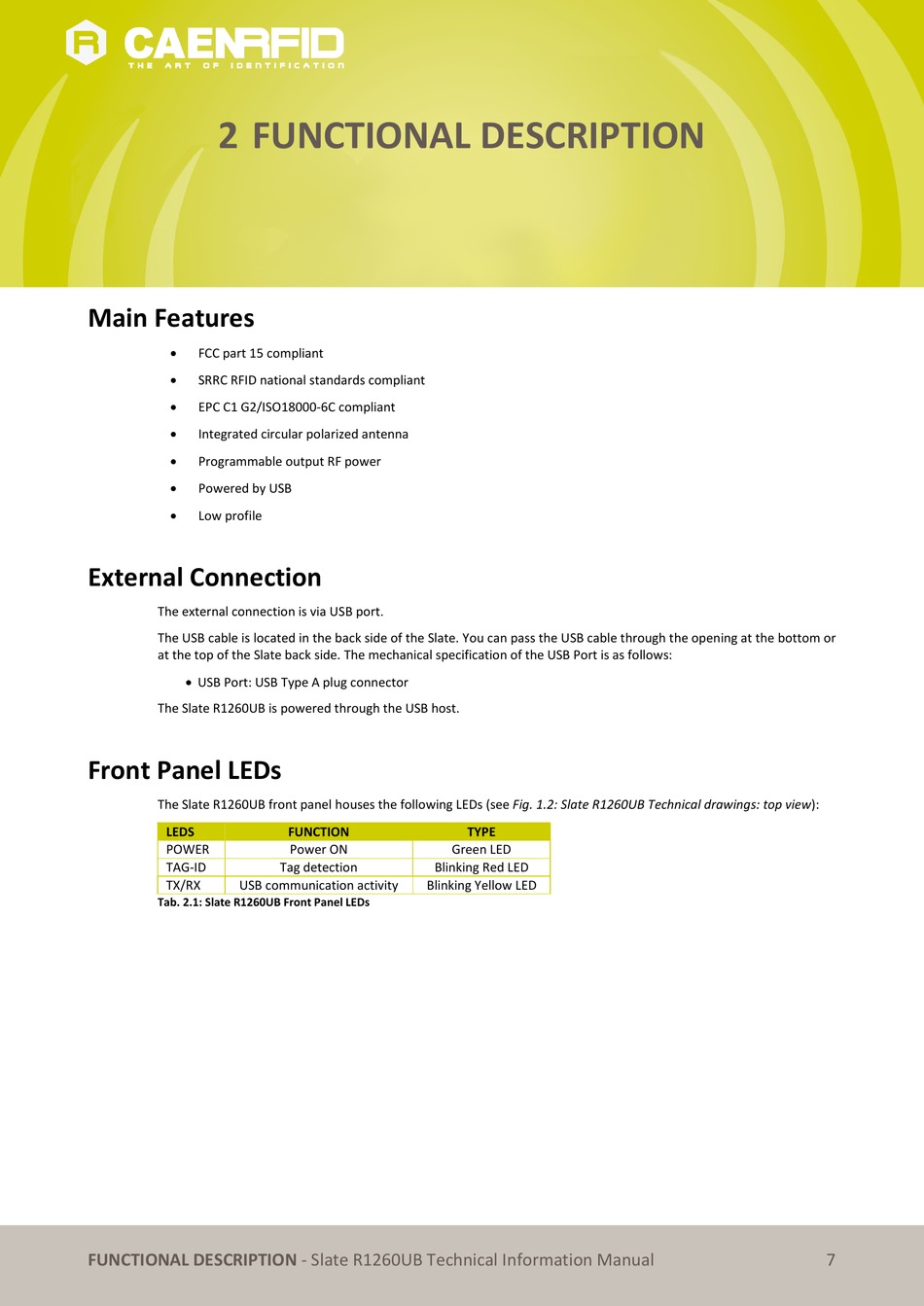

2 FUNCTIONAL DESCRIPTION

Main Features


FCC part 15 compliant
 SRRC RFID national standards compliant
 EPC C1 G2/ISO18000-6C compliant

Integrated circular polarized antenna

Programmable output RF power

Powered by USB

Low profile

External Connection

The external connection is via USB port.
The USB cable is located in the back side of the Slate. You can pass the USB cable through the opening at the bottom or
at the top of the Slate back side. The mechanical specification of the USB Port is as follows:
 USB Port: USB Type A plug connector
The Slate R1260UB is powered through the USB host.

Front Panel LEDs

The Slate R1260UB front panel houses the following LEDs (see Fig. 1.2: Slate R1260UB Technical drawings: top view):
LEDS
POWER
TAG-ID
TX/RX USB communication activity

Tab. 2.1: Slate R1260UB Front Panel LEDs

FUNCTIONAL DESCRIPTION - Slate R1260UB Technical Information Manual
FUNCTION
Power ON Green LED
Tag detection Blinking Red LED
Blinking Yellow LED
TYPE
7
