PBteen Lilac Pre-Assembly Instructions

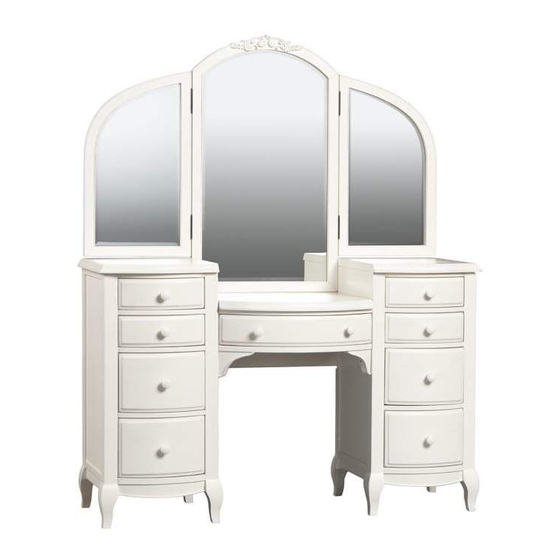

Lilac Vanity
Pre-assembly:
•
Please read all instructions before beginning assembly.
•
Two-adult assembly is recommended.
•
Save all packing materials until assembly is complete to avoid
accidentally discarding smaller parts or hardware.
Parts included:
A – Left Cabinet – 1 pc
(with electric cordset)
D – Center Mirror with
panel – 1 pc
Hardware Included:
G – Hex Bolt – 11 pcs
(φ1/4"x32mm)
J– Allen Key – 1 pc
(φ4x74x29mm)
M – Wooden Knob –10 pcs
(for drawers)
P – Small Wooden Knob –1 pc
(for electric cordset cover)
Tools Required: Phillip Head Screwdriver (not included)
B – Right Cabinet – 1 pc
(without electric cordset)
E – Left Mirror with
hinges – 1 pc
H – Spring Washer – 11 pcs
(φ1/4"x11mm)
K – Phillip Screw – 16 pcs
(#6x15mm for hinge)
N – Long Knob Bolt – 10 pcs
(M4x28mm for big knob)
www.pbteen.com
C – Center Drawer Unit – 1 pc
F – Right Mirror with
hinges – 1 pc
I – Flat Washer – 11 pcs
(φ1/4"x15mm)
L – Mending Plate – 2 pcs
(70x40mm)
O – Short Knob Bolt – 1 pc
(M4x19mm for small knob)
