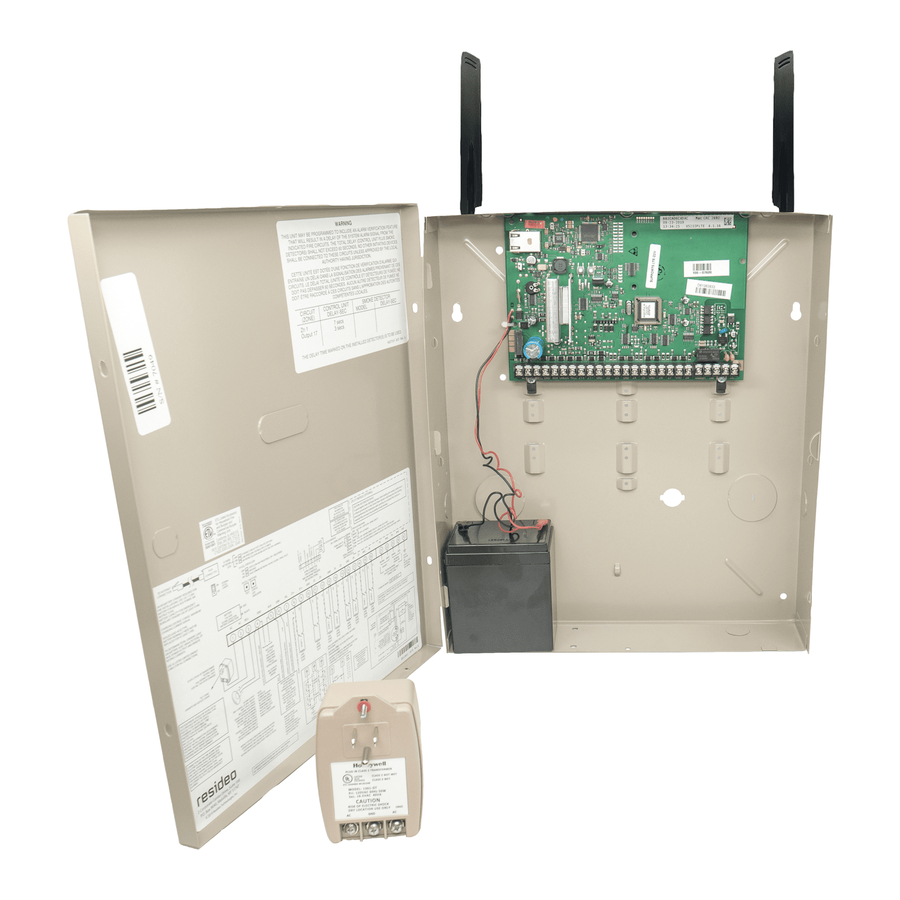

ADEMCO VISTA SERIES
VISTA-21iPLTE/V21SIALTE
Security System
Programming Guide
800-25359V1A 8/19 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ademco Vista Series and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell Home Ademco Vista Series

Summary of Contents for Honeywell Home Ademco Vista Series

  • Page 1 ADEMCO VISTA SERIES VISTA-21iPLTE/V21SIALTE Security System Programming Guide 800-25359V1A 8/19 Rev A...
  • Page 2 RECOMMENDATIONS FOR PROPER PROTECTION The Following Recommendations for the Location of Fire and Burglary Detection Devices Help Provide Proper Coverage for the Protected Premises. Recommendations For Smoke And Heat Detectors With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's (NFPA) Standard #72 noted below.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PROGRAMMING MODE COMMANDS ........................4 DATA FIELD PROGRAMMING FORM ........................5 *29 INTERNAL DEVICE MENU MODE ........................10 Configurable Zone Types Worksheets ........................ 15 *56 ZONE PROGRAMMING MENU MODE ......................16 *58 EXPERT ZONE PROGRAMMING MODE ......................16 WIRELESS KEY PROGRAMMING &...

  • Page 4: Programming Mode Commands

    TO ENTER PROGRAMMING MODE (using an alpha keypad connected to the control): Compatibility: This document applies to systems with microprocessor version 4.21 or higher. A. POWER UP, then press [ ∗ ] and [#] at the same time, within 50 seconds of powering up (this method must be used if Q 98 was used to exit program mode).

  • Page 5: Data Field Programming Form

    DATA FIELD PROGRAMMING FORM Entries apply to the VISTA-21iPLTE/V21SIALTE controls, except where noted, certain fields have special settings for use with SIA installations (indicated by with heavy borders and reverse type throughout for easy identification). V21SIALTE Entry of a number other than one specified will give unpredictable results. Values shown in brackets are factory defaults. SIA Guidelines: Notes in certain fields give instructions for programming the standard VISTA-21iPLTE for False Alarm Reduction.
  • Page 6 ∗43 Partition 1 Primary Acct. No. TO PROGRAM SYSTEM STATUS, & RESTORE REPORT CODES (∗59 thru ∗68, *70 thru ∗76, and ∗89): | | | / | | | | | [FFFFFFFFFF] Enter 4 or 10 digits, as For 3+1 or 4+1 Standard Format: Enter a code in the first box: 1–9, #+10 for 0, #+11 for B, #+12 for C, #+13 for D, #+14 for E, #+15 for F.
  • Page 7 1 = Bell Supervision Processing ∗72 Bypass Restore Rpt Code [00] 4 = AAV UL: must use ADEMCO UVCM module or Honeywell Home AVS ∗73 AC Restore Rpt Code [00] system 8 = Exit Delay Restart/Reset UL: must be disabled ∗74...
  • Page 8 ∗95 ∗172 Ring Count For Downloading Pager Delay Option For Alarms [15] 0 = Disable Station Initiated Download; 0 = none; 1 = 1 minute; 2 = 2 minutes; 3 = 3 minutes 1–14 = number of rings (1–9, # +10 =10, # +11 =11, This delay is for ALL pagers in the system.
  • Page 9 Remote Services . ∗188 Keypad Lockout ∗190 Keypad 2 Device Address 17 [1] [0] 0 = disable 1 = enable Entry 1: Partition/ Enable Part. Sound For Standard Keypad usage Alpha keypad display: Line 1 “User Code Error:” 0 = disable Line 2 “Keys 0-9 Locked”...

  • Page 10: Internal Device Menu Mode

    *29 INTERNAL DEVICE MENU MODE 7720P Emulation Template for Alpha Keypads (for Programming IP and Cell Module Options) This mode programs the Internet connection (IP) and LTE-21V Module configuration, collectively referred to as the Internal Device. NOTE: The Internal Device is automatically set to address 3 and cannot be changed.
  • Page 11 Using ∗29 Menu Mode to Program IP/Cell Options Primary City ID NOTE: Account information is provided by the central station administrator. Press ∗29 while in Data Field Programming mode. See the following prompts. 01-99 (decimal) = 2-digit primary city code Note for remote services: When installing this system for use with Total Connect 2.0, DO NOT USE *29 Primary CS ID...
  • Page 12 Prompt Function IP address information prompts The following prompts appear only if IP or IP&Cell is selected as Internal Device. IMEI Display IMEI xxxxxxxx It is recommended to use dynamically allocated IP addresses, but if fixed IP addresses Only if Cell or IP/Cell enabled. Xxxxxx x are desired, contact your network administrator for the appropriate information.
  • Page 13 IP/Cell Diagnostic Commands (continued) Signal Display for LTE RAT RSRP RSRQ Prompt Function RAT – Radio Access Technology. xxxx xxxx Network Diagnostic Test RSRP – Reference Signal Testing Gateway Only if IP or IP/Cell enabled. Received Power Redir 1 Performs a set of network RSRQ –...
  • Page 14 • Activation ID (AID) and AID CRC numbers (found on the label on the Cell module or on its carton) If you are not signed up for this service, click on “Dealer Signup” from the login screen to gain access to the Honeywell Home web-based programming.

  • Page 15: Configurable Zone Types Worksheets

    Configurable Zone Types Worksheets Configurable zone types 90 and 91 can be programmed via downloader software or from a keypad using data fields*182-*185. Configurable zone types 92 and 93 can only be programmed using the downloader software. Programming Configurable Zone Type options involves making 10 entries in data field *182 for zone type 90 and field *184 for zone type 91, where each entry represents the sum of the values of the various options shown in the tables below.

  • Page 16: Zone Programming Menu Mode

    *56 ZONE PROGRAMMING MENU MODE (press *56 while in Program mode) Each protection zone needs to be programmed with various attributes using ∗56 Zone Programming mode or ∗58 Expert Programming Mode. For each of the following prompts, make the desired entry, followed by the [∗] key to accept the entry. Refer to the Installation and Setup Guide for detailed explanations for each prompt.

  • Page 17: Wireless Key Programming & Templates

    WIRELESS KEY PROGRAMMING & TEMPLATES (press the [D] key from ∗58 Menu mode Summary Screen) This procedure programs the wireless keys, but a key is not active for arming/disarming until it is assigned to a user number (see System Operation section, Assigning Attributes Command in the Installation Instructions).

  • Page 18: Output Device Menu Mode

    *79 OUTPUT DEVICE MENU MODE *80 Menu Mode (continued) (press ∗ 79 while in Programming mode) “C” (if zone number was selected) Use *79 Menu Mode to assign output numbers and map them to ENTER ZN NO. device addresses. Enter the desired zone number, then press [∗] to continue. At the ENTER The system also provides installer-defined output functions, which can be EVENT prompt, enter the zone event that will activate this output (0 = assigned to any of the physical outputs.

  • Page 19: Alpha Descriptor Programming

    ADDING CUSTOM WORDS (up to 10 words) *82 ALPHA DESCRIPTOR PROGRAMMING For custom words, the keys have the following functions: [4] moves cursor one space to the left. PRE-DEFINED DESCRIPTORS [6] moves cursor one space to the right. PROGRAM ALPHA [8] saves the new word in the system's memory.

  • Page 20: Setting Schedules

    SETTING SCHEDULES GROUP NUMBER ( for event 2 user access) (Installer Code + [#] + [6] [4]) 1-8; [∗] to continue. NOTES: PARTITION ( for events 3-7,10,12) • The master code can only access schedules 01-16 and events 00-07. 0 = all partitions; 1 = partition 1; 2 = partition 2; 3 = common •...

  • Page 21: Uploading/Downloading Via The Internet

    SETTING THE REAL-TIME CLOCK The Real-Time Clock must be set before completing the installation. NOTE: All partitions must be disarmed before the Real-Time Clock can be set. 1. Master Code + [#] + [6] [3] 2. Press [∗] when the time/date is displayed. A cursor appears under the first digit of the hour. ∗...

  • Page 22: Zone Type Definitions

    ZONE TYPE DEFINITIONS Zone types define the way in which the system responds to faults in each zone. Type 00 Zone Not Used Type 12 Monitor Zone Program a zone with this zone type if the zone is not used. •...

  • Page 23: Schedules Worksheet

    SCHEDULES WORKSHEET (installer code + [#] + [6] [4]; master code can only access schedules 01-16 and events 00-07 Partition Device No. Group No. Event Stop Time/ Days Repeat Random for “04-06” Start Time/ Days for “01” events: for “02” events: (see list below) events: (1-4)

  • Page 24: Zone Programming Worksheet

    *56 ZONE PROGRAMMING WORKSHEET [default shown in brackets] Hardwire Zone Zn Type Part. Report Rsp. Time Location Type [09] [EOL] [01] [EOL] [03] [EOL] [03] [EOL] [03] [EOL] [03] [EOL] [03] [EOL] [03] [EOL] NOTES: Zone Zn Type Part. Report Input Type Loop Serial No.
  • Page 25 Zone Zn Type Part. Report Input Type Loop Serial No. Location [RF] [RF] [RF] [RF] [RF] [RF] [RF] [RF] [RF] [RF] [RF] [RF] [RF] [RF] [RF] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [BR] [00]...

  • Page 26: Function Key Worksheet

    *57 FUNCTION KEY WORKSHEET Comments Option Function P1 P2 P1 P2 P1 P2 P1 P2 Paging Time Display Arm AWAY Arm STAY Arm NIGHT-STAY Step Arming Device: Device Activation Comm. Test Assign each macro key to only a single partition. †...

  • Page 27: Zone Lists Worksheet

    *81 ZONE LISTS WORKSHEET Fill in the required data on the worksheet below and follow the procedure in the installation manual as you enter the data during the displays and prompts that appear in sequence. NOTE: Record desired zone numbers below, noting that a list may include any or all of system's zone numbers. List No.

  • Page 28: Output Definitions

    *80 OUTPUT DEFINITIONS Fill in the required data on the worksheet below and follow the programming procedure in the installation manual as you enter the data during the displays and prompts that appear in sequence. Notes: 1. For Relays, 4229 and 4204 devices are programmed in *79, *80, and *81 modes. 2.
  • Page 29 Output Activation Type and Detail Partition Event (for zone list/activated by) Action Output Device Function Activated by Zone List Zone Type Zone No. Number By Zone List By Zone No. 0 = off Number Type Number 1 = close 2 0=delete (ZL) (ZT)

  • Page 30: 5800 Series Transmitter Input Loop Identification

    5800 SERIES TRANSMITTER INPUT LOOP IDENTIFICATION All of the transmitters illustrated have one or more unique factory assigned input (loop) ID numbers. Each of the inputs requires its own programming zone (e.g., a 5834-4's four inputs require four programming zones). For information on any transmitter not shown, refer to the instructions accompanying that transmitter for details regarding loop numbers, etc.

  • Page 31: Table Of Device Addresses

    TABLE OF DEVICE ADDRESSES This Device Uses Address Reports as †† Enabled By… RF Receiver ∗56 zone programming: input device type entry AUI 1 (touchscreen) automatic if AUI enable field *189 enabled for AUI 1 AUI 2 (touchscreen) automatic if AUI enable field *189 enabled for AUI 2 AUI 3 (touchscreen) automatic if AUI enable field *189 enabled for AUI 3 AUI 4 (touchscreen)

  • Page 32: Federal Communications Commission (Fcc) Part 15 Statements

    FEDERAL COMMUNICATIONS COMMISSION (FCC) PART 15 STATEMENTS The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. CLASS B DIGITAL DEVICE STATEMENT This equipment has been tested to FCC requirements and has been found acceptable for use.
  • Page 33 WARNING - THE LIMITATIONS OF THIS ALARM SYS TEM While this System is an advanced design security system, it does not offer guaranteed protection against burglary, fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons. For example: •...
  • Page 34 NOTES – 34 –...
  • Page 35 NOTES – 35 –...
  • Page 36 MyWebTech Warranty Patents For patent information, see https://www.resideo.com/patent The Honeywell Home Trademark is used under license from Honeywell International Inc. This product is manufactured by Resideo Technologies, Inc. 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 ...
