Honeywell Home PROSiXFOB Installation And Setup Manual

This bi-directional wireless key fob (wireless key) is
intended for use with Honeywell Home controls that
support PROSiX™ series devices.
Press and hold each button about 2 seconds to
activate. (For two-button Panic, press and hold both
buttons for 2 seconds.)
ENROLL AND PROGRAM THE PROSIXFOB
Set the control in Programming mode, when prompted:
1. Press and hold the top two buttons for about two seconds to activate the enrollment process.
The LEDs alternately flash green during enrollment (up to about 20 seconds). The device sends its unique MAC ID
2.
and Services information to the controller.
NOTE: Enrollment time varies depending on the signal strength between the device and the controller.
3. The LEDs light solid green for 3 seconds and the PROSiXFOB emits a chirp to confirm enrollment.
NOTE: If enrollment is not confirmed, press and hold the top two buttons for two seconds again to restart the
enrollment process.
4. Use program menu to change default key functions as desired.
5. Assign a User Number to the key fob.
Follow instructions in the Controller's programming guide to program the PROSiXFOB services.
After enrolling, update the PROSiXFOB firmware (via the Controller) to ensure the latest version is used. See the
Controller's instructions.
You must enroll the device in the control. Refer to the control's programming instruction for detailed procedures.
NOTE: Once enrolled in a system, the PROSiXFOB cannot be used with another controller until it is removed from the current
controller. When removed from a system, the key fob will revert to factory default settings.
BATTERY REPLACEMENT
When the battery is low, the LEDs do not flash during transmission. To replace the battery:
1. Remove the screw from the back housing and use a screwdriver to gently separate the front and back housings.
2. Use a screwdriver to carefully remove the battery.
3. Wait 10 seconds or press a key fob button for 2 seconds to ensure full power discharge.
4. Insert a new Lithium, 3V, 210mAh battery as shown. Recommended replacement battery:
Maxell CR2032 or Duracell DL2032
5. Replace the front housing and secure the housings with the cover screw.
BATTERY CAUTION: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212°F (100°C) or
incinerate. Dispose of used batteries properly. Keep away from children.

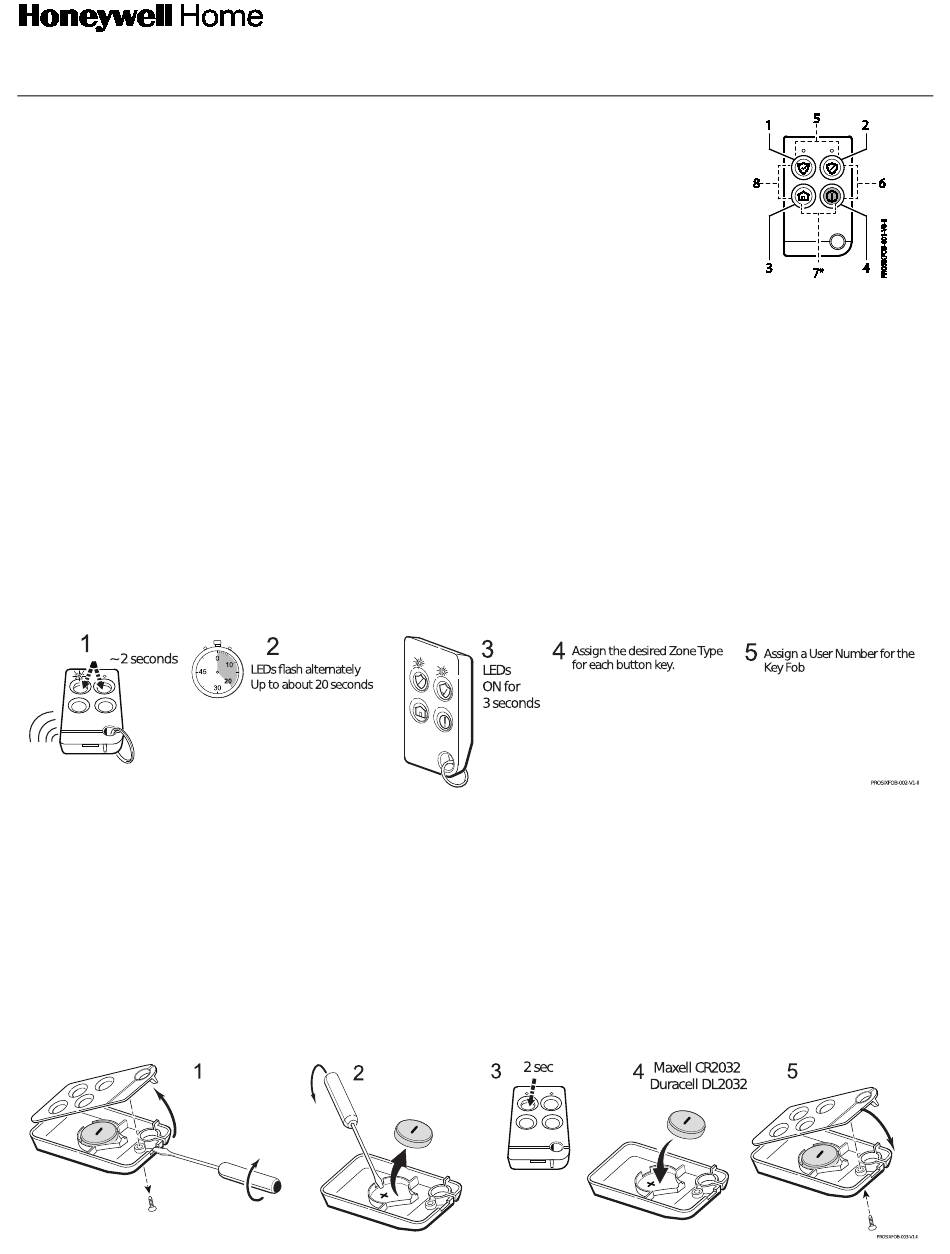

Installation and Setup Guide
BUTTON KEYS 1-8
(Corresponding services are seen
when programming the key fob
through the programming menu.)
*SIA NOTE: SIA requires 2-button press for
panic functions.

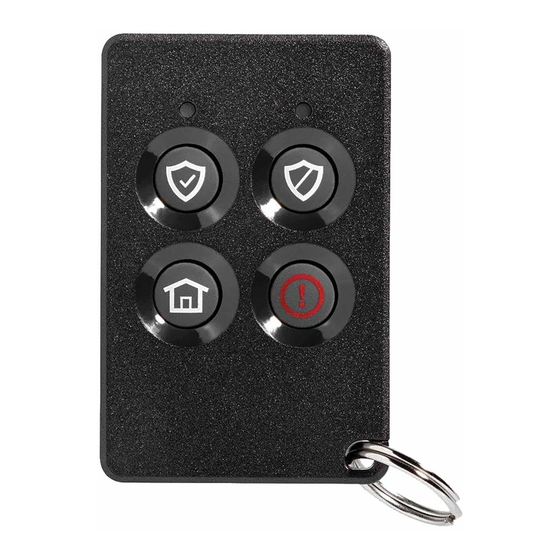

PROSiXFOB
Wireless Key Fob
