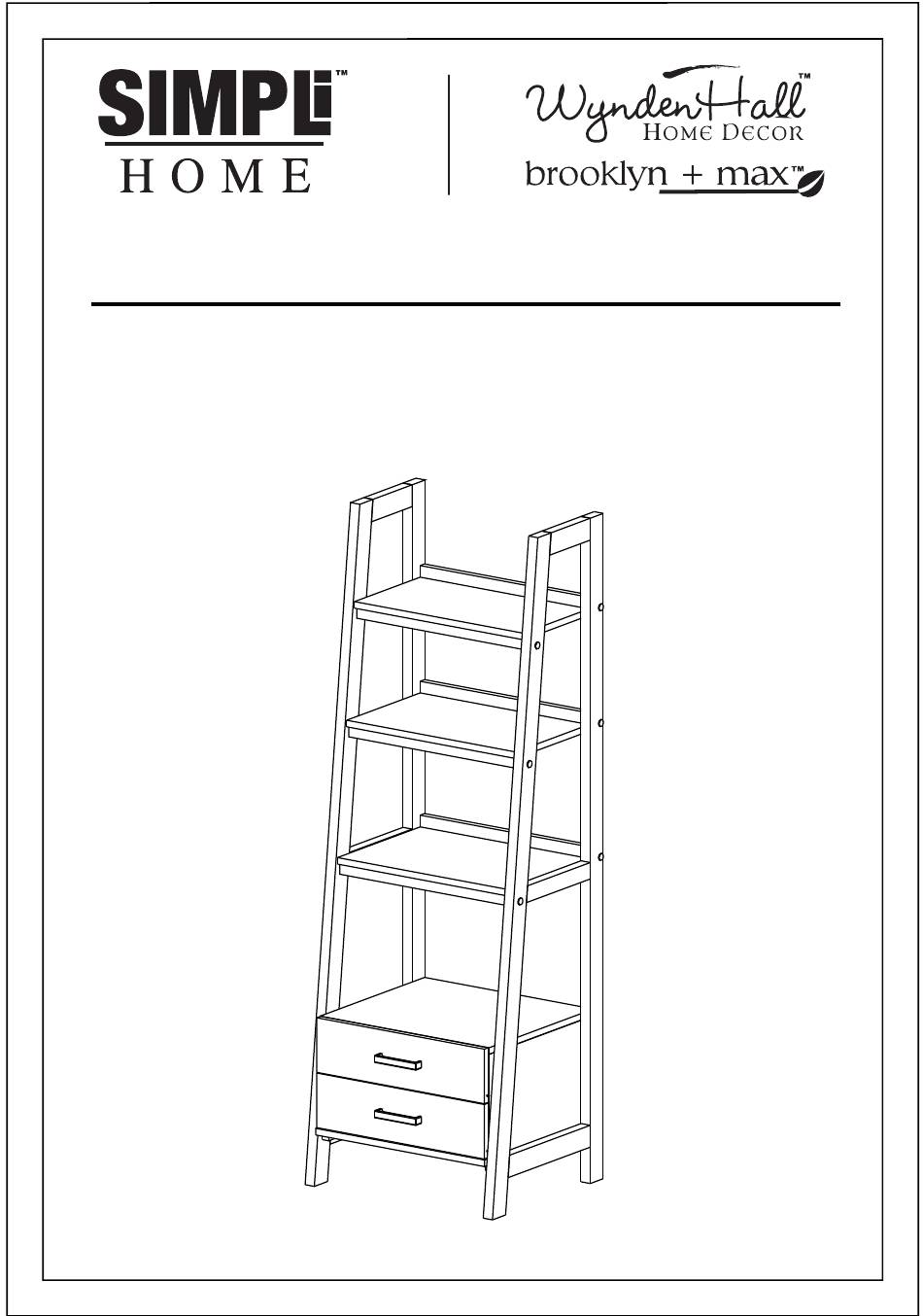

- Page 1 SAWHORSE / HAWKINS / SPOKANE LADDER STORAGE SHELF MODEL # 3AXCSAW-06 1/18...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/18...
- Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/18...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 5: Pre-Assembly Information
MODEL # 3AXCSAW-06 PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE SHELF SHELF QTY 1 PAIR QTY 1 QTY 1 SHELF TOP SHELF CABINET SIDE PANEL QTY 1 QTY 1 QTY 1 PAIR BOTTOM SHELF CABINET BACK PANEL DRAWER FRONT QTY 1 QTY 1 QTY 2 DRAWER BACK DRAWER SIDE... -
Page 6: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # 3AXCSAW-06 HARDWARE DESCRIPTION ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY BOLT & CROSS NUT M6 x 30 mm M6 x 50 mm M6 X 50 mm QTY 10 QTY 4 QTY 12 SETS ALLEN KEY SCREW WOOD BOLT CAP ALLEN KEY M6 x 30 mm... - Page 7 MODEL # 3AXCSAW-06 COMPONENTS – KEY DIAGRAM 7/18...
- Page 8 ASSEMBLY MODEL # 3AXCSAW-06 STEP 1 1. Attach four Cam Lock Pins 9 to back of Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides K . 3. Insert two Cam Locks 9 into pre-drilled holes on each Drawer Side K . 4.
- Page 9 ASSEMBLY MODEL # 3AXCSAW-06 STEP 3 1. Align Drawer Back J with Drawer Sides K . 2. Attach back using two Allen Key Screws 4 through pre-drilled holes on each Side K . 2. Use Allen Key 6 to tighten screws. Do not over-tighten. STEP 4 1.
- Page 10 ASSEMBLY MODEL # 3AXCSAW-06 STEP 5 1. Attach Top Shelf Cabinet E to Side Panels F using four Allen Key Bolts 1 . 2. Use Allen Key 6 to tighten Bolts. Do not over-tighten. 10/18...
- Page 11 ASSEMBLY MODEL # 3AXCSAW-06 STEP 6 1. Attach Bottom Shelf Cabinet G to Side Panels F using four Allen Key Bolts 2 . 2. Use Allen Key 6 to tighten Bolts. Do not over-tighten. 11/18...
- Page 12 ASSEMBLY MODEL # 3AXCSAW-06 STEP 7 1. Attach Back Panels H to back of assembled ( E,F,G ) using Phillips Screws Round Head 7 into pre-drilled guide holes. 2. Use Phillips screwdriver to tighten screws. Do not over-tighten. 12/18...
- Page 13 ASSEMBLY MODEL # 3AXCSAW-06 STEP 8 1. Attach Shelves B C D to Side A . Insert Cross Nuts 3 into pre-drilled holes in Shelves B C D with the slot facing out. Use a flathead Screwdriver to turn it to align with the Bolts 3 . Repeat on the opposite side.
- Page 14 ASSEMBLY MODEL # 3AXCSAW-06 STEP 9 1. Attach Shelves B C D to other Side A . Insert Cross Nuts 3 into pre-drilled holes in Shelves B C D with the slot facing out. Use a flathead Screwdriver to turn it to align with the Bolts 3 . Repeat on the opposite side.
- Page 15 ASSEMBLY MODEL # 3AXCSAW-06 STEP 10 1. Insert twelve Wood Bolt Caps 5 into exposed bolt holes on Sides A . 15/18...
- Page 16 ASSEMBLY MODEL # 3AXCSAW-06 NOTE: Injuries and damage can occur from furniture tip-over. It is important to use the safety bracket included. If the tipping restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP 11 NOTE: The screwdriver is not included in the hardware pack.
-
Page 17: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 18 Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
