Simpli Home WyndenHall brooklyn + max 3AXCSKY-02 Manual

Skyler / rhonda / glenna, square coffee table
Hide thumbs

Advertisement

Quick Links

Download this manual
SKYLER / RHONDA / GLENNA
SQUARE COFFEE TABLE
MODEL # 3AXCSKY-02
1/13

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall brooklyn + max 3AXCSKY-02 and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home WyndenHall brooklyn + max 3AXCSKY-02

Summary of Contents for Simpli Home WyndenHall brooklyn + max 3AXCSKY-02

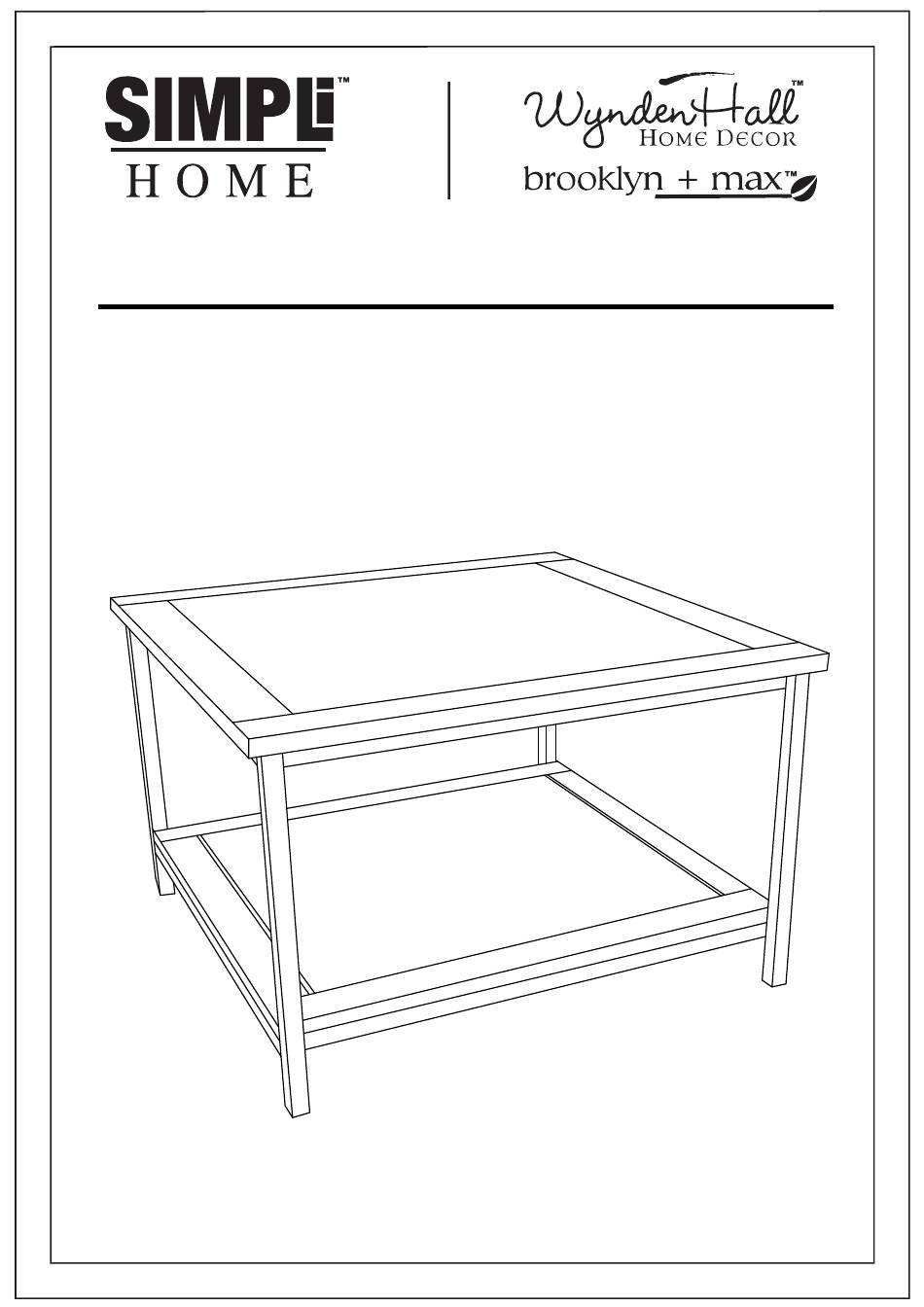

  • Page 1 SKYLER / RHONDA / GLENNA SQUARE COFFEE TABLE MODEL # 3AXCSKY-02 1/13...
  • Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/13...
  • Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/13...

  • Page 4: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # 3AXCSKY-02 PARTS DESCRIPTION QTY 1 BOTTOM SHELF QTY 2 QTY 1 PRE-ASSEMBLY INFORMATION MODEL # 3AXCSKY-02 HARDWARE DESCRIPTION ALLEN KEY BOLT M6 X 18 mm ALLEN KEY QTY 1 QTY 28 WASHER Ø14 mm LOCK WASHER QTY 12 QTY 16 NEED HELP? For help with assembly or if you are missing a part,...
  • Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCSKY-02 6/13...
  • Page 7 ASSEMBLY MODEL # 3AXCSKY-02 STEP 1 1. Align Leg B to Top A by matching the letters P1 to P1 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Top A and Leg B (front and back of Leg).
  • Page 8 ASSEMBLY MODEL # 3AXCSKY-02 STEP 2 1. Align Leg B to Bottom Shelf C by matching the letters P3 to P3 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Bottom Shelf C and Leg B (front and back of Leg).
  • Page 9 ASSEMBLY MODEL # 3AXCSKY-02 STEP 3 1. Align other Leg B to Top A and Bottom Shelf C by matching the letters P2 to P2 and P4 to P4 . 9/13...
  • Page 10 ASSEMBLY MODEL # 3AXCSKY-02 STEP 4 1. Align other Leg B to Top A by matching the letters P2 to P2 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Top A and Leg B (front and back of Leg).
  • Page 11 ASSEMBLY MODEL # 3AXCSKY-02 STEP 5 1. Align Leg B to Bottom Shelf C by matching the letters P4 to P4 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Bottom Shelf C and Leg B (front and back of Leg).

  • Page 12: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
  • Page 13 Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
