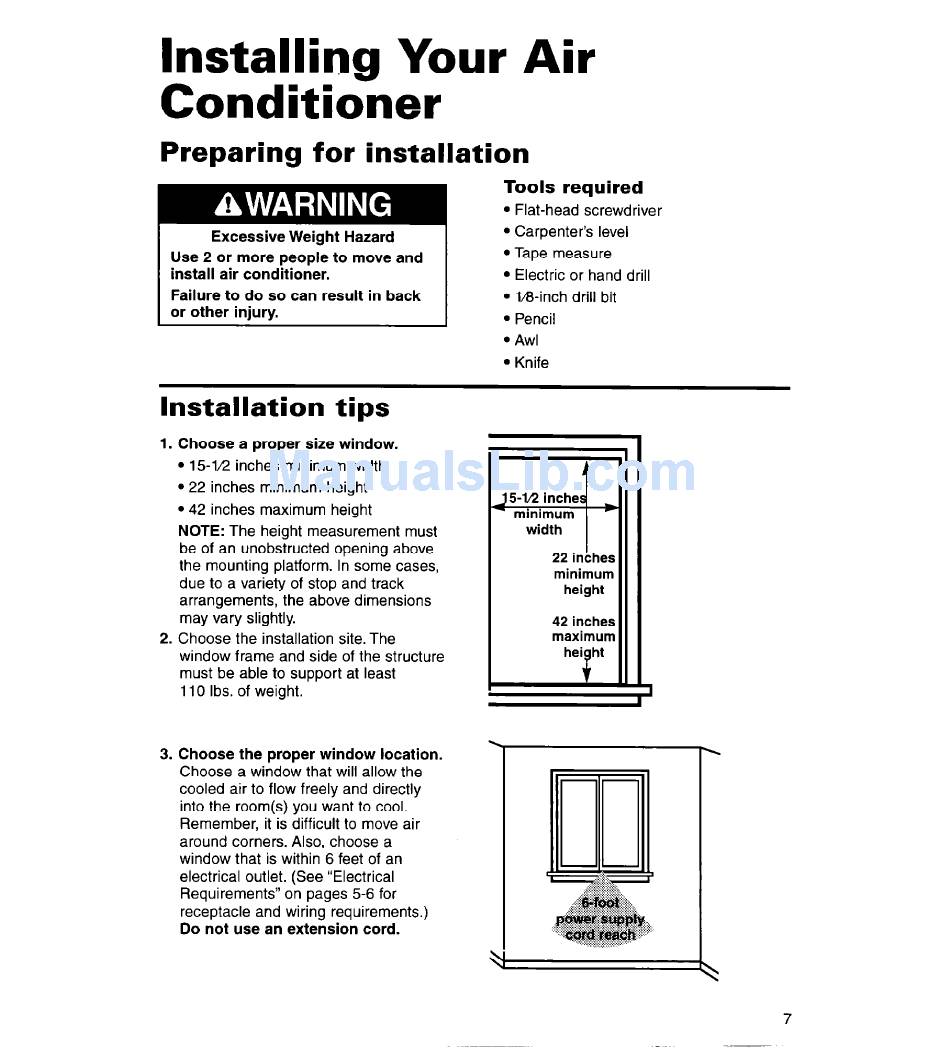

Installing
Your Air
Conditioner
Preparing
for installation
Excessive
Weight Hazard
Use 2 or more people to move and
install
air conditioner.
Failure to do so can result in back
or other injury.
Tools
required
l
Flat-head screwdriver
l
Carpenter's
level
l
Tape measure
l
Electric or hand drill
l
M-inch
drill bit
l
Pencil
l
Awl
l
Knife
Installation
tips
1. Choose a proper size window.
l
15-W inches minimum width
l
22 inches minimum height
l
42 inches maximum height
NOTE: The height measurement
must
be of an unobstructed
opening above
the mounting platform. In some cases,
due to a variety of stop and track
arrangements,
the above dimensions
may vary slightly.
2. Choose the installation
site. The
window frame and side of the structure
must be able to support at least
110 Ibs. of weight.
3. Choose the proper window
location.
Choose a window that will allow the
cooled air to flow freely and directly
into the room(s) you want to cool.
Remember, it is difficult to move air
around corners. Also, choose a
window that is within 6 feet of an
electrical outlet. (See "Electrical
Requirements"
on pages 5-6 for
receptacle and wiring requirements.)
Do not use an extension
cord.
A
15-W
inches
minimum
width
22 inches
minimum
height
42 inches
maximum
