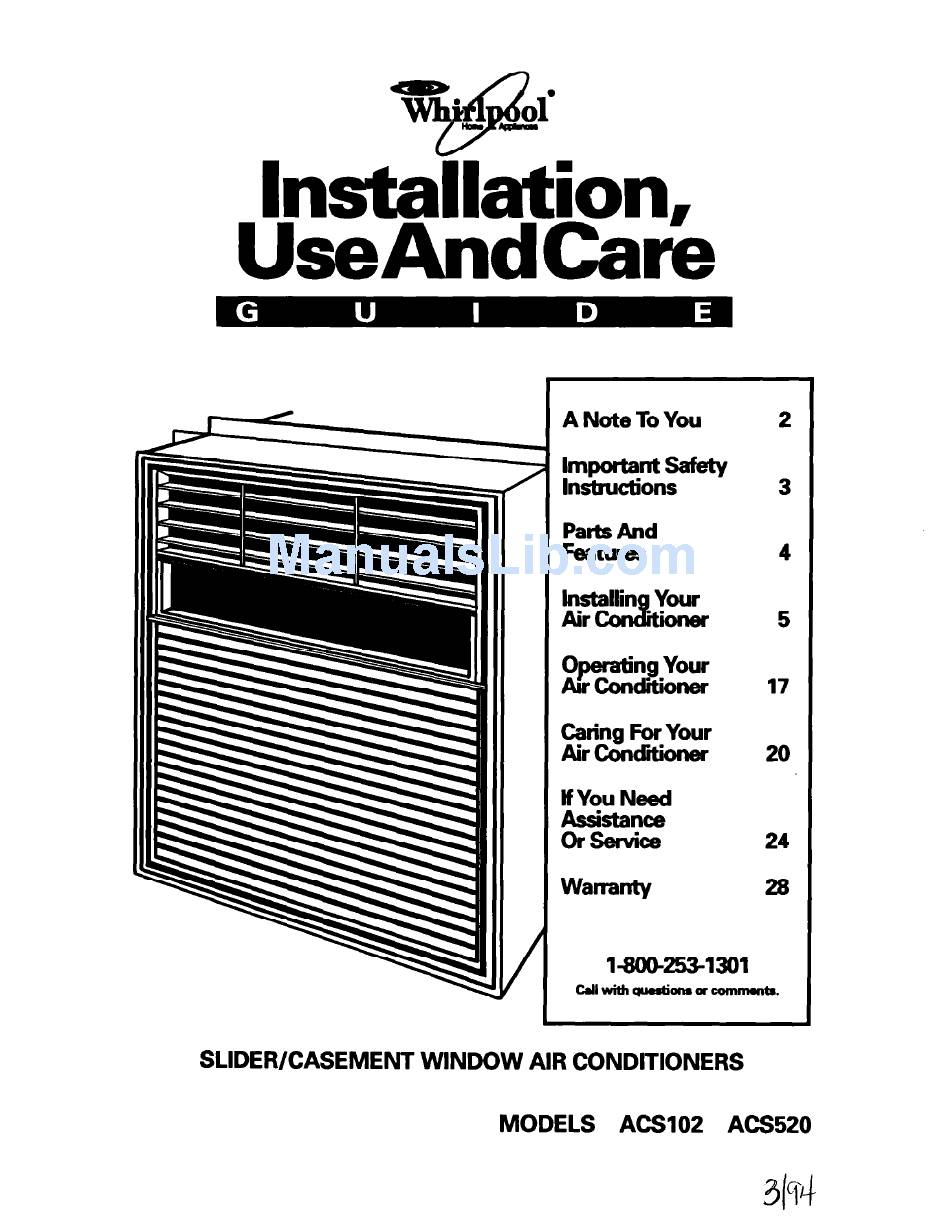

- Page 1 lnstakrtion, UseAndCare SLIDER/CASEMENT WINDOW AIR CONDlTlONERS ANoteToYw IFZZ? Parts And Features lnstallin Your Mordtioner Operating Your Au conditioner c&i&F&~ If You Need $$$=F~ Warranty laxw53-1301 cdlwllhqlbeslion8acommonts. MODELS ACSIOZ ACS520...
-
Page 2: A Note To You
A Note To You Thank you for buying a WhirlpooP You have purchased a quality, worldclass into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have developed this Use and Care Guide. lt is full of valuable information on how to operate and maintain your appliance properly and safely. -
Page 3: Safety Instructions
Important safety instructions Read all instructions before using your air conditioner. Complete the installation requirements as described in the Installation Instructions. Do not allow children to operate or play with the air conditioner. Do not operate the air conditioner with the front panel removed. - Page 4 PartsAnd This section contains captioned illustrations of your appliance. Use them to become familiar with where all parts and features are located and what they look like. Air direction thumb wheel ROIlbOVdO lilb (behind air Intake panel) Features COIIBOI COlltTOl tisumu Asoistmco Centu lobphone number...
-
Page 5: In This Section
Installing Your Air Condiiioner In This Section Mwttng m nquirsmnb PropsrIng fur instdauu4l ........Proper installation of your air conditioner is important for proper operation and best cooling results. -
Page 6: Preparing For Installation
Electrical connection Electrical ground is required on this appliance. Recommended groundlng method For your personal safety, this appliance must bs grounded. This air conditioner is equipped with a power supply cord with a 3prong grounding plug. To minimize possible electrical shock hazard, the cord must be plugged into a mating 3prong grounding-type wall receptacle, grounded in accordance with the National... - Page 7 1. Unpack the installation kft. Make sure you have all the necessary parts. In~tdatkm kit contenta: A Platform (1) B. Adjustment bolt (1) C. Screw - #10 x 2%’ flat-head (2) Screw - #lO x 1%’ pan-head (2) Screw - #lO x 1’ pan-head (2) D.
- Page 8 2. Choore a proper size window. 15% inches minimum width 18% inches maximum width (for casement windows) 21%e inches minimum height (with window panel retainer) 20% inches minimum height (window panel retainer removed) 40 inches maximum height NOTE: The height measurement must be of an unobstructed opening above the mounting platform.
- Page 9 2. Men~re and lightly mark e line 8VAnches from the right window jamb. NOTE: lf any sash stop protrudes more than 1 inch from the side window jambs, the 8W4nch measurement must be increased accordingly. Screen and storm window frames may also require adjustments to the measure- ment.
- Page 10 6. Place platform aeeembly, with platform tab against inside of window track, and attach it to the window jamb. Use appropriate length screws (item C on page 7). 7. Adjust the platform aeeembfy so that the outside edge is %-inch lower than the inside edge.
- Page 11 12. Cut l kle channel eeal into 2 equal lengths. Remove the protective backing and apply it to the rear side of the cabinet side channels, starting just below the panel frame assem- bly. Pinch off excess length so the seal is even with the bottom of the cabinet side channel.
- Page 12 Slide the inner window each firmly against the side of the cabinet. Make sure not to peel the seal strips from the window track and cabinet side channels. If the panel frame does not fit snugly to the inner window sash, secure the panel frame to the sash with #8 x %-inch wood screws or #8- 32 x %-inch self-threading screws.
- Page 13 Installing in a casement NOTE: Open the window the maximum amount to allow for clearance of the cabinet. The crank handle should be removed to allow the platform to be fastened to the jamb. If the window cannot open far enough (more than 15% inches) for the cabinet to clear the window, remove the window entirely by drilling out the rivets.
- Page 14 5. Adjust the piatforrn ueembfy so that the rear of the air conditioner will be %-inch lower than the front. This ensures proper water drainage from the air conditioner. NOTE: A projection below the base of the air conditioner will require the rear of the platform to be %a-inch lower than the front to create the 3/ibinch slat from front to rear.
- Page 15 10. Cut ride channel eeal into 2 equal lengths. Remove the protective backing and apply it to the rear side of the cabinet side channels, starting just below the panel frame assem- bly. Pinch off excess length so the seal is even with the bottom of the cabinet side channel.
- Page 16 13. Drill two %-inch diameter pilot holee in the top window jamb in line with the partially plugged holes in the panel frame. Secure the panel frame to the window jamb wfth two #8-32 x %-inch self-threading screws. lf additional holding is necessary, two screws may be used on the sides of the panel frame as well.
-
Page 17: Operating Your Air Conditioner
Operating Your Air Conditioner In This Section Stmrting your air conditionw ......17 thing UIO exhaust vent cunlrol ..... . . 16 In order to obtain the best possible results from your air conditioner, it is important that you operate it properly. -
Page 18: Using The Exhaust Vent Control
Using the exhaust The Exhaust Vent Control draws stale or smoky air from the room or circulates existing rmrn air. To exhauot room air: 1. Set Exhaust Control to OPEN. 2. Set Fan Control to desired setting. If no cooling is desired, set Fan Control to FAN ONLY. - Page 19 Adjusting the air direction The air direction louvers control the airflow direction. Your air conditioner can direct the airflow in 4 directions - up, down, left or right. To direct airflow up or down: Tilt the louvers up or down with the tabs located at the outside edges of louvers.
-
Page 20: Caring For Your Air Conditioner
This section will tell you how to clean your air conditioner and perform annual maintenance. You can always call your authorized Whirlpool@ servicing dealer for an annual check-up. Cleaning the air intake Unplug the power cord. -
Page 21: Cleaning The Air Filter
Cleaning the air filter The fifter is cleanable. A clean filter helps remove dust, lint and other particles from the air. Check every two weeks to see if fifter needs cleaning. 1. Press down the top of the air intake panel to release it from the front panel frame. - Page 22 1. Unplug the power cord. 2. Remove the air intake panel. (See “Cleaning the air intake paner on page 20.) 3. Remove 2 Phillips-head screws holding front panel frame in place. Then remove front panel frame the same way you removed the air intake panel.
-
Page 23: Normal Operating Sounds
Understanding normal When your air conditioner is operating normally, you will hear sounds such as: Droplets of water hitting the condenser, causing a “pinging’ or “clicking” sound. Water droplets help to cool the condenser. Air movement from the fan, especially on high fan speed settings. -
Page 24: If You Need Assistance
If You Need Assistance service This section is designed to help you save the cost of a service call. Part 1 outlines possible problems, their causes, and actions you can take to solve each problem. Parts 2 and 3 tell you what to do if you still need assistance or service. - Page 25 Whirlpool appliance. To locate FSP replacement parts in your area, refer to Step 3 above or call the Whirlpool Consumer Assistance Center number in Step 2. 5. lf you are not satisfied...
