INSTALLATION GUIDE
SCXI -1346 S
™
C
A
ABLE
DAPTER
Introduction
™
™
LabVIEW
, Measure
, National Instruments
names mentioned herein are trademarks or trade names of their respective companies.
320722B-01
© Copyright 1994, 2000 National Instruments Corp. All rights reserved.
HIELDED
This guide describes how to connect and configure a multi-chassis
SCXI system using the SCXI-1346 shielded multi-chassis cable adapter.
Using the SCXI-1346, you can connect a multi-chassis SCXI system to
your data acquisition (DAQ) device. The SCXI-1346 connects any 68-pin
E Series DAQ device, excluding 61XXE devices, to any SCXI module,
excluding the SCXI-1127, SCXI-1128, SCXI-1190, and SCXI-1191.

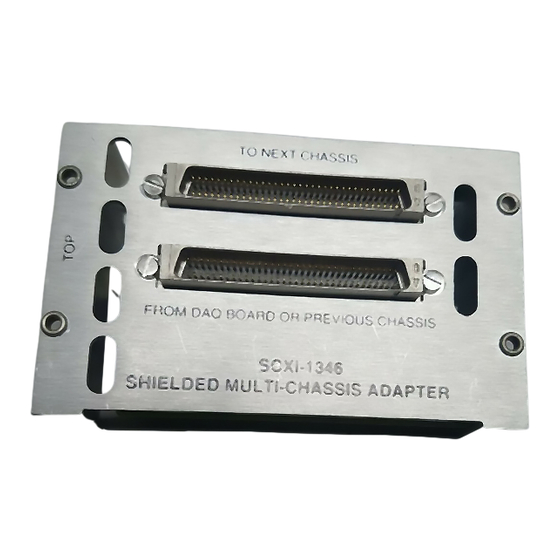

The SCXI-1346 is a connector assembly with four connectors:
•
A 68-pin male connector on the front panel of the adapter, labeled
TO NEXT CHASSIS
•
A 68-pin male connector on the front panel of the adapter, labeled
FROM DAQ BOARD OR PREVIOUS CHASSIS
•
A 50-pin, male breakout connector on the printed-circuit board of the
adapter
•
A 50-pin, bracket-mounted female connector on the rear of the adapter
™
™
™
, ni.com
, PXI
, and SCXI
M
-C
ULTI
HASSIS
™
are trademarks of National Instruments Corporation. Product and company
November 2000
Advertisement
Related Manuals for National Instruments SCXI 1346
Summary of Contents for National Instruments SCXI 1346
- Page 1 , ni.com , PXI , and SCXI are trademarks of National Instruments Corporation. Product and company names mentioned herein are trademarks or trade names of their respective companies. 320722B-01 © Copyright 1994, 2000 National Instruments Corp. All rights reserved. November 2000...
- Page 2 TO NEXT CHASSIS FROM DAQ BOARD OR PREVIOUS CHASSIS SCXI-1346 SHIELDED MULTI-CHASSIS ADAPTER 1 68-Pin Male Connector, 2 68-Pin Male Connector, FROM DAQ BOARD TO NEXT CHASSIS OR PREVIOUS CHASSIS Figure 1. Front of SCXI-1346 1 50-Pin, Bracket-Mounted 2 50-Pin, Male Breakout Connector Female Connector Figure 2.
-
Page 3: What You Need To Get Started
Double-click the Measurement & Automation Explorer (MAX) icon on your desktop. Expand Devices and Interfaces by left-clicking the + symbol. © National Instruments Corporation SCXI-1346 Shielded Multichassis Cable Adapter... - Page 4 Left-click the Test Resources button in the properties window. The following dialog box should appear. Figure 4. Successful Test Window Note If the dialog box shown in Figure 4 does not appear, refer to the National Instruments website for troubleshooting tips. ni.com/support The device must pass the resources test before you can continue configuring your SCXI system.
- Page 5 SCXI-1346 with the 50-pin male connector on the rear of the appropriate SCXI module. (The appropriate module was determined in step 3 of Installing Modules in Your SCXI Chassis, located earlier in this guide.) © National Instruments Corporation SCXI-1346 Shielded Multichassis Cable Adapter...
- Page 6 Using the four screws provided with the SCXI-1346 multi-chassis adapter kit and a flathead screwdriver, fasten the multi-chassis adapter to the rear of the SCXI chassis. Repeat steps 1 and 2 for each SCXI chassis in the system, excluding the last SCXI chassis in the chain. 1 SCXI-1000 or SCXI-1001 Chassis 4 Shielded Cable Connecting to FROM DAQ BOARD 2 SCXI-1346 Cable Adapter...
- Page 7 10. Connect the 68-pin shielded cable to the next to the last chassis in the slot labeled TO NEXT CHASSIS. 11. Connect the other end of the cable to the SCXI-1349 in the last chassis. © National Instruments Corporation SCXI-1346 Shielded Multichassis Cable Adapter...
- Page 8 1 68-Pin E Series DAQ Device 3 Shielded Cable Connected to SCXI-1346 Cable Adapter 2 SCXI-1000 or SCXI-1001 Chassis 4 Shielded Cable Connected to SCXI-1349 Cable Adapter Figure 6. Complete SCXI Multi-Chassis System Setting the Chassis Address Select a unique address for each chassis in the system. Select the addresses in ascending order, starting with the chassis cabled directly to the DAQ device (chassis ID n).
- Page 9 SCXI-1000 POWER RESET SCXI MAINFRAME Figure 7. Chassis Address Switches © National Instruments Corporation SCXI-1346 Shielded Multichassis Cable Adapter...
- Page 10 Table 1 indicates the value each address switch represents when it is in either the on or off position. Table 1. Address Switch Number for Each Switch Position Address Switch Number On Position Off Position For example, if switch numbers 1 and 3 are set in the on position and the others are not, the chassis address is 5.
- Page 11 Figure 8. Devices and Interfaces Window If your device does not show up in the list, refer to the National Instruments website Note for troubleshooting tips. ni.com/support Insert a new SCXI chassis (SCXI-1001 or SCXI-1000) under Devices and Interfaces by right-clicking over Devices and Interfaces and selecting Create New from the menu.
- Page 12 Figure 9. Choosing the Chassis Type A window appears allowing you to choose the chassis ID and chassis address. Choose the lowest chassis ID available. The lowest chassis ID available is 1 if no other SCXI chassis are currently configured. For each subsequently cabled SCXI chassis, choose chassis ID values in ascending order from n.
- Page 13 Figure 10. Setting the Chassis ID and Address Choose Yes to allow the software to automatically detect the modules in the chassis. Click Next. Figure 11. Auto-Detecting Modules © National Instruments Corporation SCXI-1346 Shielded Multichassis Cable Adapter...
- Page 14 Choose the 68-pin E Series DAQ device you are using to communicate with the SCXI chassis, and click Next. Figure 12. Selecting the DAQ Device The next window shows the modules that were detected in the SCXI chassis. From the list, select the module that is cabled to the SCXI chassis cable adapter.
- Page 15 11. Right-click the name of the SCXI chassis that was added, and choose Test from the menu. The following dialog box should appear. Figure 14. Successful Test Window Note If the dialog box shown above does not appear, refer to the National Instruments website for troubleshooting tips. ni.com/support 12.
- Page 16 1 SCXI Module 4 Shielded Cable Connected to SCXI-1349 Cable 2 Shielded Cable Connected to SCXI-1346 Cable Adapter Adapter 5 PXI-1010 Combination Chassis 3 SCXI-1000 or SCXI-1001 Chassis 6 68-Pin PXI DAQ Device Figure 15. Multi-Chassis System with a PXI-1011 and Two External SCXI Chassis Addressing specific channels in a system with both SCXI chassis, and PXI-1010 or PXI-1011 combination chassis is slightly different than systems with only SCXI chassis and is covered in the...
- Page 17 Address the internal chassis as ob0 ! scy ! mdz ! channels Address the external chassis that is cabled directly to the PXI DAQ device front connector as ob0 ! scy+1 ! mdz ! channels © National Instruments Corporation SCXI-1346 Shielded Multichassis Cable Adapter...
- Page 18 Address each subsequent chassis in ascending order as obn-1 ! where n is the number of external scy+n ! mdz ! channels SCXI chassis. Chassis Address PXI-1010 or ob0 ! scy ! mdz ! channels PXI-1011 Chassis First External ob0 ! scy+1 ! mdz ! channels SCXI Chassis Second External ob1 ! scy+2 ! mdz ! channels...
