Summary of Contents for National Instruments SCXI-1362
- Page 1 National Instruments SCXI-1362 Manual Get Pricing & Availability at ApexWaves.com Call Today: 1-800-915-6216 Email: sales@apexwaves.com https://www.apexwaves.com/modular-systems/national-instruments/scxi/SCXI-1362...
-
Page 2: Installation Guide

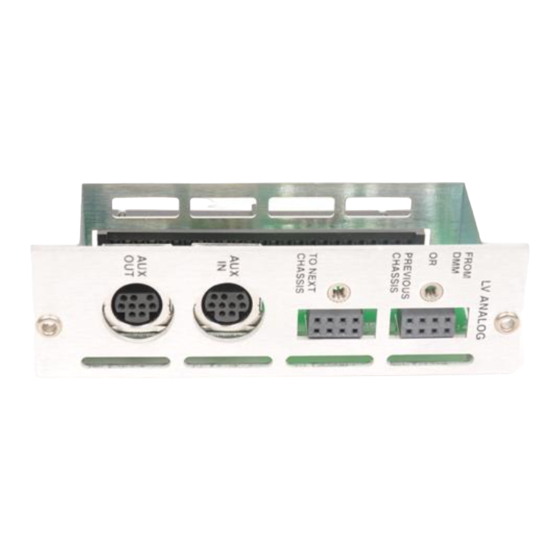

DAPTER This guide explains how to unpack, install, and clean the SCXI-1362 adapter kit. With the SCXI-1362 adapter kit, you can connect the NI 4021 or NI 4060 to the following switch modules: SCXI-1160, SCXI-1161, SCXI-1163R, SCXI-1190, SCXI-1191, or SCXI-1192. -
Page 3: Safety Information
If the device is damaged, turn the device off and do not use it until service-trained personnel can check its safety. If necessary, return the device to National Instruments for service and repair to ensure that its safety is not compromised. - Page 4 Do not substitute parts or modify equipment. Because of the danger of introducing additional hazards, do not install unauthorized parts or modify the device. Return the device to National Instruments for service and repair to ensure that its safety features are not compromised.
- Page 5 1 SCXI Chassis 3 Small Screw 5 AUX OUT Connector 2 SCXI-1362 Adapter 4 AUX IN Connector 6 SH9MD-AUX Cable Figure 1. Installing the SCXI-1362 Kit SCXI-1362 Adapter Kit Installation Guide ni.com...
- Page 6 Installing the SCXI-1362 in a Multichassis System Refer to Figure 2 when installing the SCXI-1362 adapter kit in a multichassis system. To install the SCXI-1362 adapter kit in a multichassis system, complete the following: Repeat steps 1 through 5 of the Installing the SCXI-1362 Adapter Kit section.
-
Page 7: Electromagnetic Compatibility
DoC (in Adobe Acrobat format) appears. Click the Acrobat icon to download or read the DoC. Category II refers to local level distribution, such as that provided by a standard wall outlet. SCXI-1362 Adapter Kit Installation Guide ni.com...
