Kohler ODEON 72704T-C4 Installation Instructions

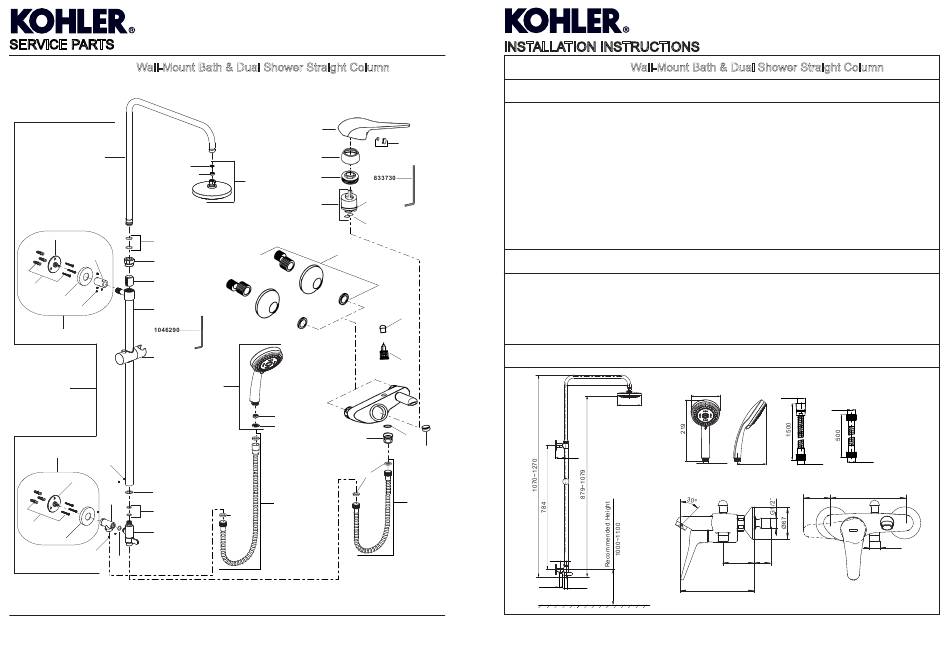

SERVICE PARTS
72704T-C4 Wall-Mount Bath & Dual Shower Straight Column
1121294**
77420
1030624
1196610
870992
1196622**
1196609**
1121285
1061576
1196621**
832751 1268608**
1256397**
1109471**
1196627**
1256401**
832751
1196610
1196628
1196607**
870921
1061576
1183267**
1196621**
832751
870921
**Color code must be specified when ordering
1265603-2A-A
800078**
871556**
834792
1181004**
880085
834460
880084
1180884**
1183428**
1030624
77420
865093**
880010
831727**
880010
ODEON
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
880002
NOTES:
1. Shut off the water supplies to the fitting.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for diverter is 0.05MPa(0.5bar).
5. Recommended minimum working pressures is 0.1MPa(1bar).
6. The highest working pressure for handspray & shower head is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a
pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handspray,
shower head and the shower arm away from heater, or it may become damaged and cause injury to the user.
OPERATION INSTRUCTIONS
Lift the handle slightly to turn on the faucet. Handle downwards for cold water, turn counter-clockwise for hot water.
Water flows out from spout when faucet diverter is in the normal position and it's diverted to shower column when
the diverter knob is lifted.
865035**
Turn the diverter handle right to close to the wall, water will flow from the handspray; turn it vertically to the wall, the
showerhead will work.
ROUGH-IN DIMENSIONS
835927**
871568
834562**
1111667**
34
G1/2˝
4 1265603-2A-A
72704T-C4 Wall-Mount Bath & Dual Shower Straight Column
400
Ø102
Ø178
68
G1/2˝
66
G1/2˝
155
Finished Floor
ODEON
G1/2˝
G1/2˝
G1/2˝
102 G1/2˝
150
61
G1/2˝
19
