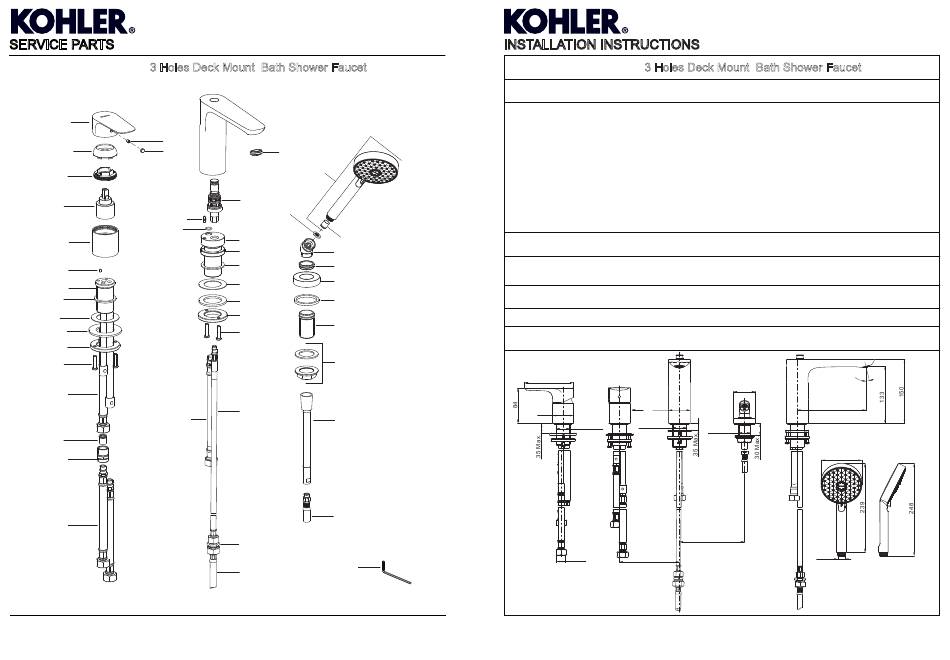

SERVICE PARTS
72292T-4
3 Holes Deck Mount Bath Shower Faucet
3016002**
833438
3015547**
3008523
3015523
834793
837333
42045
3019563**
3007036
3007025
871306
22352
1128531
3002530
831587
3006376
3006376
831752
1045198
3006376
**Color code must be specified when ordering.
1212010-2A-B
ALEO
3015846
1392093**
1228782**
77420
3016303
79680
3016304
897637**
835384
1172476
865204**
22352
870205
1128531
3002530
864909
831587
3008518
3009021
898324**
834428
865067
833730
834428
INSTALLATION INSTRUCTIONS
72292T-4
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
3. Observe local plumbing codes.
4. If possible, install the faucet before installing the tub.
5. The highest working pressure for handspray is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure reducer is
needed. The highest water and environment temperature is 60°C. Please keep handspray, showerhead and the
shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Lift handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water. Press the diverter knob for
handspray.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
A向
116
Ø50
Ø34~Ø38
G1/2˝
4
1212010-2A-B
3 Holes Deck Mount Bath Shower Faucet
Ø51
A
Ø51
Ø34~Ø38
Ø30~Ø40
150~1000
150~400
ALEO
14º
160
Ø110
G1/2˝
1
