Kohler Singuiler 72671T-C9 Installation Instructions

SERVICE PARTS

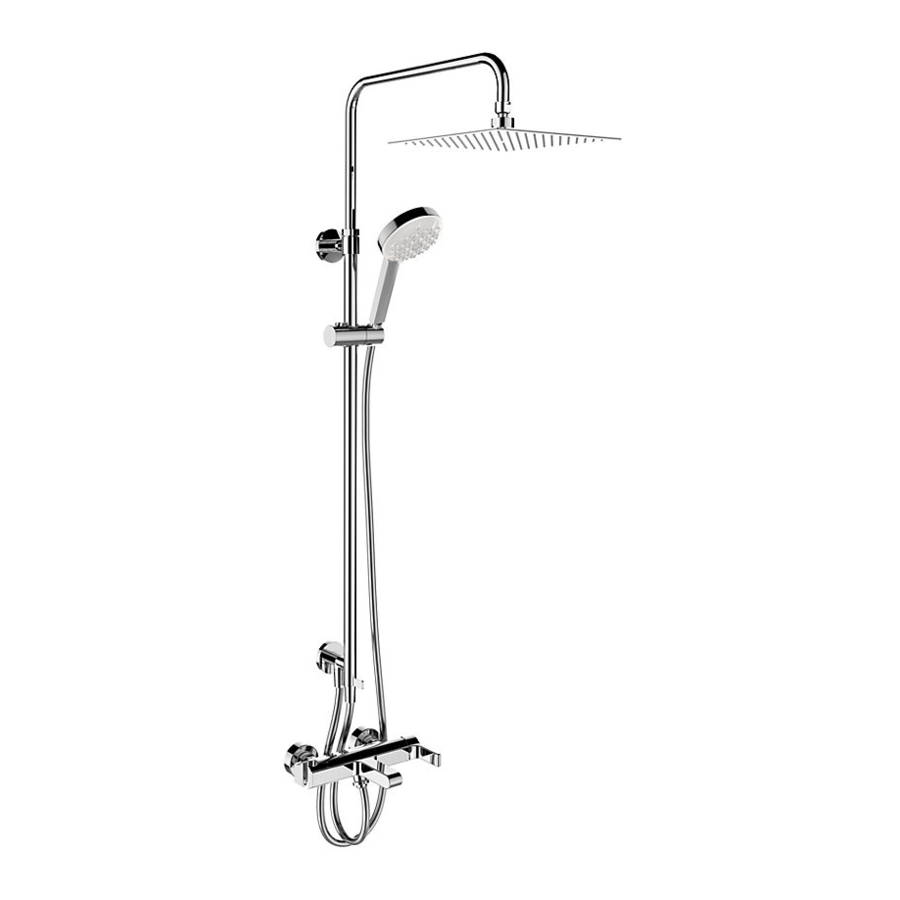

72671T-C9 Wall-Mount Thermostatic Bath & Dual Shower Column
1121294**
77420
1030624
1196610
870992
1196622**
1196609**
1121285
1061576
1196621**
1268608**
832751
1256397**
1109471**
1196627**
1256401**
832751
1196610
1196628
1196607**
870921
1061576
1183267**
1196621**
832751
870921
**Color code must be specified when ordering
1265596-2A-A
SINGULIER
3006133**
865150
1261848**
831752
1170944**
870992 865225**
864471
836586
3006108** 1218659
870721
3007097
864922**
3005770
1073828**
832940
1236750**
837192
834401**
79680
77420
1248781**
INSTALLATION INSTRUCTIONS
72671T-C9
BEFORE YOU BEGIN
834401**
832940
All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to
make changes in product characteristics, packaging, or availability at any time without notice.
837192
Please leave these instructions for the consumer. They contain important information.
OPERATION CONDITION
871584
1. Minimum supply pressures: 0.05MPa(0.5bar).
2. Recommended supply static pressures: 0.3MPa(3bar)
on hot and cold water.
3. Supply pressure greater than 0.5MPa(5bar): install a
835239
pressure reducer.
4. Hot water temperatures, minimum: 50ºC, maximum:80ºC.
5. Recommended hot water temperature: 65ºC(energy-saving).
HANDLE OPERATION
3005148
1. Turn the diverter handle of the column counter-clockwise, handspray works; turn it
clockwise, showerhead works.
3006148
2. The temperature is set by slowly turning the temperature selector(right-hand handle). For
safety reasons, there is a stop that limits temperature to 40ºC. To get a higher temperature,
push the button and continue turning the temperature selector.
3. Water flow is set by turning the left-hand handle. Turn the faucet diverter handle counter-
clockwise for the bath spout, turn the faucet diverter handle clockwise for the shower, middle
position off.
ROUGH-IN DIMENSIONS
1154793**
G1/2˝
4 1265596-2A-A
Wall-Mount Thermostatic Bath & Dual Shower Column
6. Setting range, approximately: 20ºC to 50ºC.
7. Safety stop at: 40ºC.
8. Maximum mixed water temperature: 50ºC.
9. The highest water and environment temperature is 60ºC.
Please keep handspray, showerhead and the shower arm
away from heater, or it may become damaged and cause
injury to the user.
400
254×254
87~92
185
68
34
G1/2˝
Finished Floor
SINGULIER
Bath
Shower
130
G1/2˝
9º
G1/2˝
G1/2˝
G1/2˝
G1/2˝
G1/2˝
1
