HERSCHEL MANHATTAN 3000 Watts

TECHNICAL INFORMATION:

Rated Power:
Power Settings:
Heating Element:
Reflector:
Dimensions:
Warm-up time:
Peak wavelength:
Weight:
Protection:
Remote:

ELECTRICAL EQUIPMENT:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
IMPORTANT NOTICE TO PURCHASER:
Before using the product, you should determine its suitability for its intended use. HERSCHEL INFRARED LTD expressly disclaims
implied warranties and conditions of merchantability and fitness for a particular purpose. In no case shall HERSCHEL INFRARED
LTD be liable under any legal theory, including but not limited to contract or strict liability, for any direct, indirect special, incidental
or consequential damages resulting from product use.
The product complies with the essential requirements of European Safety Standards Low Voltage Directive 2014/35/EC.
Original instructions covering Manhattan 3000 Watt heaters produced 122019 onwards.

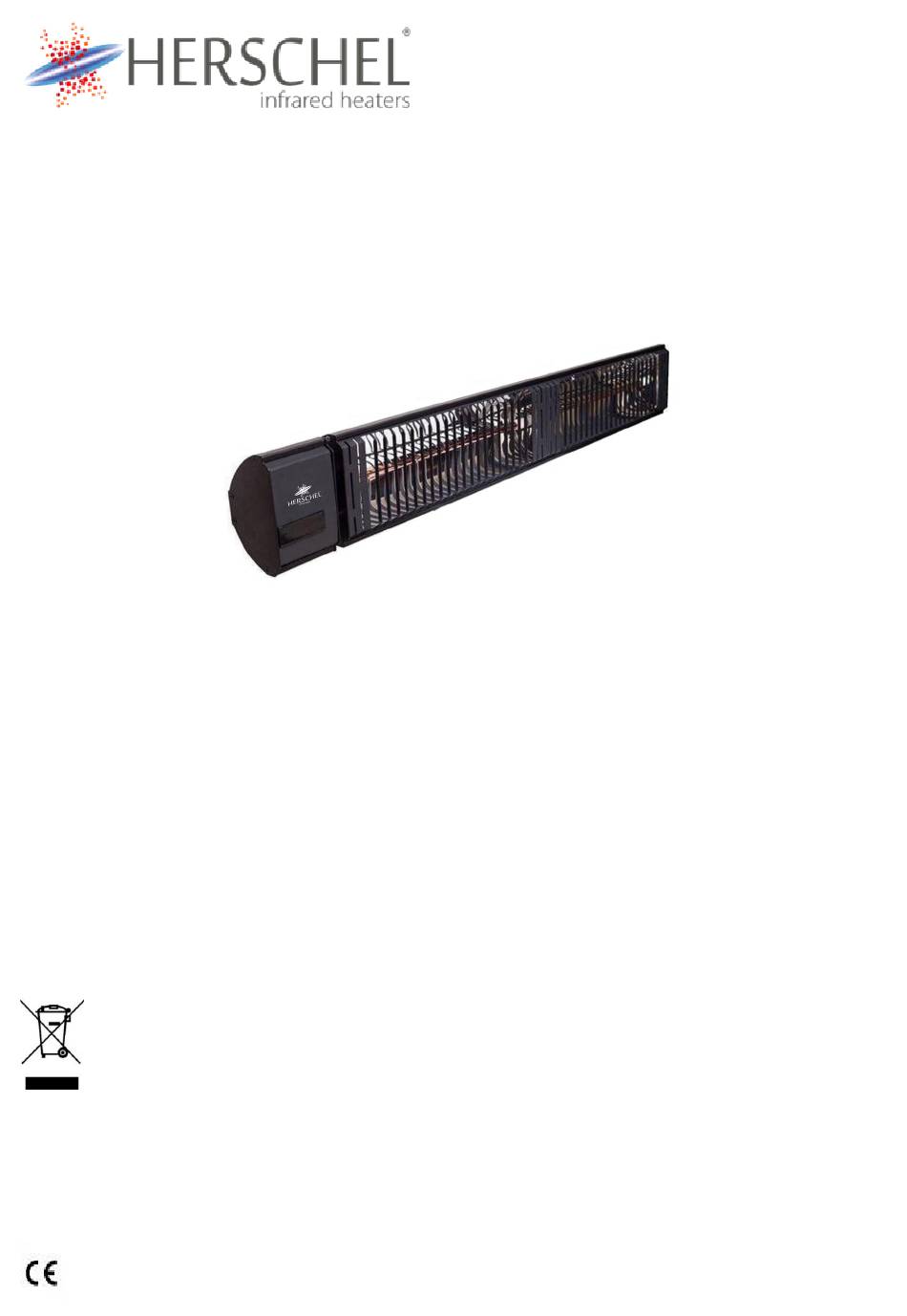

Wall and Ceiling mounted Infrared Heater
Installation & OPERATING INSTRUCTIONS
3000W at 220-240V
1500W / 3000W with remote control. 3000W in remote by-pass mode
Low glare halogen heating lamps
Mirror Aluminium (98% reflection preventing rearward heat loss)
104.5 x 15 x 8.5cm
Wall or Ceiling
2 seconds
0.8μm
4.2kg
2 Years (excludes lamp & remote control)
IP54
24 hour timer, half power setting. 2 x AAA batteries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANHATTAN 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Herschel MANHATTAN 3000

  • Page 1 IMPORTANT NOTICE TO PURCHASER: Before using the product, you should determine its suitability for its intended use. HERSCHEL INFRARED LTD expressly disclaims implied warranties and conditions of merchantability and fitness for a particular purpose. In no case shall HERSCHEL INFRARED LTD be liable under any legal theory, including but not limited to contract or strict liability, for any direct, indirect special, incidental or consequential damages resulting from product use.
  • Page 2 WATER INGRESS PROTECTION: Herschel MANHATTAN is rated to a standard IP54 (splashproof), however when used outdoors it must be installed in a covered area to give maximum protection and longevity against the effects of driving rain, wind, frost, salt and water contamination, etc.
  • Page 3 If in doubt, do not install. Herschel Infrared Ltd shall not be liable for any loss, damage or injury caused or resulting from inadequate fitting or incorrect placement of heaters close to water sources. ELECTRICAL INFORMATION: The Herschel MANHATTAN is not supplied with a plug and is only intended for connection to the fixed wiring. Installation must only be carried out by competent persons or a qualified electrician according to national regulations and the unit must be earthed.
  • Page 4 HANDLING WHILE INSTALLING: Take care while installing to avoid touching the grill on the front of the heater. Be sure to wipe away any finger marks from the heater before the heater is first switched on, since the oils in fingerprints can burn and cause rapid discolouration of certain parts. CAUTION: •...
  • Page 5 Insert 2 x AAA Alkaline batteries into the remote control. The remote control operates the heater remotely on or off with adjustable heat level and timer described below. All Herschel remote controls have the same frequency, so it is possible to control several heaters with just one remote.
