Summary of Contents for Eaton XVS400

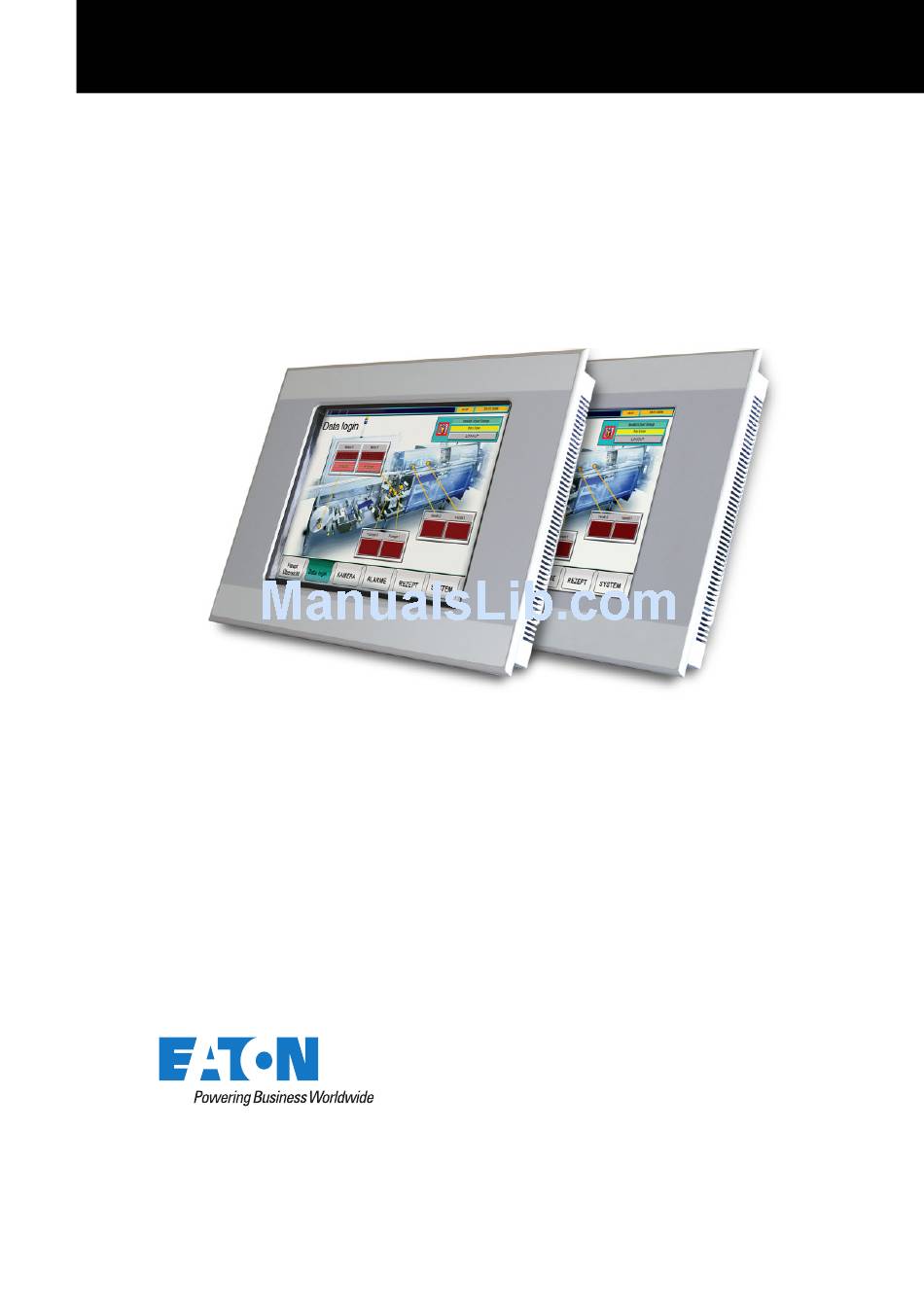

- Page 1 10/2011 MN04802012Z-EN Operating Instructions replaces M001485-08, 03/2010 XVS400 10.4"/12.1"/15" MICRO PANEL...
- Page 2 None of this document may be reproduced or processed, duplicated or distributed by electronic systems in any form (print, photocopy, microfilm or any other process) without the written permission of Eaton Automation AG, St. Gallen. Subject to modifications. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 3: Table Of Contents
Requirements for the mounting position ..............Interfaces ........................5.3.1 Overview of interfaces....................5.3.2 Preparation of cables with D-Sub connector............... 5.3.3 Power supply....................... 5.3.4 RS232 (System Port) ....................5.3.5 Ethernet........................5.3.6 USB Device......................... 5.3.7 USB Host ........................MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 4 Touch sensor ......................9.3.1 Devices with resistive touch ..................9.3.2 Devices with infra-red touch..................System ........................Interfaces ........................9.5.1 Power supply....................... Enclosure ratings ......................Agency approvals and standards................Applicable standards and regulations ................. Ambient conditions...................... MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 5: General
Purpose of these Operating Instructions These Operating Instructions contain the information required for the correct and safe use of the MICRO PANELs XVS400 10.4"/12.1"/15"; MS2 10.4"/12.1". The Operating Instructions are part of the devices and must therefore be kept nearby. - Page 6 1 General 1.3 Additional documentation MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 7: Device Description
Device names XVS400 10.4"/12.1"/15" and MS2 10.4"/12.1" are two different names of equivalent products. Function MICRO PANELs XVS400 10.4"/12.1"/15"; MS2 10.4"/12.1" can be used as HMI devices or as inte- grated HMI/PLC devices. Intended use MICRO PANELs XVS400 10.4"/12.1"/15"; MS2 10.4"/12.1" are primarily used in machine and system building. -
Page 8: Package Contents
2 Device description 2.5 Package contents Package contents The accessories supplied with the MICRO PANELs XVS400 10.4"/12.1"/15"; MS2 10.4"/12.1" depend on the device version. 2.5.1 Package contents for devices with resistive touch Designation MICRO PANEL: XVS-430-10MPI or MS2-430-10MPI or ... -
Page 9: Package Contents For Devices With Infra-Red Touch
Order the accessories required from your supplier. Required accessories for: Mounting with increased protection class: See Chapter 9.6 Enclosure ratings, 61. Use in a potentially explosive atmosphere: See Chapter 9.7 Agency approvals and standards, 61. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 10: Designation
Arrangement of interfaces and operating elements Support To ensure fast and optimum support always provide the support personnel with the following informa- tion on the nameplate: Part no. (Part-No or Art.-No) Serial no. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 11: Safety Regulations
Read this chapter before working with the device. This contains important information for your personal safety. This chapter must be read and understood by all persons work- ing with this device. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 12: Meaning Of Symbols
Signal word CAUTION without safety alert symbol Indicates a situation which, if not avoided, could result in material damage. Indicates useful information. The danger symbol used and the text indicate the actual danger and the related preventative measures. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 13: Mandatory Requirements, Personnel
It must be ensured that the device is properly connected, mounted, maintained and disposed of in compliance with all relevant standards and safety regulations. 3.3.5 Prohibited use The implementation of safety functions (relating to the protection of personnel and machinery) using the device is prohibited. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 14: Requirements For Proper Operation
Failure or malfunction of the device Improper handling or use Failure to observe the Operating Instructions Conversions, modifications and repairs to the device Repairs, see Chapter 7.3.1 Repairs, 50. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 15: Device Related Hazards
Avoid contact with components (such as connector pins) that are susceptible to electrostatic discharge. Discharge (by touching a grounded metal object) any static charge accumulated in your body before touching the device. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 16 If condensation is present on the device, or if it was exposed to temperature fluc- tuations, it must be allowed to adjust to room temperature (do not expose the de- vice to the direct heat of heating devices) prior to commissioning. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
- Page 17 Do not use any pointed or sharp objects (e.g. knife) for cleaning. Do not use any aggressive or abrasive cleaning agent or solvent. Avoid any liquid entering the device (risk of short-circuit). MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
- Page 18 3 Safety regulations 3.4 Device related hazards MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 19: Operating And Indication Elements
(min. ø 7 mm). It is not necessary to touch the infra-red touch protective panel. B Display Display operating and indication elements. Tab. 5 Operating and indication elements on the front MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 20: Operating Elements On The Service Side
Slot for CF card with operating system and normally with PLC and visu- alization projects. D Ejector button Ejecting the CF card. E Control button Function depends on the software used. Tab. 6 Operating elements on the service side MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 21: Indication Elements On The Service Side
Flashes if the resistive touch is incorrectly calibrated (touch calibra- tion, → Document «MN05010007Z-EN System Description Windows CE»). E SUPPLY OK (green) Lit if all internal system voltages are present. Tab. 7 Indication elements on the service side MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 22 4 Operating and indication elements 4.3 Indication elements on the service side MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 23: Installation
5 Installation 5.1 Safety regulations Installation Safety regulations Read Chapter 3 Safety regulations, 11 before installing and commissioning the de- vice. This contains important information for your personal safety. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 24: Requirements For The Place Of Installation
Properties of the mounting surfaces: Material thickness at the mounting cutout 2…5 mm Flatness ≤ 0.5 mm (this requirement must also be fulfilled when the device is mounted!) Surface roughness Rz ≤ 120 MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 25: Interfaces
The cables used must be prepared according to the interface description in this document. The wiring instructions for the relevant interface must be observed when wiring the device. Any generally applicable regulations and standards must be fulfilled. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 26: Overview Of Interfaces
E USB Host 0 → Chapter 5.3.7, 33 → Chapter 5.3.7, 33 F USB Host 1 G Profibus → Chapter 5.3.8, 34 H DIAG Only for service tasks Tab. 8 Overview of interfaces MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 27: Preparation Of Cables With D-Sub Connector
The folded back shield braid end must be covered by the heat shrinkable tubing or by the rubber grommet. Fit the D-Sub connector to the cable end: The exposed metal shield braid must be clamped to the connector casing with the cable clamp. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 28 E D-Sub connector C Cable clamp F Mounting screw UNC The EMC values stated in the technical data (immunity and emission) can only be guar- anteed by observing the prescribed cable preparation! MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 29: Power Supply
/ max. 2.5 mm (lead or wire) min. AWG18 / max. AWG12 Stripping length 7 mm Max. tightening torque 0.6…0.8 Nm / 5…7 Lb. In. Tab. 10 Preparing the wiring of the connector MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 30: Rs232 (System Port)
Cable length Max. baud rate 2.5 m 115200 Bit/s 57600 Bit/s 10 m 38400 Bit/s 15 m 19200 Bit/s 30 m 9600 Bit/s Tab. 12 Relationship of cable length / baud rate MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 31 5 Installation 5.3 Interfaces When preparing the cables, ensure that there is a low-resistance connection between the cable shield and the connector casing (→ Chapter 5.3.2, 27). MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 32: Ethernet
Communication can be disturbed and the connection mechanics damaged if the Ethernet interface is exposed to severe vibration or the RJ45 plug connection is pulled. Protect the RJ45 connection from severe vibration. Protect the RJ45 connection from pulling on the socket. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 33: Usb Device
5.3.7 USB Host The USB Host interfaces support USB 2.0. Fig. 16 USB Host interface (USB Host, type A) Cable Only use shielded USB standard cable. Maximum cable length: 5 m. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 34: Profibus
150 Ω Rated surge impedance Permissible surge impedance 135…165 Ω Capacitance per unit length < 30 pF/m < 110 Ω/km Loop resistance Core cross-section ≥ 0.34 mm (22 AWG) Tab. 15 Cable specifications MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 35 At least one of the two terminations must be fed by the bus station. Transmission faults can occur if operation is carried out without the correct termina- tion on the Profibus network. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 36: Mounting
The device is not provided with an On/Off switch. If the power supply is not provided with a switch, the device will start up (boot) as soon as it is connected to the power sup- ply. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 37: Mounting The Device
Material thickness at the mounting cutout 2…5 mm 329.0 344.0 +1/-1 +1/-1 Fig. 19 Mounting cutout for 10.4" devices Fig. 20 Mounting cutout for 12.1" devices 410.0 +1/-1 Fig. 21 Mounting cutout for 15" devices MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 38 Fig. 22 Groove for sealing strip (A) Fit the supplied threaded pins in the retaining brackets beforehand. Fig. 23 Threaded pin pre-fitted in a retaining bracket Fit the device from the front into the mounting cutout. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
- Page 39 Top and bottom of the device: Fit one retaining bracket each at the left and right fixing position Fig. 24 10.4" and 12.1" devices with four retaining brackets (do not meet IP65 requirements) MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
- Page 40 One retaining bracket each at the second fixing position from the left and from the right Left and right on the device: One retaining bracket each at the top and bottom fixing position Fig. 26 15" devices with eight retaining brackets (do not meet IP65 requirements) MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
- Page 41 One retaining bracket each at the outermost and at the two innermost fixing positions Left and right on the device: One retaining bracket each at the two innermost fixing positions Fig. 27 15" devices with twelve retaining brackets (meet IP65 requirements) MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
- Page 42 5 Installation 5.4 Mounting MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 43: Operation
If condensation is present on the device, or if it was exposed to temperature fluc- tuations, it must be allowed to adjust to room temperature (do not expose the de- vice to the direct heat of heating devices) prior to commissioning. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 44: Starting The Device
CF card with data in CF slot 1 (B) Do not apply any force (CF cards are protected against reverse insertion). Fig. 29 Service side of the device (CF slot cover removed) Fit the CF slot cover (A). MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 45 (→ Document «MN05010007Z-EN System Description Windows CE»): Adjust the system settings of the device. Install the required application programs. The lifespan of the backlight can be increased by reducing the brightness (→ Document «MN05010007Z-EN System Description Windows CE»). MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 46: Switching Off The Device
(CCFL) of the backlight. Avoid frequent on/off switching of the device. Reduce the brightness of the backlight instead (→ Document «MN05010007Z-EN System Description Windows CE»). De-energize the device. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 47: Maintenance And Service
7 Maintenance and service 7.1 Safety regulations Maintenance and service Safety regulations Read Chapter 3 Safety regulations, 11 before working with the device. This contains important information for your personal safety. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 48: Maintenance
Recalibrating a resistive touch The resistive touch is already calibrated when delivered. However, it must be recalibrated if it does not respond correctly to touch operation. Touch calibration, see Document «MN05010007Z-EN System Description Windows CE». MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 49: Cleaning The Infra-Red Touch
With stubborn contamination, spray a little cleaning agent onto the damp cloth first. 7.2.4 Recalibrating the infra-red touch Devices with infra-red touch do not have to be recalibrated. 7.2.5 Battery The integrated battery cannot be exchanged. Lifespan, see Chapter 9.4 System, 59. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 50: Service
Repairs The device must only be opened by the manufacturer or by an authorized repair center. Contact your local supplier or Eaton technical support for repairs. Only the original packaging should be used for transporting the device. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 51: Troubleshooting
Start (boot) the device. Calibrate touch (→ Document «MN05010007Z-EN System Description Windows CE»). Infra-red frame of the infra-red touch is contam- Clean the infra-red frame inated. (→ Chapter 7.2.3, 49). MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 52 The threaded pins for mounting the device have Loosen the threaded pins (observe max. torque, → Chapter 5.4.1, 37). been tightened too much. Device is faulty. Send in your device for repair. Tab. 17 Troubleshooting MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
-
Page 53: Storage, Transport And Disposal
Damage to the device must be prevented during transport (use an appropriate packaging). The ambient conditions must be fulfilled even when the device is transported. See Chapter 9.9 Ambient conditions, 63. Check the device on arrival for damage in transit. MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 54: Disposal
10.4" and 12.1" devices Cardboard with PE foil Plastic bag: Polyethylene (PE) 15" devices Closed-cell polyethylene foam, CFC-free Plastic bag: Polyethylene (PE) Tab. 19 Materials used in the packaging MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 55: Technical Data
67 mm Thickness of front plate 5 mm Mounting depth 62 mm Mounting cutout 329 × 238 mm (±1 mm) Weight Approx. 3.7 kg Tab. 20 Dimensions and weights of the 10.4" devices MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 56: Devices
67 mm Thickness of front plate 5 mm Mounting depth 62 mm Mounting cutout 344 × 262 mm (±1 mm) Weight Approx. 4.1 kg Tab. 21 Dimensions and weights of the 12.1" devices MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 57: 15" Devices
73 mm Thickness of front plate 5 mm Mounting depth 68 mm 410 mm × 315 mm (±1 mm) Mounting cutout Weight Approx. 5.8 kg Tab. 22 Dimensions and weights of the 15" devices MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 58: Display
100 %, 80 %, 60 %, 40 % brightness Lifespan Normally 50 000 h Resistive touch back panel Touch sensor (absolutely flat, seamless) Infra-red touch protective panel Non-reflective safety glass Tab. 23 Display MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 59: Touch Sensor
2× CompactFlash Card Type I/II for operating system, programs and data Use only original accessories. Real-time clock (battery backup) Battery type CR2032 (190 mA/h), maintenance-free (soldered) Backup time in de-energized state Normally 10 years Tab. 26 System MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 60: Interfaces
2 × max. 3 W Total Max. 24 W 15" devices Basic device Max. 30 W (normally 28 W) 2 × max. 3 W USB stations on USB host Total Max. 36 W MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 61: Enclosure Ratings
UL 60950, file no. E208621 Tab. 30 Agency approvals and standards 1) Zone 22, category 3D: - IP5x for devices of the group IIIB (non-conductive dust) - IP6x for devices of the group IIIC (conductive dust) MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 62: Applicable Standards And Regulations
(Engineering conditions of acceptability by UL, → Chapter 5.2.1, 24) Product standards EN 50178 Electronic equipment for use in power installations IEC/EN 61131-2 Programmable logic controllers, equipment require- ments and tests Tab. 31 Applicable standards and regulations MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... -
Page 63: Ambient Conditions
9…60 Hz: 0.15 mm Acceleration: 60…150 Hz: 2 g Schock in accordance with IEC/EN 60068-2-27 15 g / 11 ms Fall test In accordance with IEC/EN 60068-2-31 Tab. 32 Ambient conditions MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com... - Page 64 9 Technical data 9.9 Ambient conditions MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com...
