Termozeta AIRZETA CLIMA Instruction Manual page 28

Notes:
1. Keep the drainage cover and the water plug properly.
2. During drainage, the body can be tilted slightly backwards.
3. If the water container cannot hold all the water, before the water container is full, stuff the
water outlet with the water plug as soon as possible to prevent water from flowing to the floor
or the carpet.
4) When the water is discharged, stuff the water plug, and tighten the drainage cover.
Notes: 1. Restart the machine after the water plug and drainage cover are installed,
otherwise condensate water of the machine will flow to the floor or the carpet.

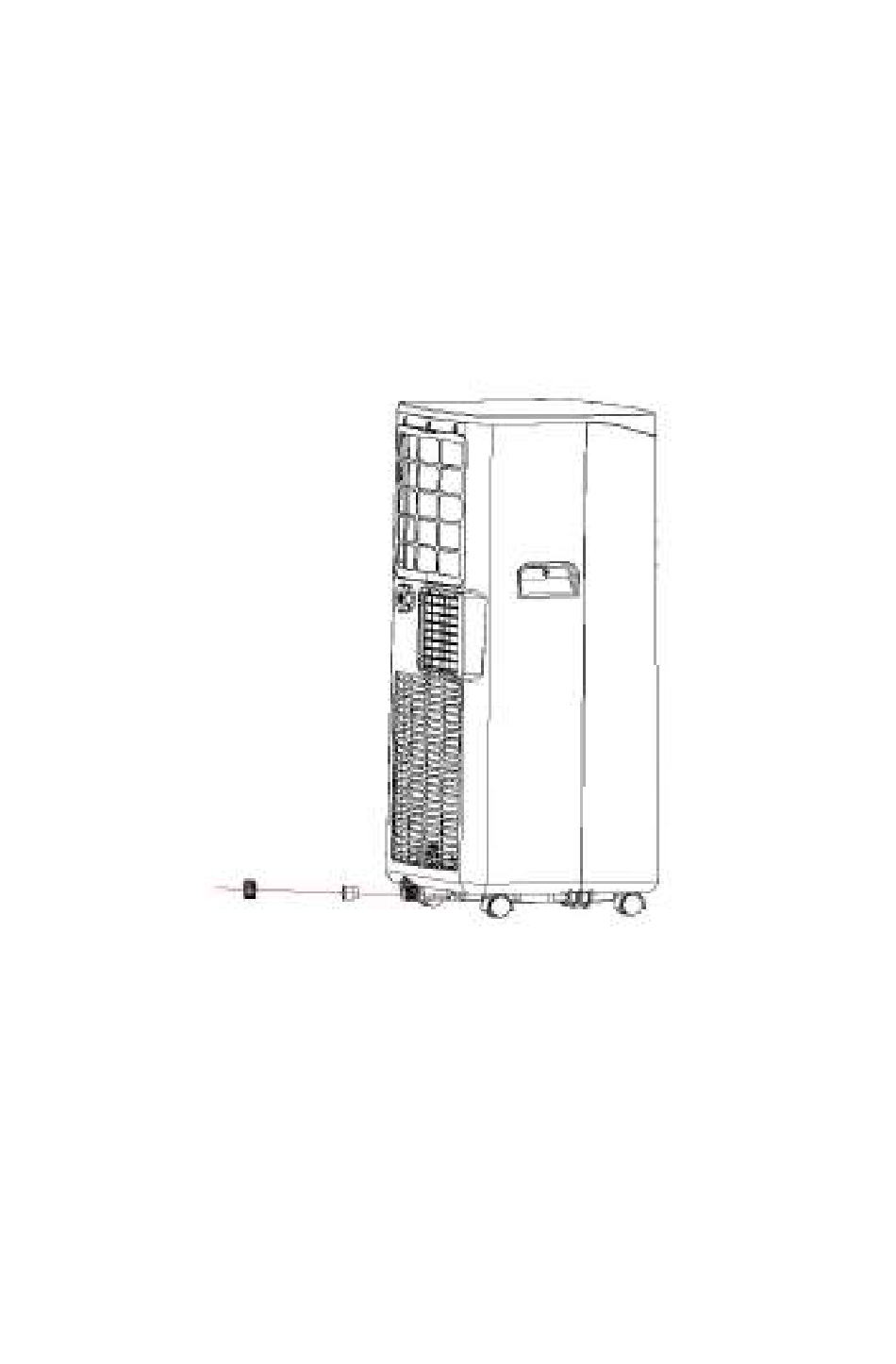

1. Continuous drainage (Optional) (only applicable to cooling and dehumidifying mode), as
shown in figure:
1) Unscrew the drainage cover, and unplug the water plug.
2) Set the drainage pipe into the water outlet.
3) Connect the drainage pipe to the bucket.
28
