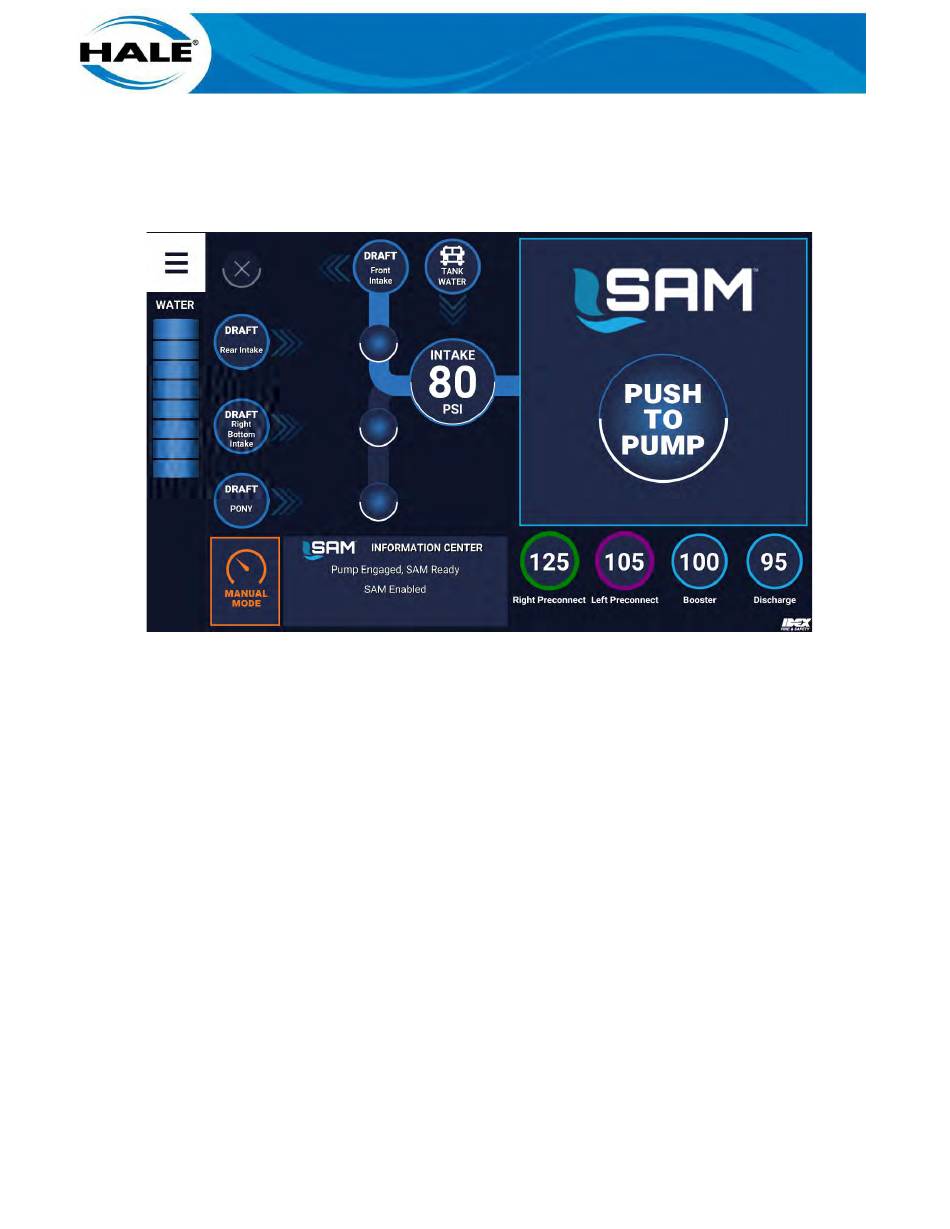

OEM QUICK START GUIDE SAM
THIS GUIDE IS INTENDED FOR QUICK REFERENCE ONLY. DO NOT USE IT TO REPLACE REQUIRED
TRAINING, STANDARD OPERATING GUIDELINES REQUIRED BY THE AUTHORITY HAVING JURISDIC-
TION, THE OPERATION INSTALLATION MAINTENANCE MANUAL, OR APPROPRIATE QUALIFICATIONS.
QSG P/N FSG–MNL–00**** REVISION A
COPYRIGHT © 2019 BY HALE PRODUCTS, INC. ALL RIGHTS RESERVED
(G
ENERATION
BY
HALE PRODUCTS, INC.
A Unit of IDEX Corporation
607 NW 27th Ave, Ocala, FL 34475
(800) 533.3569
(800) 520.3473 (FAX)
www.haleproducts.com
NOTICES
REFERENCE OIM MANUAL P/N FSG–MNL–00210
)
2
Advertisement
Related Manuals for HALE SAM
Summary of Contents for HALE SAM
- Page 1 THIS GUIDE IS INTENDED FOR QUICK REFERENCE ONLY. DO NOT USE IT TO REPLACE REQUIRED TRAINING, STANDARD OPERATING GUIDELINES REQUIRED BY THE AUTHORITY HAVING JURISDIC- TION, THE OPERATION INSTALLATION MAINTENANCE MANUAL, OR APPROPRIATE QUALIFICATIONS. QSG P/N FSG–MNL–00**** REVISION A REFERENCE OIM MANUAL P/N FSG–MNL–00210 COPYRIGHT © 2019 BY HALE PRODUCTS, INC. ALL RIGHTS RESERVED...
- Page 2 WHILE SAM CAN REDUCE PUMP OPERATOR WORKLOAD, IT DOES NOT TAKE THE PLACE OF THE PUMP OPERATOR. THE PUMP OPERATOR STILL NEEDS TO CALCULATE THE REQUIRED LINE PRES- SURE TO SUPPORT THE HOSE LAY AND NOZZLE IN USE. SAM WILL MAINTAIN THE SET PRESSURE IN AUTO MODE.
- Page 3 2. Typical Panel layout FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210...
- Page 4 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210...
- Page 5 The OEM/apparatus builder shall supply two separate sources of +12 VDC power (ignition), one capable of 85 Amps and one capable of 300 Amps (one for SAM and one for the ESP primer system respectively). OTHER ELECTRICAL COMPONENTS MUST NOT BE SUPPLIED FROM THE SAM SYSTEM SUPPLY. DO NOT CONNECT THE PRIMER AND HALE SAM TO THE SAME POWER WIRE.
- Page 6 4.2 CAN Bus Requirements The SAM system utilizes three (3) separate CAN buses (see Figure 2, page 13): Blue (engine ECU), Green (intake The Blue bus connects the apparatus (ECU) and the SAM control modules valves), and Red (discharge valves).
- Page 7 6.1 Water Column tubing. A Coil of 3/4-in tubing (loose or pre-connected at SAM end) SAM end connects to fitting on the SAM Drain Manifold Assy. Plumb to top of onboard water tank fill tower (above the overflow level–in atmosphere) Labeled as “PLUMB TO TOP OF TANK”...
- Page 8 7. Tablet Mounting (If equipped) 7.1 Mount docking station in an easily accessed location near the operators’ panel. (The docking station may NOT be in the cab unless it is mounted in a close compartment.) 7.2 Supply constant 12Vdc power and ground to provided power supply and connect to docking station. This should be always powered and protected on a 10amp circuit.
- Page 9 ❑ Verify required ITL-40 (water tank level indicator) is present ❑ Verify SAM system (red tubing) is connected to vehicle air ❑ Verify SAM system water column sensor hose (10 feet of 3/4-in flex tubing provided) is connected to vehicle (Refer to Technical Manual [FSG–MNL-00211].) ❑...
- Page 10 10. SAM panel components FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210...
- Page 11 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210...
- Page 12 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210...
- Page 13 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210...
- Page 14 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210...
