HALE SAM Quick Start Manual

Foam/cafs addendum
Hide thumbs Also See for SAM:

Advertisement

Quick Links

Download this manual

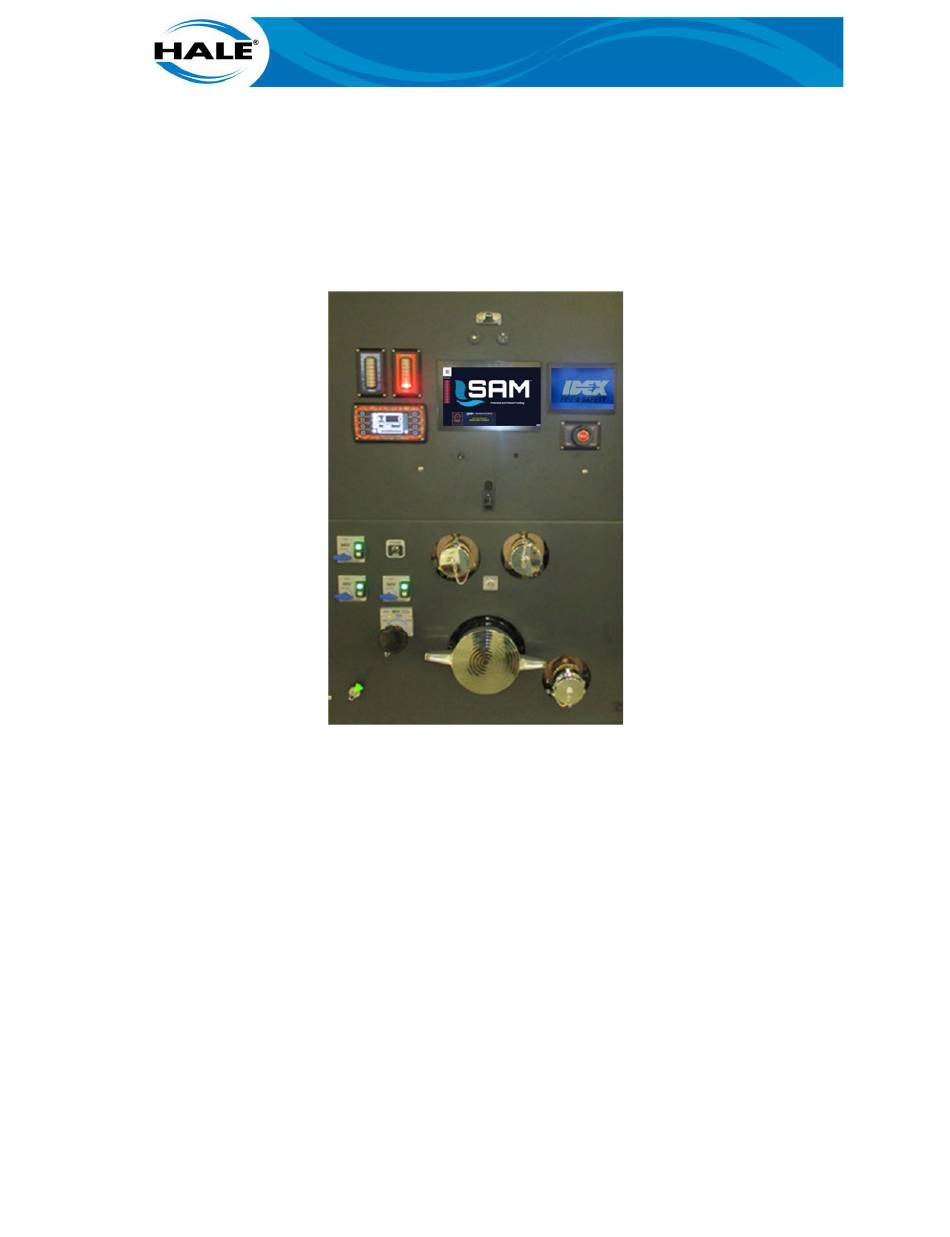

QUICK START GUIDE
SAM (G
)
2
ENERATION
FOAM/CAFS ADDENDUM
BY
HALE PRODUCTS, INC.
A Unit of IDEX Corporation
607 NW 27th Ave, Ocala, FL 34475
(800) 533.3569
(800) 520.3473 (FAX)
www.haleproducts.com
NOTICE
THIS GUIDE IS INTENDED FOR QUICK REFERENCE ONLY. DO NOT USE IT TO REPLACE REQUIRED
TRAINING, STANDARD OPERATING GUIDELINES REQUIRED BY THE AUTHORITY HAVING JURISDIC-
TION, THE OPERATION INSTALLATION MAINTENANCE MANUAL, OR APPROPRIATE QUALIFICATIONS.
QSG P/N FSG–MNL–00209 REVISION A
REFERENCE OIM MANUAL P/N FSG–MNL–00210
COPYRIGHT © 2019 BY HALE PRODUCTS, INC. ALL RIGHTS RESERVED
