Owner's Manual
S U P E R CHIEF

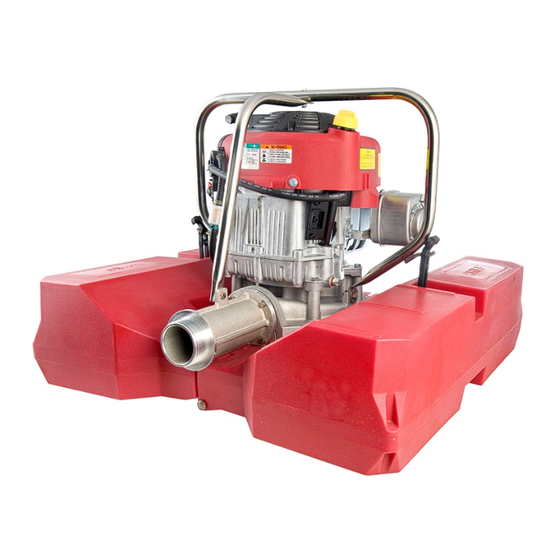

10.5HP Gas Pump
CUSTOMER CHECK LIST:
Please do the following immediately upon receipt of your pump:
•
Inspect pump for shipping damage. (Report any damage
to freight company).
•
Check to see that any/all accessories that you ordered are
included.
•
Record the pump serial number. This can be found stamped on
the top housing, and on the yellow sticker located on the side of
the engine.
•
Fill out and return warranty card.
NOTE: Warranty is validated upon the receipt of the
completed Warranty Registration Card.
•
Read all operating and maintenance instructions.
607 NW 27th Avenue
Ocala FL 34475
Phone: 800-533-3569
Page
Page 1
Advertisement
Table of Contents
Related Manuals for HALE SUPERCHIEF
Summary of Contents for HALE SUPERCHIEF
- Page 1 Owner's Manual S U P E R CHIEF 10.5HP Gas Pump CUSTOMER CHECK LIST: Please do the following immediately upon receipt of your pump: • Inspect pump for shipping damage. (Report any damage to freight company). • Check to see that any/all accessories that you ordered are included.
-
Page 2: Table Of Contents
CAUTION: The 1/8" diameter weep hole in the endcap must be kept clear for proper priming and operation. During normal operation, there will be a stream of water coming out of this weep hole. Hale Model #545-4091-07-0 (National Hose Thread Discharge) Hale Model #545-4091-08-0 (ISO Thread Discharge) Page 2... -
Page 3: Pump Operation
Pump Operation 1. To use the Super Chief the two main components must be assembled – the engine/pump assembly and the float assembly, see section 7. Fill engine crankcase with oil. Important: (The pump engine contains NO oil when received). Fill with 46-48 oz. - Page 4 7. Assembly of Super Chief The Super Chief will be supplied in two separate parts – 1. Float 2. Engine. 7.1 The float will need to be unfolded to allow the engine to be fitted. Turn the float over, so the securing straps are facing up 7.2 Lift the engine by the handle, and place into the centre of the float, 7.3 Secure the engine to the float by pulling the flexible straps and hooking into the keeper on the frame.
-
Page 5: Maintenance
ENGINE MAINTENANCE CAUTION: Always remove spark plug first. (This prevents accidental starting during servicing.) Change Oil: Drain oil from bottom of the engine. MAINTENANCE SCHEDULE Change oil while engine is warm, after first 5 hours TIME ACTION & every 50 hours/season thereafter. Change every 25 hours if operated under heavy load, or in high After first 5 hours •Change Oil... -
Page 6: Warnings/Safeguards
Important Warnings and Safeguards Do Not Touch Hot Muffler : Contact may cause burns. WARNING: : This may allow water CAUTION: UBMERSE NGINE AND UFFLER to enter to engine and damage the pump. : Potential fire CAUTION: HILE NGINE IS Hazard. -
Page 7: Specifications
Chief 10.5HP Pump Specifications 30" x 30" x 23" (76cm x 76cm x 58.5cm) Dimensions In box fully assembled: Shipping Weight 131 lbs (59.4 Kilograms) 118 lbs (53.5 Kilograms) Net Weight Pump: 86 lbs (39.0 Kilograms) Float: 32 lbs (14.5 Kilograms) Gas tank 3 Quarts (2.8 Liters) Engine Capacities... -
Page 8: Pump Curve
Chief 10.5HP Pump Curve Port Gallons per Minute Optional Accessories Description Part # Intake screen for stopping small debris: 1/8" dia. openings in screen 12-0025 25', (7.62 m), Hose assembly F-203-H25 50', (15.24 m), Hose assembly F-203-H50 100', (30.48 m), Hose assembly F-203-H100 2.5"... -
Page 9: Parts List And Diagrams
OTTERBINE® CHIEF 10.5HP PORTABLE FLOATING PUMP REPLACEMENT PARTS LIST DIAGRAM OTTERBINE PART DESCRIPTION PART NUMBER NUMBER Engine, Briggs & Stratton, 10.5HP 30-0026-011 Lower & Upper Housing Assembly 10-0077 Discharge Flange 41-0009 Hex Bolt, S/S, 5/16"-18 x 1" MP2008 Hex Bolt, S/S, 1/4"-20 x 1" EP5100 Discharge/Plug Gasket EP2503... - Page 10 Chief 10.5HP Parts Breakdown Pumping Assembly Page 10...
- Page 11 Chief Parts Breakdown Float Assembly (P/N 01-0002-002) Item Part Description Number Number Float, 2 sections 42-0035 Flex Draw Latch 46-0015 Well Nut, 10 - 32 21-0010 Carriage Bolt, S/S, 5/16" - 18 x 5 3/4" 22-0008 Cap Nut, Brass, 5/16" - 18 BP2811 Phillips Screw, S/S, 10 - 32 x 3/4"...
-
Page 12: Warranty: Briggs & Stratton
NOTE: This is a reprint of Briggs & Stratton Corporation printed warranty. The engine installed on this pump is warranted by Briggs & Stratton Corporation. Page 12... -
Page 13: Otterbine
OTTERBINE® PORTABLE PUMP LIMITED ONE YEAR WARRANTY Otterbine Portable Pump Serial # Please note that this limited one year warranty applies to all components of the OTTERBINE PORTABLE PUMP except for the gasoline engine, which is warranted separately and exclusively by the manufacturer, Briggs &...
