System Installation, Continued
Installation Checklist
Technical Manuals Online! - http://www.tech-man.com
The installation checklist (shown in Table 1) provides a systematic method for
installing the 4009. When you finish a procedural step, place a check mark in
the appropriate box in the left column.

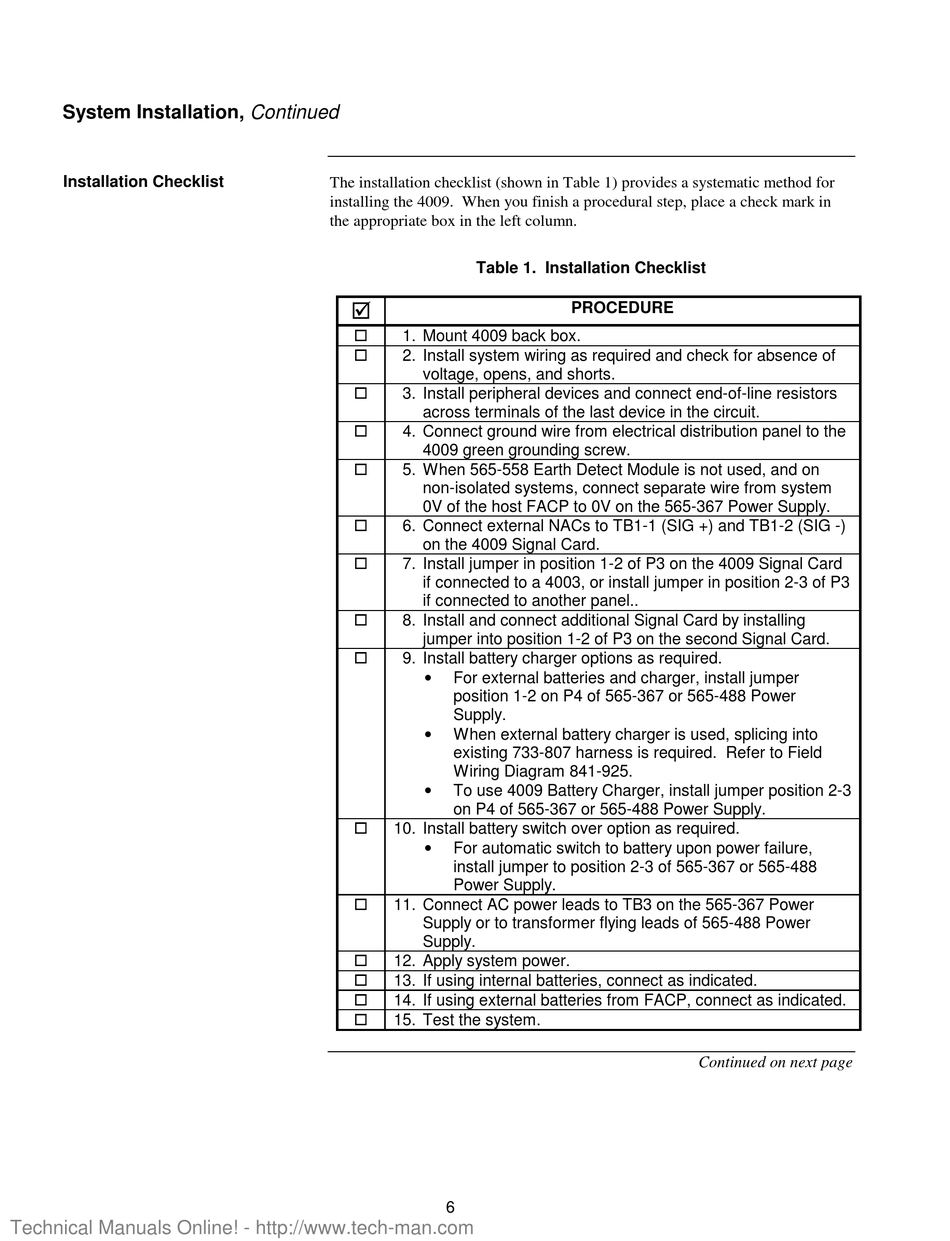

Table 1. Installation Checklist
;
V
1. Mount 4009 back box.
V
2. Install system wiring as required and check for absence of
voltage, opens, and shorts.
V
3. Install peripheral devices and connect end-of-line resistors
across terminals of the last device in the circuit.
V
4. Connect ground wire from electrical distribution panel to the
4009 green grounding screw.
V
5. When 565-558 Earth Detect Module is not used, and on
non-isolated systems, connect separate wire from system
0V of the host FACP to 0V on the 565-367 Power Supply.
V
6. Connect external NACs to TB1-1 (SIG +) and TB1-2 (SIG -)
on the 4009 Signal Card.
V
7. Install jumper in position 1-2 of P3 on the 4009 Signal Card
if connected to a 4003, or install jumper in position 2-3 of P3
if connected to another panel..
V
8. Install and connect additional Signal Card by installing
jumper into position 1-2 of P3 on the second Signal Card.
V
9. Install battery charger options as required.
•
For external batteries and charger, install jumper
position 1-2 on P4 of 565-367 or 565-488 Power
Supply.
•
When external battery charger is used, splicing into
existing 733-807 harness is required. Refer to Field
Wiring Diagram 841-925.
•
To use 4009 Battery Charger, install jumper position 2-3
on P4 of 565-367 or 565-488 Power Supply.
V
10. Install battery switch over option as required.
•
For automatic switch to battery upon power failure,
install jumper to position 2-3 of 565-367 or 565-488
Power Supply.
V
11. Connect AC power leads to TB3 on the 565-367 Power
Supply or to transformer flying leads of 565-488 Power
Supply.
V
12. Apply system power.
V
13. If using internal batteries, connect as indicated.
V
14. If using external batteries from FACP, connect as indicated.
V
15. Test the system.
6
PROCEDURE
Continued on next page
