565-386 or 565-569 STYLE Y (CLASS B) SIGNAL CARD
This module allows supervision of four Style Y (Class B) circuits with one signal
circuit from a 4001, 4002, 4020, or 4100/4100+ (or any reverse polarity signal
circuit operating at 24 VDC). It also accepts a +24V auxiliary alarm input, and
can be supervised by the host FACP. All four signal circuit alarm relays
energize with an alarm from the host signal circuit. A short or open circuit
trouble on any of the four circuits results in an open condition at the host signal
circuit, causing the required trouble indication at the host FACP.
565-388 or 565-545 STYLE Z (CLASS A) SIGNAL CARD
This 565-388 is functionally identical to the 565-386 Signal Card and the
545 is functionally identical to the 565-569 Signal Card, except that these Signal
Cards provide for Style Z (Class A) wiring of outgoing circuits.
A functional block diagram depicting the interconnections between modules is
shown in Figure 2. Alarm signal and 0V connections provide alarm and trouble
operation. The host FACP can detect EARTH faults on any NAC wiring from
the signal card.
0V CONNECTION BETWEEN HOST AND 4009
SEE NOTE
FIELD
WIRING
ALARM CONNECTION BETWEEN HOST AND 4009
ALARM
CONNECTION
SIGNAL CARD #2
4 STYLE Y/Z NACs
(OPTIONAL)
Note:
4009 installed local to host panel:
•
Connect to NAC (+) and Panel 0V when earth detect module is not used.
•
Connect to NAC (+) and NAC (-) when earth detect module is used.
4009 installed remote to host panel:
•
Use earth detect module and connect to NAC (+) and NAC (-).

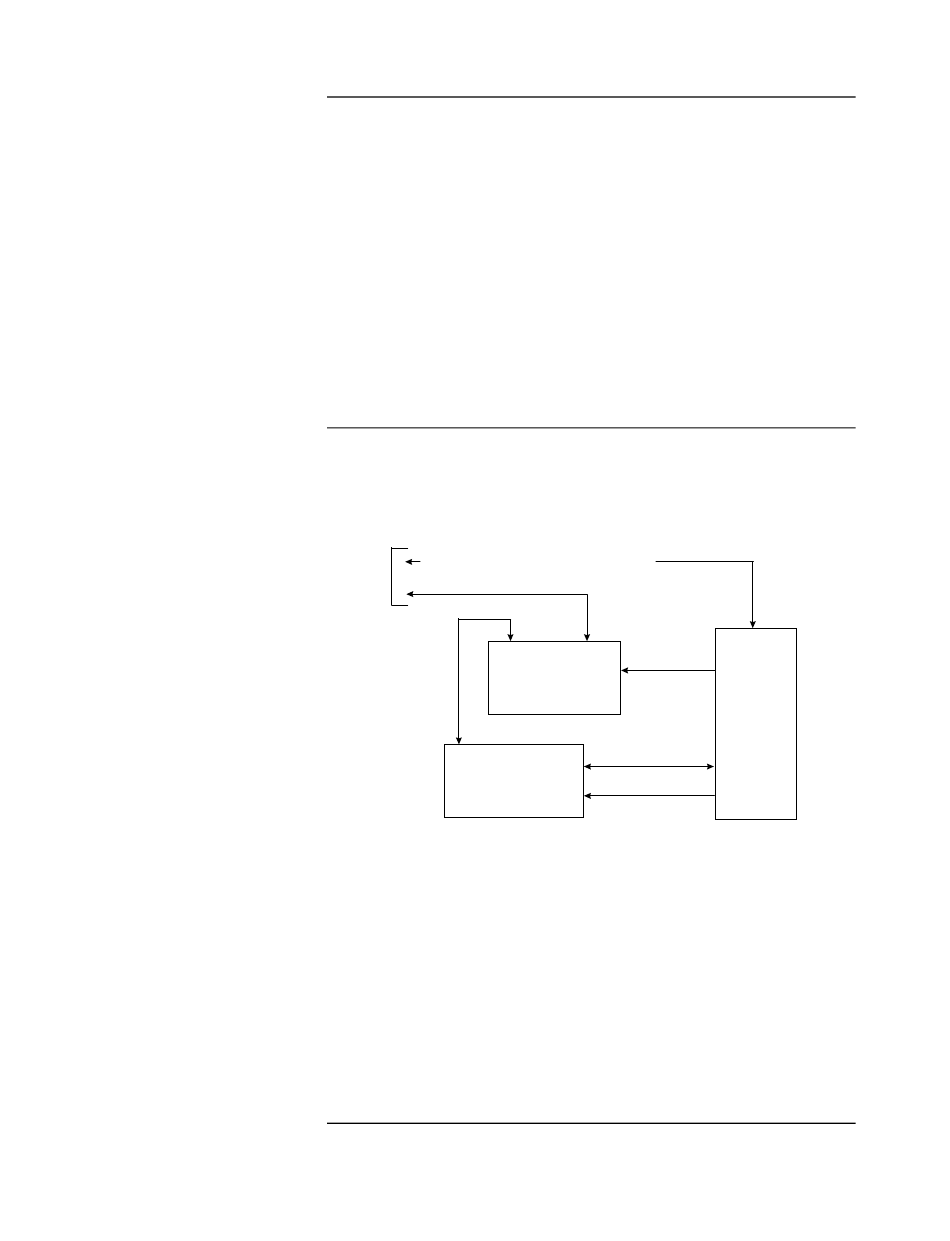

Figure 2. 4009 Functional Block Diagram
Power to the second Signal Card is harnessed in the field, the card is installed as
an after-market option. The 733-805 wiring harness is provided in the after-
market kit, and is connected from P2 of the second signal card to TB1 of the
565-367 or 565-488 Power Supply.
Note:
Make certain that the second Signal Card has its P3 jumper set to
position 1-2.
3
SIGNAL POWER
SIGNAL CARD #1
4 STYLE Y/Z NACs
P. S. MONITOR
SIGNAL POWER
565-
POWER
SUPPLY
