Battery Compartment Installation (Legacy Power Meters Only) - SRAM Quarq DZero Basic Troubleshooting

B a t t e r y C o m p a r t m e n t I n s t a l l a t i o n ( L e g a c y P o w e r M e t e r s O n l y )

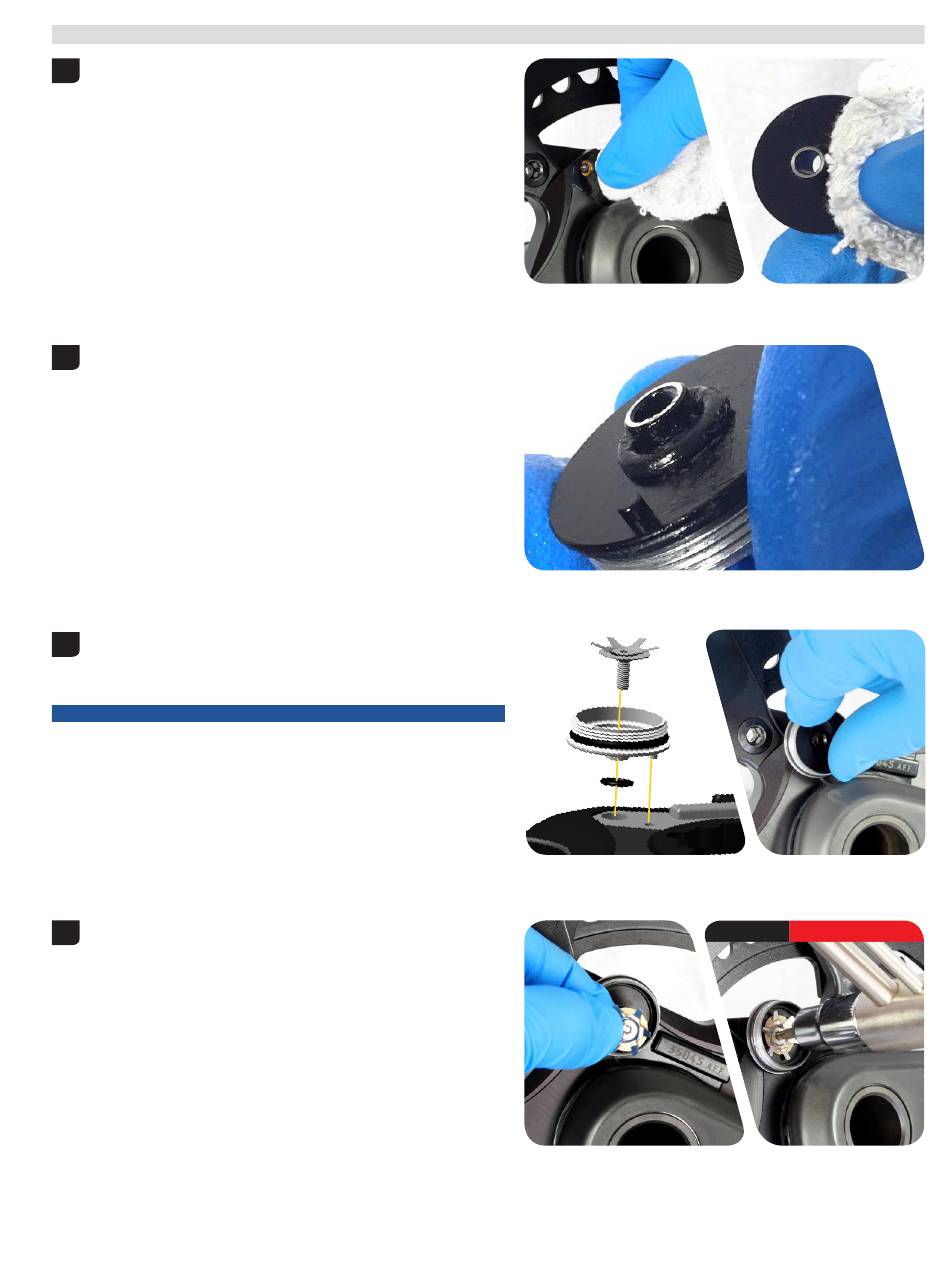

Spray isopropyl alcohol on the battery compartment and spider and
1
clean them with a rag.
Apply SRAM® Butter grease to the o-ring and install it onto the base of
2
the battery compartment.
Install the battery compartment onto the spider lens. Slowly rotate the
3
battery compartment until you feel the clocking pin enter the hole on
the spider. Rotate the compartment back and forth to verify it is fully
seated.
Failure to seat the clocking pin into the hole will prevent the power
meter from working properly and/or cause damage to the spider.
Use your fingers to install the battery compartment screw assembly.
4
Tighten the battery compartment screw.
Apply gentle pressure to the battery compartment as you tighten it to
prevent the clocking pin from becoming unseated.
NOTI CE

Battery Compartment Installation (Legacy Power Meters Only)

2 mm or T10 1.0 N·m (9 in-lb)
