1 3 . C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 ) 1 3 . 1 3 . C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 ) C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 ) C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 )
1 3 . 1 3 . C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 )
This connector is for a chassis-mounted intrusion detection sensor or
switch. Connect one end of the chassis intrusion sensor or switch
cable to this connector. The chassis intrusion sensor or switch sends a
high-level signal to this connector when a chassis component is
removed or replaced. The signal is then generated as a chassis
intrusion event.
By default, the pins labeled "Chassis Signal" and "Ground" are shorted
with a jumper cap. Remove the jumper caps only when you intend to
use the chassis intrusion detection feature.

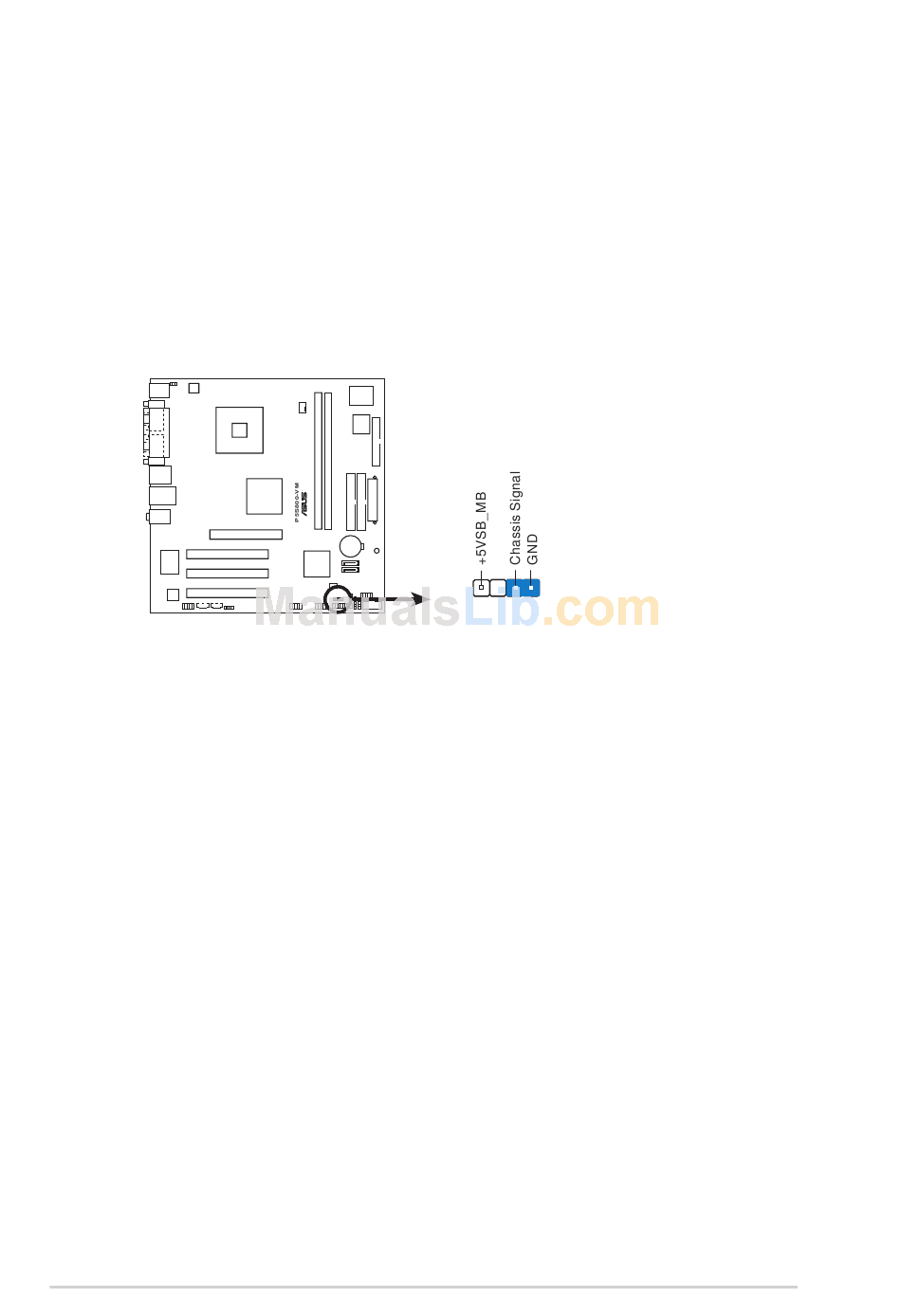

P5S800-VM Chassis intrusion connector
1 - 3 0 1 - 3 0
1 - 3 0 1 - 3 0 1 - 3 0
CHASSIS1
(Default)
