PCI slots

PCI slots
1.8.4 1.8.4 1.8.4 PCI slots PCI slots PCI slots

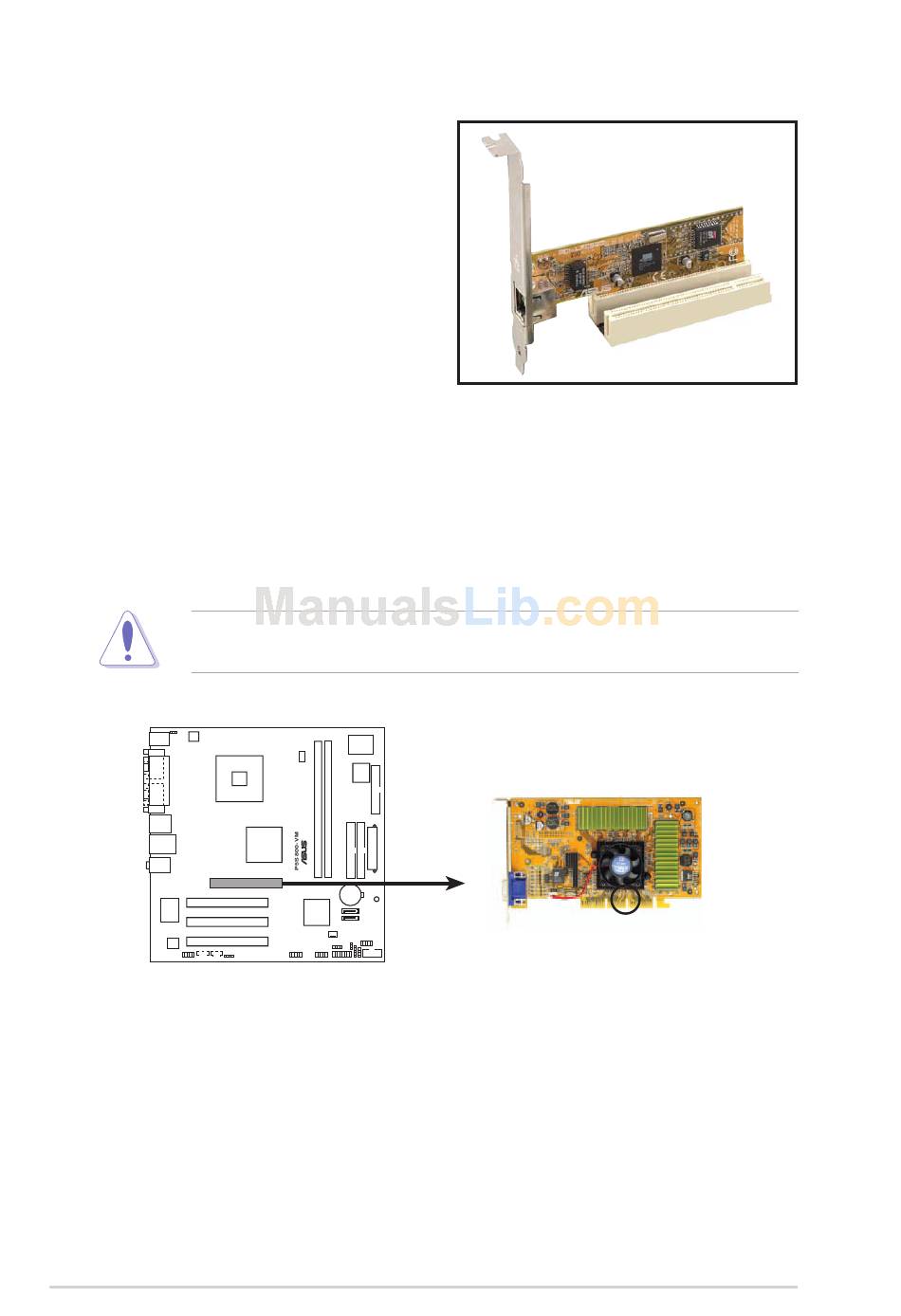

The PCI slots support cards such as a
LAN card, SCSI card, USB card, and
other cards that comply with PCI
specifications. The figure shows a
LAN card installed on a PCI slot.
1.8.5 1.8.5 1.8.5 1.8.5 1.8.5

AGP slot

AGP slot AGP slot AGP slot AGP slot
The Accelerated Graphics Port (AGP) slot supports AGP8X/4X cards. When
you buy an AGP card, make sure that you ask for one with +1.5V
specification. Note the notches on the card golden fingers to ensure that
they fit the AGP slot on your motherboard.
Install only 1.5 V or 0.8 V AGP cards on this motherboard! 3.3V AGP
cards are not supported in this motherboard.
P5S800-VM Accelerated Graphics Port (AGP)
1 - 2 0 1 - 2 0
1 - 2 0 1 - 2 0 1 - 2 0
Keyed for 1.5v
