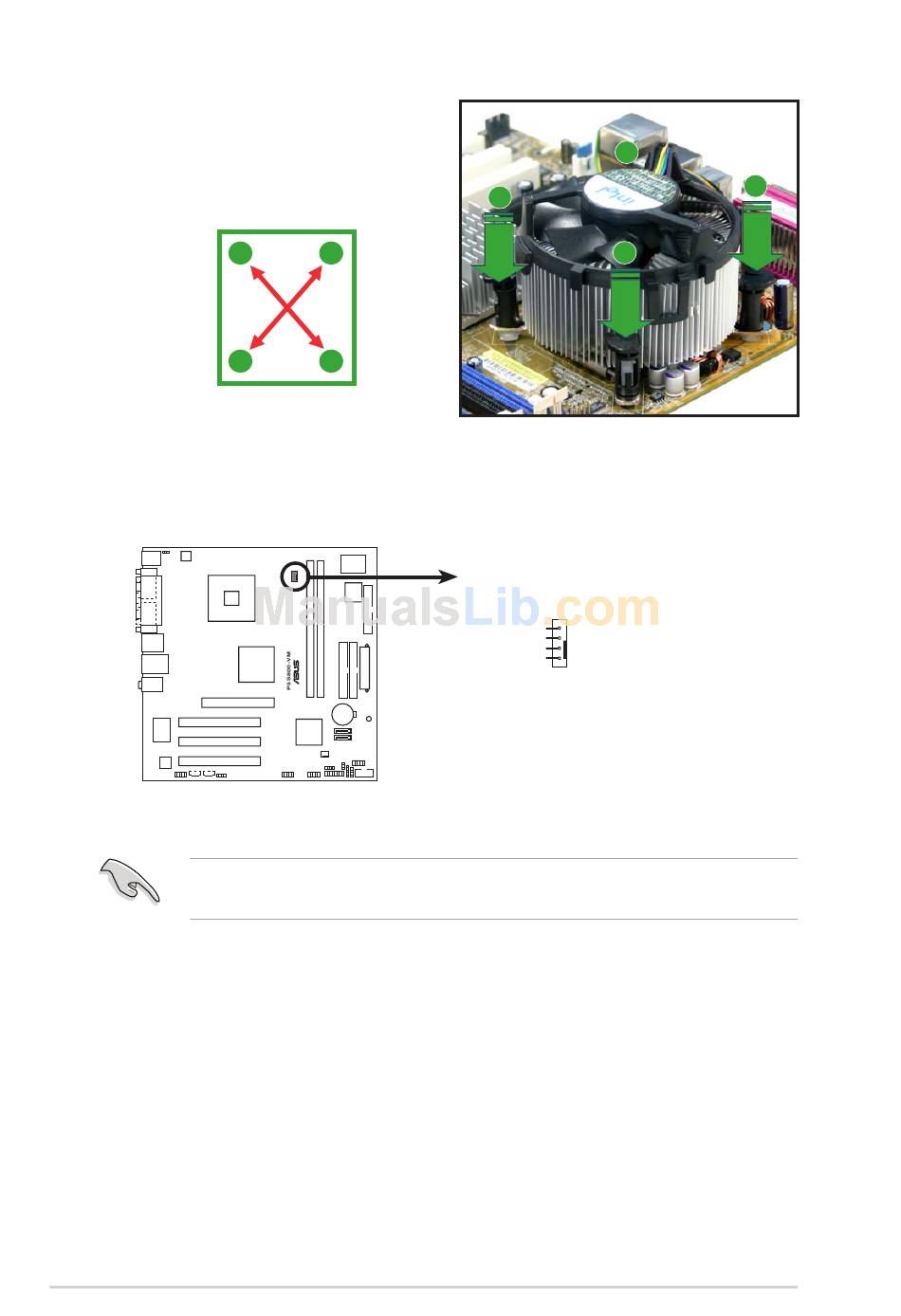

2. Push down two fasteners at a
time in a diagonal sequence to
secure the heatsink and fan
assembly in place.
3. When the fan and heatsink assembly is in place, connect the CPU fan
cable to the connector on the motherboard labeled CPU_FAN1.
P5S800-VM CPU fan connector
Do not forget to connect the CPU fan connector! Hardware monitoring
errors can occur if you fail to plug this connector.
1 - 1 2 1 - 1 2
1 - 1 2 1 - 1 2 1 - 1 2
A B
B
A
B
A
B
CPU_FAN1
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
