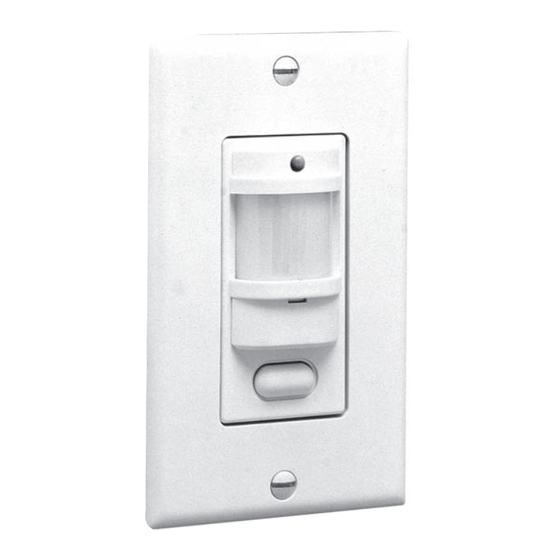

SMART SWITCH OCCUPANCY SENSOR
Installation Manual
Features
Maximum Energy Savings
Sensitive 180° view passive
infrared motion detector keeps
lights on only when rooms are
in use.
Manual ON switch with automatic
OFF saves energy!
Meets California Title 24 standards.
Maximum Coverage
180° wide angle detection pattern.
Lights have to be manually switched
on when someone enters the room .
Covers 1000 square feet, eliminates
the need for multiple sensors.
Superb small movement sensitivity
within 18 feet. Great for sedentary
office use.
No dead spots within 18 zones.
Easy Installation
Works with electronic ballasts.
No minimum load requirement.
Replaces single pole wall switches
without additional wiring.
Decorator style, rectangular switch
plate included.
Only 1/2" protrusion from switch plate.
Maximum Versatility
Switches all types of fluorescent and/or
incandescent lighting.
Fits single or multi-gang boxes without
special adapters.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RAB Lighting LOS800CA
Summary of Contents for RAB Lighting LOS800CA
- Page 1 Features SMART SWITCH OCCUPANCY SENSOR Installation Manual Maximum Energy Savings Maximum Versatility Sensitive 180° view passive Switches all types of fluorescent and/or infrared motion detector keeps incandescent lighting. lights on only when rooms are Fits single or multi-gang boxes without in use.
-
Page 2: Specifications
1. Selecting a Location Wiring: Coverage: Do not locate sensor over or looking at Locate the LOS800CA where it has an unobstructed view of the room, heating vents, baseboard, heaters, 1000 square feet, up to 32’ from Replaces single pole wall switch. -
Page 3: Installation
The supply ground wire must be tightly LOAD secured to ground. Do not use LOS800CA to control The Red LED will blink during 40 LOAD high intensity discharge lights, fans, seconds warm up and lights will heaters, or motors. -
Page 4: Troubleshooting
15 minutes. in other areas. To test the detection pattern of the LOS800CA, make no motion for 8 Lights Do Not Turn Off Sensor has view of seconds. Move sideways up to 12”. -
Page 5: Limited Warranty
Do not attempt to open RAB with a check for $20.00 (payable or repair the unit. There are dangerous to RAB Lighting). We will repair or voltages inside the case and no user replace the unit. serviceable parts.
