Installation Manual
The STEALTH360 is the
most reliable and technically
advanced motion-activated light
control ever produced. This techni-
cal manual is written for electrical
professionals who wish to maximize
the performance and reliability of this
superb sensor.
RAB welcomes your questions
or comments.
Please call 888 722-1000,
or email tech@rabweb.com.
Thank you for purchasing a RAB
sensor.

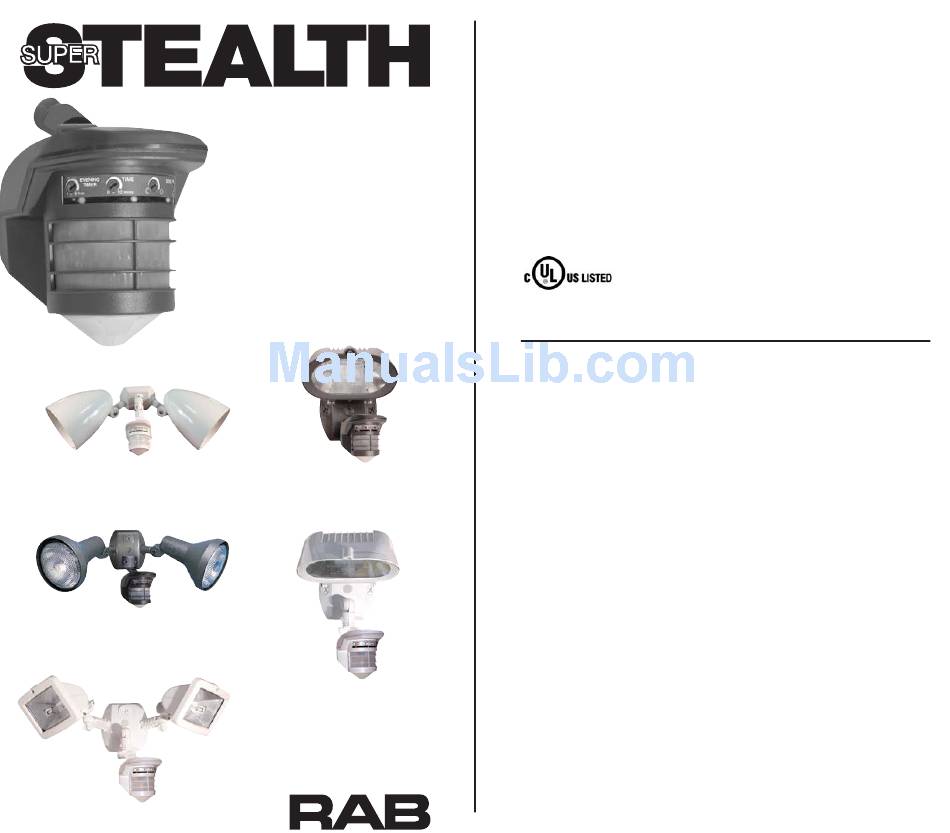

STL360HBW
STL360H
STL360Q2W
STL360Q1
STL360Q3W
Specifications:
Switching Capacity
8 amps
1000 watts Incandescent and 250 watts
Fluorescent
Voltage:
120 volts
Protection Pattern:
180° forward
360° below and to all sides
Time Adjustment:
5 seconds to 12 minutes
Power Consumption:
1 watt
Surge protection:
6000 volts
Cautions:
TURN OFF ALL POWER AT CIRCUIT BREAKER / FUSE PANEL.
■ Read entire Installation Manual before proceeding.
■ All wiring should comply with local electrical codes
and requires a qualified electrician.
■ The total lighting load connected to STL360 must not
exceed (1000 watts incandescent or quartz, 250 watts
fluorescent). To switch more wattage an electrician can
install a relay.
■ Line Carrier Remote Control Systems such as X-10,
Leviton or Radio Shack are incompatible with sensors and
may cause false activations.
■ Do not install sensors on a circuit that feeds motor
loads such as kitchen appliances, HVAC equipment,
washer/dryer, or garage door openers.
■ Sensor functions best when the direction of expected
movement is across its detection pattern, not towards
the sensor.
■ Mount 6'-12' high for optimum range and detection.
