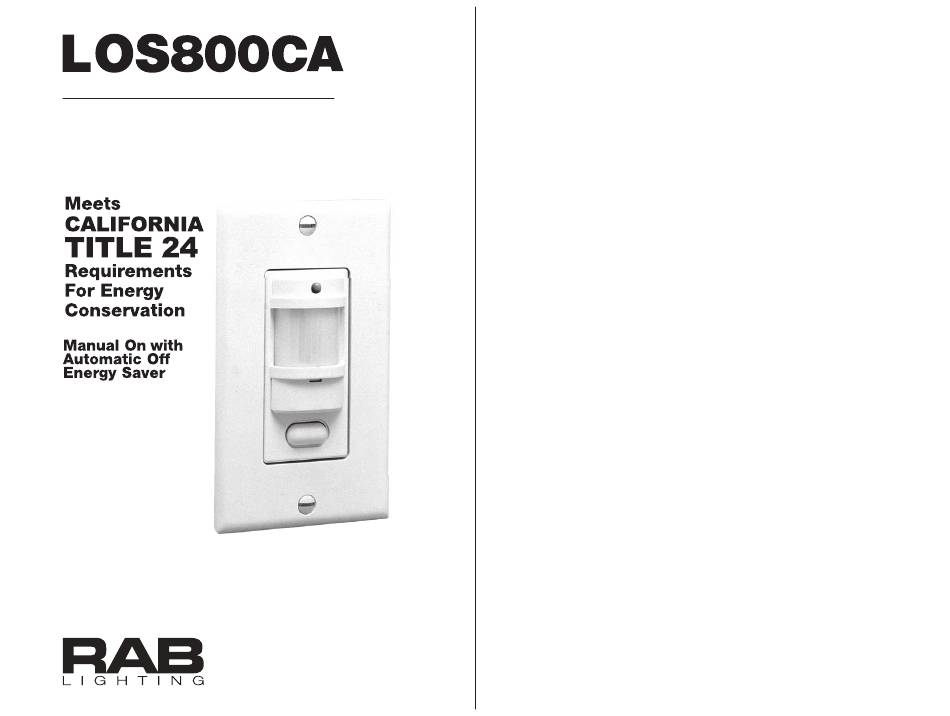

SMART SWITCH OCCUPANCY SENSOR
Installation Manual
Features
Maximum Energy Savings
Sensitive 140° view passive
infrared motion detector keeps
lights on only when rooms are
in use.
Manual ON switch with automatic
OFF saves energy!
Meets California Title 24 standards.
Maximum Coverage
140° wide angle detection pattern.
Lights have to be manually switched
on when someone enters the room
after 15 minutes absense.
covers 850 square feet, eliminates
the need for multiple sensors.
Superb small movement sensitivity
within 18 feet. Great for sedentary
office use.
No dead spots with 18 zones
Easy Installation
Works with electronic ballasts.
No minimum load requirement.
Replaces single pole wall switches
without additional wiring.
Decorator style, rectangular switch
plate included.
Only 1/2" protrusion from switch plate
Fits single or multi-gang boxes without
special adapters.
Maximum Versatility
Switches all types of fluorescent and/or
incandescent lighting.
Fits single or multi-gang boxes without
special adapters.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RAB Lighting LOS800CA
Summary of Contents for RAB Lighting LOS800CA
- Page 1 Features SMART SWITCH OCCUPANCY SENSOR Installation Manual Maximum Energy Savings Maximum Versatility Sensitive 140° view passive Switches all types of fluorescent and/or infrared motion detector keeps incandescent lighting. lights on only when rooms are Fits single or multi-gang boxes without in use.
- Page 2 Power Consumption: 1000 square feet, Negligible up to 32’ from the sensor Locate the LOS800CA where it has If the room is L shaped or the sensor’s Wiring: an unobstructed view of the room, view is badly obstructed from the...
- Page 3 To switch more 7. Attach the wall plate. wattage, an electrician can install a relay to handle the load. COMMON (WHITE) • Do not use LOS800CA to control HOT (BLACK) high intensity discharge lights, LOAD fans, heaters or motors. Small...
- Page 4 To test the detection pattern of the opaque tape. reduce detection in other areas. LOS800CA, make no motion for 30 2. Make sure sensor’s view of the seconds. Move sideways up to 12”. Sensor has view of room is not blocked 3.
- Page 5 We will repair or replace the unit. and no user serviceable parts. Under no circumstances shall we Your LOS800CA will be replaced or be liable for any incidental or con- sequential damages arising out of repaired, at our option, if it proves...
