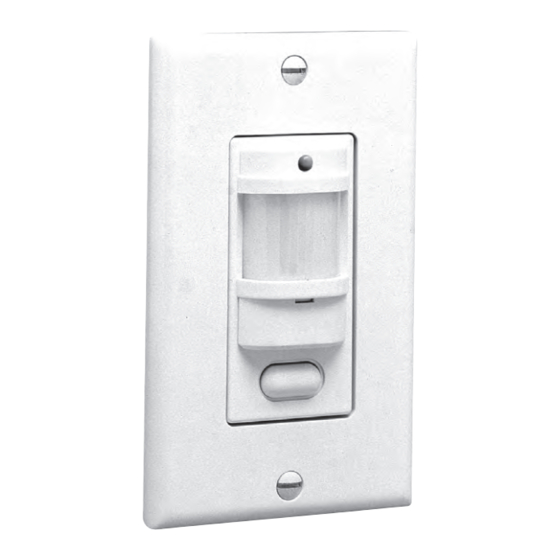

SMART SWITCH OCCUPANCY SENSOR
Installation Manual
Features
Maximum Energy savings
• Sensitive 180 º view passive
infrared motion detector keeps
lights on only when rooms are in
use.
• No ON switch so lights are never
left on by mistake.
• Meets California Title 24 standards.
• Suitable for all utility rebate
programs
Maximum Coverage
• 180 º wide angle detection pattern
• Picks up people entering door-
ways quickly with standard next
to doorway location.
• Covers 1000 square feet, eliminates
needs for multiple sensors.
• Superb small movement sensitivity
within 18 feet. Great for sedentary
office use.
• No dead spots with 18 sensing
fingers.
Easy Installation
• Works with electronic ballasts.
• No minimum load requirement.
• Replaces single pole wall switches
without additional wiring.
• Decorator style, rectangular
switchplate included.
• Only 1/2" protrusion from switch
plate.
• No adjustments required for most
installations.
• Compact design fits standard
switch boxes with plenty of room
for wiring.
• Tamperproof control panel cover
reduces call backs for tampering.
Maximum Versatility
• Switches all types of fluorescent
and/or incandescent lighting.
• Fits single or multi-gang locations
without special adapters.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RAB Lighting LOS800
Summary of Contents for RAB Lighting LOS800
- Page 1 Features SMART SWITCH OCCUPANCY SENSOR Installation Manual Maximum Energy savings • Compact design fits standard switch boxes with plenty of room • Sensitive 180 º view passive for wiring. infrared motion detector keeps lights on only when rooms are in •...
-
Page 2: Specifications
Power Consumption: 1000 square feet, Negligible up to 32’ from the sensor Locate the LOS800 where it has If the room is L shaped or the sensor’s Wiring: an unobstructed view of the room, view is badly obstructed from the... -
Page 3: Installation
To switch more 7. Attach the wall plate. wattage, an electrician can install a relay to handle the load. COMMON (WHITE) • Do not use LOS800 to control HOT (BLACK) high intensity discharge lights, LOAD fans, heaters or motors. Small... -
Page 4: Troubleshooting
To test the detection pattern of the opaque tape. reduce detection in other areas. LOS800, make no motion for 30 2. Make sure sensor’s view of the seconds. Move sideways up to 12”. Sensor has view of room is not blocked 3. -
Page 5: Limited Warranty
We will repair or replace the unit. and no user serviceable parts. Under no circumstances shall we Your LOS800 will be replaced or be liable for any incidental or con- sequential damages arising out of repaired, at our option, if it proves...
