- Page 1 Welcome PIR Micro Sensor LCLCSENSE/P/EG/B/2 WE’RE HERE TO HELP: 1(844) LIGHTCLOUD 1(844) 544-4825...

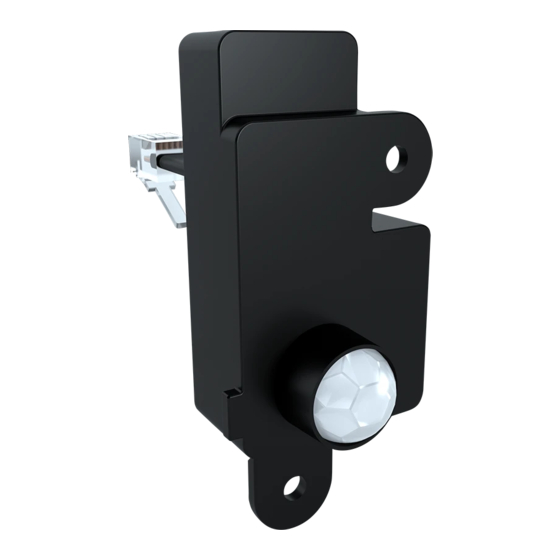

- Page 2 Hello The Lightcloud Blue PIR Micro Sensor is a dual-technology motion detector and daylight sensor that can switch and dim both local and remote circuits. The PIR Micro Sensor is compatible with Lightcloud Blue Controllers and fixtures. WE’RE HERE TO HELP: 1(844) LIGHTCLOUD 1(844) 544-4825 support@lightcloud.com...
-
Page 3: Specifications
Specifications OPERATING TEMPE RATURE PART NUMBER -4°F to 113°F (-20°C to 45°C) LCLCSENSE/P/EG/B/2 SENSOR COVERAGE MOUNTING HEIGHT 20 ft. diameter at 9 ft. 8 to 12 ft. CONNECTOR INPUT RJ09 5VDC DIMENSIONS 1.14”W x 1.33”H x 2.64”D... -
Page 4: Setup And Installation
Setup & Installation The PIR Micro Sensor is only compatible with select sensor-ready fixtures. Visit www.rablighting.com to see the full compatibility list. Mount the PIR Micro Sensor with the tape included. Example shown using RAB's SWISH fixture. PIR Micro Sensor SWISH... - Page 5 Setup & Installation (Cont’d) Connect the PIR Micro Sensor to the Lightcloud Blue Controller. Lightcloud Blue Controller: Use the enclosed RJ09 adapter to connect the PIR Micro Sensor to the Controller. ADAPTER PIR MICRO SENSOR CONTROLLER Wire Female to Short, Wire Female RJ09...
-
Page 6: Sensor Coverage
Sensor Coverage (LCBS) 9’ 10’ 7.5’ 0’ 7.5’ 10’ 10’ 5’ 0’ 20’ 5’ 10’... - Page 7 Configuration All configuration of Lightcloud Blue products may be performed using the Lightcloud Blue mobile app. Learn more at www.rablighting.com 1(844) LIGHTCLOUD 1(844) 544-4825 ©2022 RAB LIGHTING Inc. Custom manufactured in China Pat. rablighting.com/ip...
