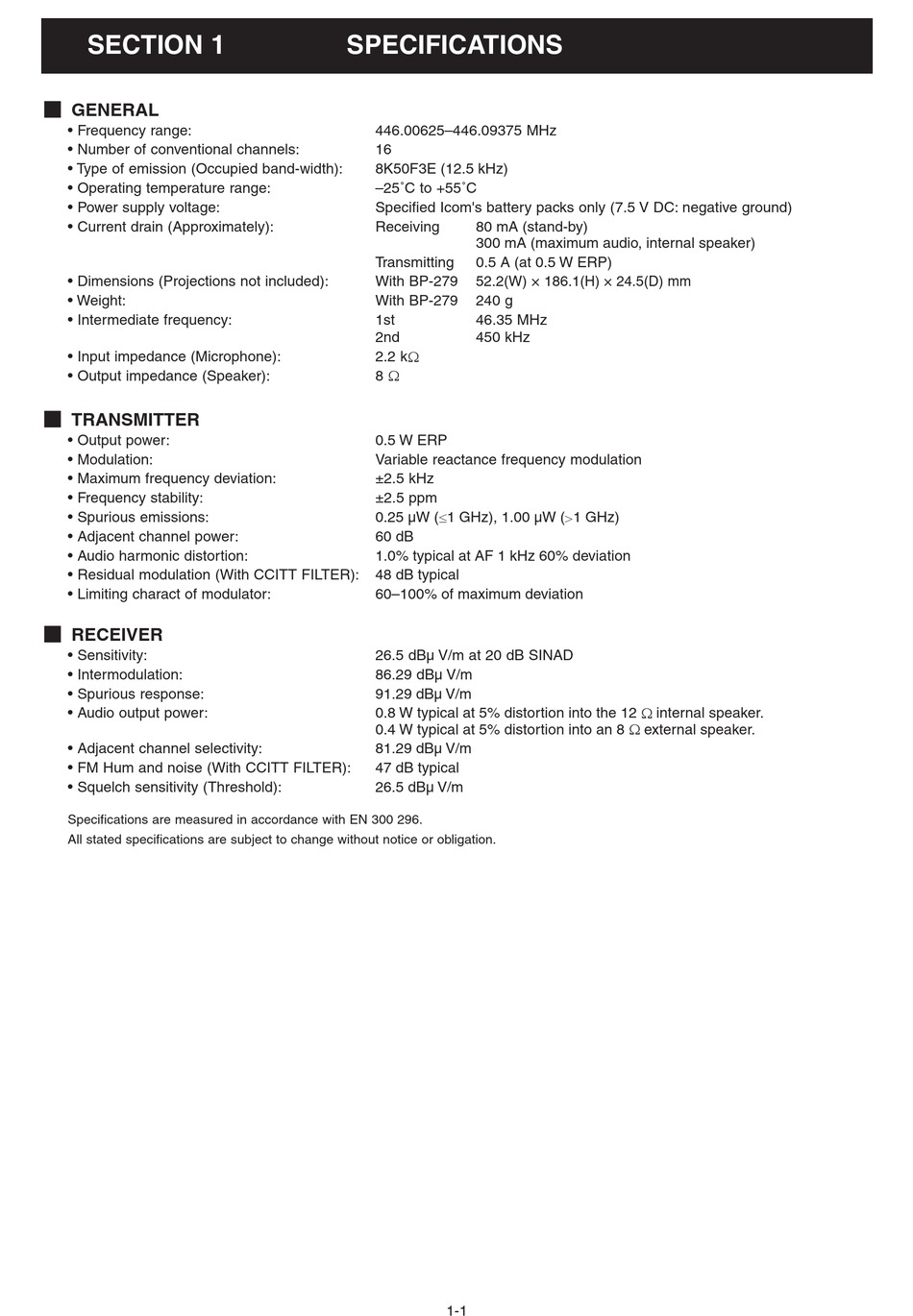

SECTION 1.
M GENERAL
• Frequency range:
• Number of conventional channels:
• Type of emission (Occupied band-width):
• Operating temperature range:
• Power supply voltage:
• Current drain (Approximately):
• Dimensions (Projections not included):
• Weight:
• Intermediate frequency:
• Input impedance (Microphone):
• Output impedance (Speaker):
M TRANSMITTER
• Output power:
• Modulation:
• Maximum frequency deviation:
• Frequency stability:
• Spurious emissions:
• Adjacent channel power:
• Audio harmonic distortion:
• Residual modulation (With CCITT FILTER):
• Limiting charact of modulator:
M RECEIVER
• Sensitivity:
• Intermodulation:
• Spurious response:
• Audio output power:
• Adjacent channel selectivity:
• FM Hum and noise (With CCITT FILTER):
• Squelch sensitivity (Threshold):
Specifications are measured in accordance with EN 300 296.
All stated specifications are subject to change without notice or obligation.
SPECIFICATIONS
446.00625–446.09375 MHz
16
8K50F3E (12.5 kHz)
–25˚C to +55˚C
Specified Icom's battery packs only (7.5 V DC: negative ground)
Receiving 80 mA (stand-by)
300 mA (maximum audio, internal speaker)
Transmitting 0.5 A (at 0.5 W ERP)
With BP-279 52.2(W) × 186.1(H) × 24.5(D) mm
With BP-279 240 g
1st 46.35 MHz
2nd 450 kHz
2.2 k
8 
0.5 W ERP
Variable reactance frequency modulation
±2.5 kHz
±2.5 ppm
0.25 µW (1 GHz), 1.00 µW (1 GHz)
60 dB
1.0% typical at AF 1 kHz 60% deviation
48 dB typical
60–100% of maximum deviation
26.5 dBµ V/m at 20 dB SINAD
86.29 dBµ V/m
91.29 dBµ V/m
0.8 W typical at 5% distortion into the 12  internal speaker.
0.4 W typical at 5% distortion into an 8  external speaker.
81.29 dBµ V/m
47 dB typical
26.5 dBµ V/m
1-1
