Operating instructions
Automatic start/stop system for emergency gensets
For product: KEA 291 NSTR
File: BA_KEA 291 NSTR_EN_Ver 2015-03-20 (Replaces ver. 12-09-24)
1.
Use and basic operation
The KEA 291 NSTR automatic system is used in emergency power systems.
The function of the output relays and the parameters can be set with a PC.
Because the KEA 291 has the same dimensions and fastenings as its predecessor, replacement is

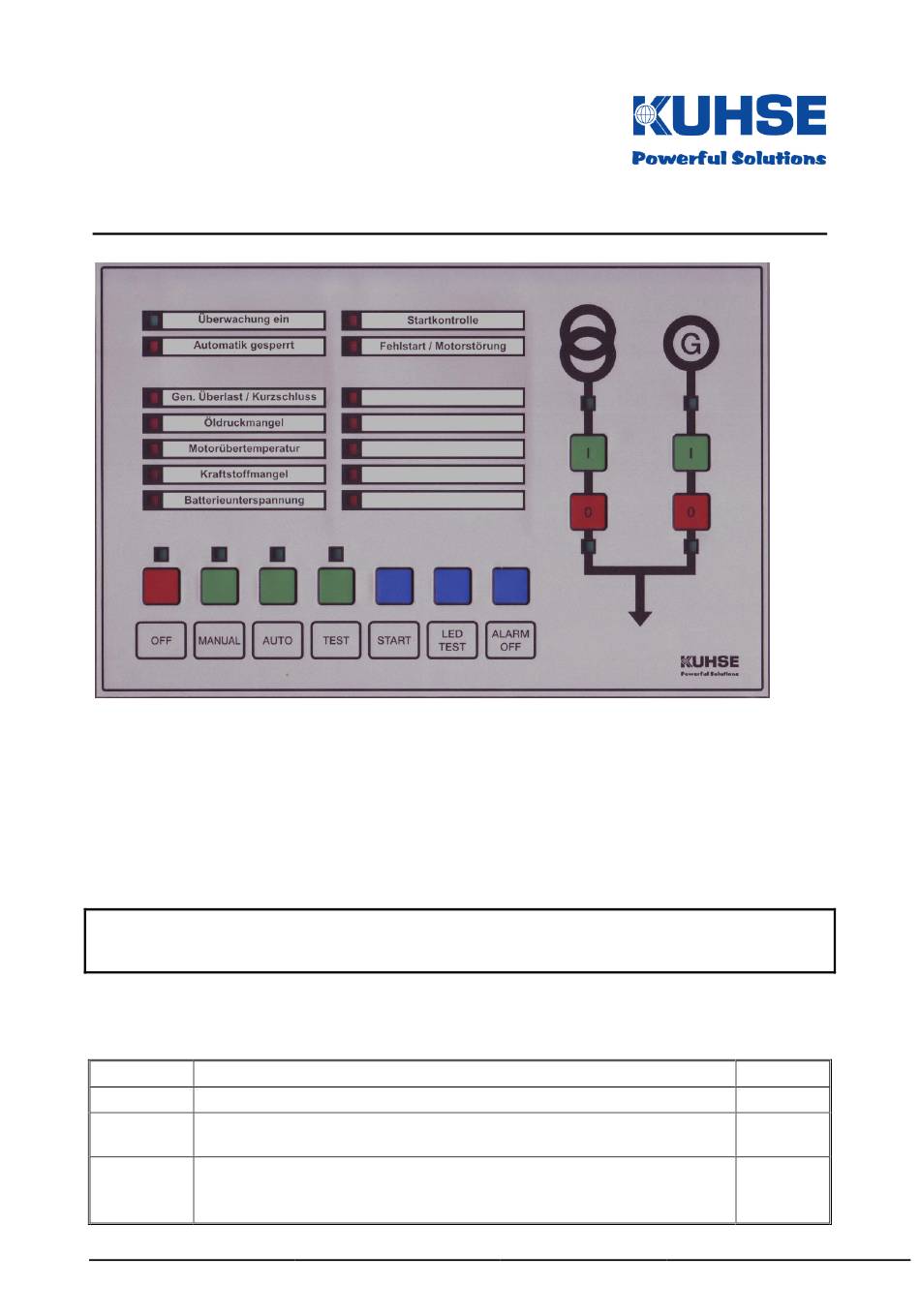

simple. Ten parameterisable alarm and operating indicators – which can be labelled by easily
replaceable paper strips – as well as four general displays are displayed through LEDs. The pa-
rameterisation can be performed using the serial USB interface with the P
program.
Important note!
The operation of the automatic system is simple and uncomplicated as it is carried out via the usual
buttons – without menu guidance – as for all previous automatic systems.
2.
Revision history
Created
Changed
12-09-24
First edition
15/01/2015
Connection diagrams updated, layout changed, drawings renewed
2015-08-28
Technical data: 1. Removed "for coupling onto an add-on module" (serial
interface) 2. Options in preparation: RS-485 interface + GSM modem
Scale drilling template inserted.
1
Alfred Kuhse GmbH
An der Kleinbahn 39,21423 Winsen
Telephone: +49 4171-798-0
Fax: +49 (0) 4171-798-117
W
ARA
E-mail: kuhse@kuhse.de
Subject to technical changes
http://www.kuhse.de
parameterisation
IN
Version
12-09-24
2015-03-
20
