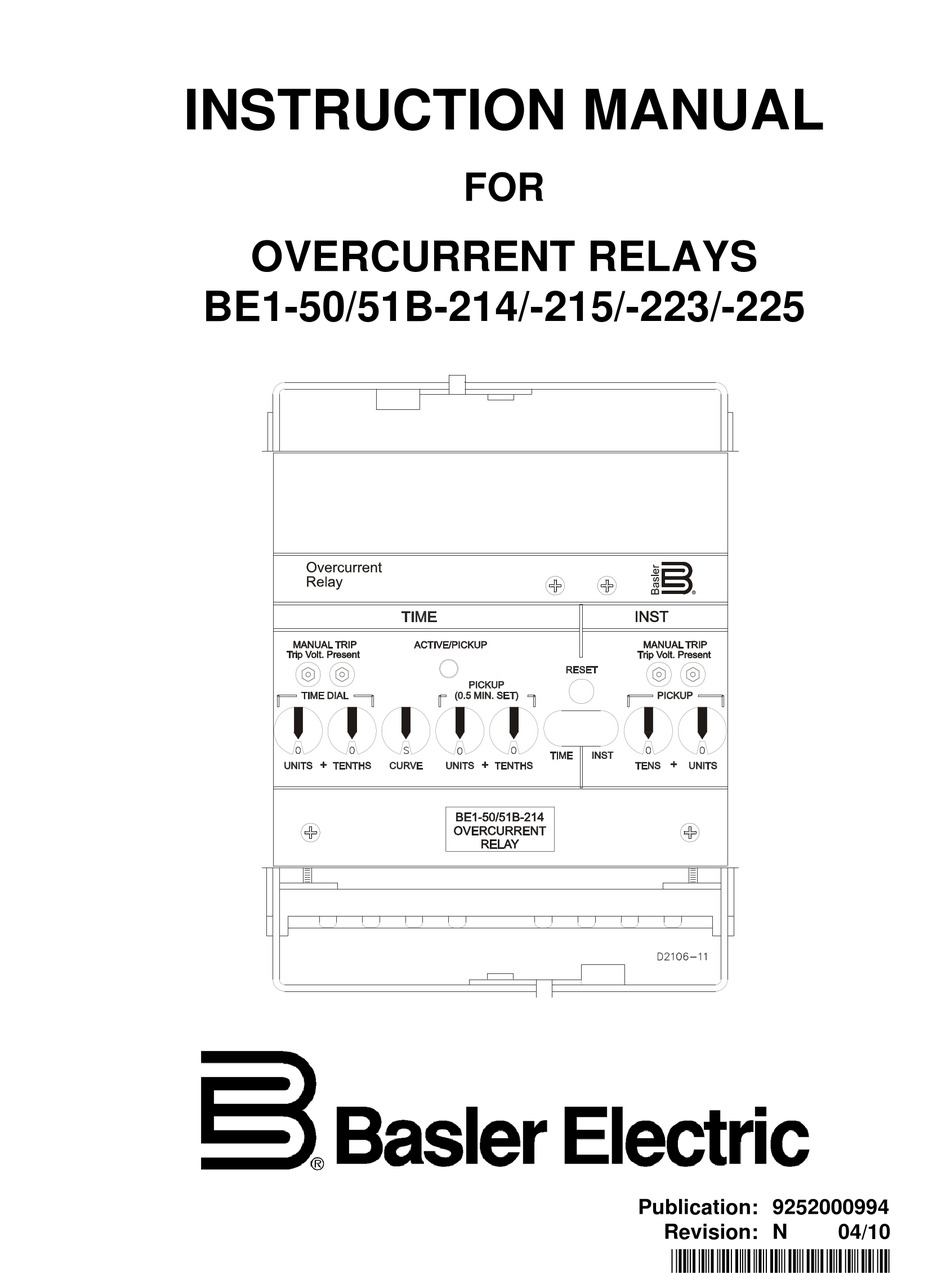

INSTRUCTION MANUAL
FOR
OVERCURRENT RELAYS
BE1-50/51B-214/-215/-223/-225
Publication: 9252000994
Revision: N
04/10
*9252000994*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1-50/51B-214 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Basler BE1-50/51B-214

Summary of Contents for Basler BE1-50/51B-214

  • Page 1 INSTRUCTION MANUAL OVERCURRENT RELAYS BE1-50/51B-214/-215/-223/-225 Publication: 9252000994 Revision: N 04/10 *9252000994*...
  • Page 3 INTRODUCTION This instruction manual provides information about the operation and installation of the BE1-50/51B-214/- 215/-223/-225 Overcurrent Relays. To accomplish this, the following information is provided:  General Information and Specifications  Controls and Indicators  Functional Description  Installation and Maintenance ...
  • Page 4 April 2010 CONFIDENTIAL INFORMATION of Basler Electric, Highland Illinois, USA. It is loaned for confidential use, subject to return on request, and with the mutual understanding that it will not be used in any manner detrimental to the interest of Basler Electric.
  • Page 5 Changed Figure 5-2 and all references to the target testing current source from 0.2 to 1.0 amperes.  Corrected various, minor typographical errors in Sections 1 and 2.  A, 08/95 Removed all references to switch SW8-4 being field settable.  —, 07/95 Initial release 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Introduction...
  • Page 6 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Introduction 9252000994 Rev N...

  • Page 7: Table Of Contents

    SECTION 2 • CONTROLS AND INDICATORS ..................2-1 SECTION 3 • FUNCTIONAL DESCRIPTION ................... 3-1 SECTION 4 • INSTALLATION ........................4-1 SECTION 5 • TESTING ..........................5-1 APPENDIX A • TIME CHARACTERISTIC CURVES ................A-1 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Introduction...
  • Page 8 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Introduction 9252000994 Rev N...
  • Page 9 Table 1-1. GE IAC Relays Suitable For Direct Replacement ..............1-1 Table 1-2. Time Characteristic Curve Constants with SW3-3 Open (Off) ..........1-3 Table 1-3. Time Characteristic Curve Constants with SW3-3 Closed (On) ..........1-4 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 General Information...
  • Page 10 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 General Information 9252000994 Rev N...

  • Page 11: Table 1-1. Ge Iac Relays Suitable For Direct Replacement

    INTRODUCTION BE1-50/51B-214/-215/-223/-225 protective relays are direct replacements for General Electric, IAC relays. The BE1-50/51B-214/-215/-223 has a 5 ampere current sensing input. The BE1-50/51B-225 has a 1 ampere current sensing input. Compatible IAC model numbers are listed in Table 1-1. Table 1-1. GE IAC Relays Suitable For Direct Replacement...

  • Page 12: Current Sensing Input

    The timing accuracy is the sum of ±1 cycle, ±2%. This accuracy applies to the range of 1.3 to 40 times tap and is for a given measured multiple of tap. The measurement of the multiple of tap has an accuracy that is the sum of ±2%, ±25 milliamperes for the BE1-50/51B-214/-215/-223 and ±2%, ±5 milliamperes for the BE1-50/51B-225.

  • Page 13: Table 1-2. Time Characteristic Curve Constants With Sw3-3 Open (Off)

    Timing Accuracy Example (BE1-50/51B-214/-215/-223) PU setting: 5 amperes Current Applied: 6.5 amperes + Multiple Tolerance: 6.655 amperes – Multiple Tolerance: 6.345 amperes Time Curve: Time Dial: Minimum time dial using 6.655 amperes: 46.5470 seconds Maximum time dial using 61.3968 amperes: 61.3968 seconds...

  • Page 14: Table 1-3. Time Characteristic Curve Constants With Sw3-3 Closed (On)

    Integrating Reset Reset begins when the current drops below 95% of pickup. Integrating reset simulates the disk reset of electromechanical relays. BE1-50/51B-214/-215/-223/-225 relays provide the integrating reset function even when input current falls to zero. Integrating reset characteristics are defined by the following equation and shown in Figure 1-1. Equation constants are provided in Tables 1-2 or 1-3.

  • Page 15: Instantaneous Overcurrent (50) Element

    Section 2 illustrates the location of SW3. The instantaneous element in BE1-50/51B-214/-215/-223/-225 relays may be set lower than the instantaneous element in IAC relays and still have the same reach. This is because the BE1-50/51B-214/- 215/-223/-225 instantaneous element effectively eliminates the fault current transient overreach components.

  • Page 16: Burden

    Figure 1-2. Instantaneous Characteristic Curves Burden Burden is non-linear. Figure 1-3 illustrates the device burden. BE1-50/51B-214/-215/-223 4.8 Ω At 0.5 amperes: 0.2 Ω At 5.0 amperes: BE1-50/51B-225 120 Ω At 0.1 ampere: 5 Ω At 1.0 ampere: BE1-50/51B-214/-215/-223/-225 General Information 9252000994 Rev N...

  • Page 17: Frequency Response

    Figure 1-4 shows that a relay set for 1 ampere pickup would pick up at 0.96 amperes with a current containing 40% seventh harmonic. This corresponds to a 10:1 rejection ratio. Other conditions may be evaluated in the same manner. 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 General Information...

  • Page 18: Target Indicators

    Type Tests Isolation Meets IEC 255-5 and exceeds IEEE C37.90-1989, one-minute dielectric (high potential) tests as follows. All circuits to ground: 2,828 Vdc or 2,000 Vac Input to Output Circuits: 2,828 Vdc or 2,000 Vac BE1-50/51B-214/-215/-223/-225 General Information 9252000994 Rev N...

  • Page 19: Environment

    –40°C to 70°C (–40°F to158°F) Operating Temperature: –50°C to 70°C (–58°F to 158°F). Storage Temperature: Agency Recognition GOST-R Certification GOST-R certified per the relevant standards of Gosstandart of Russia. Physical Weight: 6.1 lb (2.77 kg) 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 General Information...
  • Page 20 This page intentionally left blank. 1-10 BE1-50/51B-214/-215/-223/-225 General Information 9252000994 Rev N...

  • Page 21: Section 2 • Controls And Indicators

    INTRODUCTION............................ 2-1 Figures Figure 2-1. Front Panel Controls and Indicators ..................2-1 Figure 2-2. Location of SW3 ........................2-2 Tables Table 2-1. BE1-50/51B-214/-215/-223/-225 Controls and Indicators (Refer to Figures 2-1 and 2-2) ..2-3 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Controls and Indicators...
  • Page 22 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Controls and Indicators 9252000994 Rev N...
  • Page 23 SECTION 2 • CONTROLS AND INDICATORS INTRODUCTION Figure 2-1 illustrates the front panel controls and indicators of the BE1-50/51B-214/-215/-223/-225. Figure 2-2 illustrates the location of switch SW3. Both illustrations have lettered call-outs that correspond to the control and indicator descriptions provided in Table 2-1.
  • Page 24 Figure 2-2. Location of SW3 BE1-50/51B-214/-215/-223/-225 Controls and Indicators 9252000994 Rev N...
  • Page 25 Table 2-1. BE1-50/51B-214/-215/-223/-225 Controls and Indicators (Refer to Figures 2-1 and 2-2) Locator Control or Indicator Function When shorted, the test points (jacks) provide a secure means to INST MANUAL TRIP manually trip the controlled breaker. Jacks accept a standard 0.08 Test Points inch diameter phone tip plug.
  • Page 26 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Controls and Indicators 9252000994 Rev N...

  • Page 27: Section 3 • Functional Description

    Microprocessor ........................... 3-1 Power-Off Sensing ..........................3-1 Outputs ............................... 3-2 Figures Figure 3-1. Functional Block Diagram, BE1-50/51B-214/-225 ..............3-2 Figure 3-2. Functional Block Diagram, BE1-50/51B-215 ................3-2 Figure 3-3. Functional Block Diagram, BE1-50/51B-223 ................3-3 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Functional Description...
  • Page 28 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Functional Description 9252000994 Rev N...
  • Page 29 SECTION 3 • FUNCTIONAL DESCRIPTION GENERAL BE1-50/51B-214/-215/-223/-225 Overcurrent Relays are microprocessor based non-directional relays that measure ac current to provide secure and reliable instantaneous and time overcurrent protection for power systems. FUNCTIONAL DESCRIPTION Sensing Input Single phase ac current from system current transformers (CT) is brought into the Overcurrent Relay at terminals 5 and 6.
  • Page 30 Trip circuit voltage is present at the front panel test points. When shorting the test points, use insulated jumpers to avoid contact with these voltages. Figure 3-1. Functional Block Diagram, BE1-50/51B-214/-225 Figure 3-2. Functional Block Diagram, BE1-50/51B-215 BE1-50/51B-214/-215/-223/-225 Functional Description...
  • Page 31 Figure 3-3. Functional Block Diagram, BE1-50/51B-223 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Functional Description...
  • Page 32 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Functional Description 9252000994 Rev N...

  • Page 33: Section 4 • Installation

    Figures Figure 4-1. Coordination Timing Diagram ....................4-2 Figure 4-2. AC Input Connections ......................4-3 Figure 4-3. DC Control Connections, BE1-50/51B-214/-225 ..............4-4 Figure 4-4. DC Control Connections, BE1-50/51B-215 ................4-5 Figure 4-5. DC Control Connections, BE1-50/51B-223 ................4-6 9252000994 Rev N...
  • Page 34 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Installation 9252000994 Rev N...
  • Page 35 • Reinstall the existing connection plug. • To install the cover, position the interlocking bracket at the top of the new Basler Electric cover into the mating receptacle at the top of the cover adapter plate. Secure the captive fastener at the bottom of the cover.
  • Page 36 Equation for time to trip during rewind (before relay is reset). Full Trip Rewind Time Trip This Occurence Full Rewind Second Operation )( ) 0.209 15.5 0.040 seconds Third Operation 0.209 11.96 15.5 0.161 seconds BE1-50/51B-214/-215/-223/-225 Installation 9252000994 Rev N...
  • Page 37 CONNECTIONS Typical ac input connections for the BE1-50/51B-214/-215/-223/-225 are shown in Figure 4-2. Typical dc control connections for the BE1-50/51B-214/-225 are shown in Figure 4-3. Typical dc control connections for the BE1-50/51B-215 are shown in Figure 4-4. Typical dc control connections for the BE1-50/51B-223 are shown in Figure 4-5.
  • Page 38 Figure 4-3. DC Control Connections, BE1-50/51B-214/-225 BE1-50/51B-214/-215/-223/-225 Installation 9252000994 Rev N...
  • Page 39 Figure 4-4. DC Control Connections, BE1-50/51B-215 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Installation...
  • Page 40 Figure 4-5. DC Control Connections, BE1-50/51B-223 MAINTENANCE BE1-50/51B-214/-215/-223/-225 overcurrent relays require no preventive maintenance. However, periodic checks should be performed according to scheduled practices. A recommended periodic test is provided in Section 5. If the relay fails to function properly, contact the Technical Sales Support Department of Basler Electric.

  • Page 41: Section 5 • Testing

    DIELECTRIC TEST ..........................5-1 OPERATIONAL TEST PROCEDURE ....................5-1 Test Equipment Required ........................5-1 Test Procedure, Models BE1-50/51B-214/-215/-223 (Five Ampere Sensing Input) ......5-5 Test Procedure, Model BE1-50/51B-225 (One Ampere Sensing Input) ..........5-7 SETTING THE RELAY .......................... 5-9 PERIODIC TESTS ..........................5-9 General ...............................
  • Page 42 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Testing 9252000994 Rev N...

  • Page 43: Section 5 • Testing

    The following procedures verify operation of relays BE1-50/51B-214/-215/-223 (5 ampere model) and BE1-50/51B-225 (1 ampere model). The test setup of Figures 5-1 and 5-2 (BE1-50/51B-214/-225) are intended primarily as an illustration of the principles involved. The BE1-50/51B-215 is illustrated in Figures 5-3 and 5-4.
  • Page 44 TEST SET CURRENT AMPS SOURCE BE1-50/51B-214/-225 START INST TIME P0059-08 STOP TIMER INPUT Figure 5-1. Pickup and Timing Test Setup, BE1-50/51B-214/-225 TEST SET CURRENT AMPS SOURCE BE1-50/51B-214/-225 START P0059-09 INST TIME R = V/1 STOP TIMER Rwatts = 1*V INPUT...
  • Page 45 TEST SET CURRENT AMPS SOURCE BE1-50/51B-215 START P0059-06 INST TIME R = V/1 STOP TIMER Rwatts = 1*V INPUT AC or DC Voltage Source 1 A Target Current Figure 5-4. Target Operational Test Setup, BE1-50/51B-215 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Testing...
  • Page 46 TEST SET CURRENT AMPS SOURCE BE1-50/51B-223 INST TIME START P0061-21 R = V/1 Rwatts = 1*V STOP TIMER INPUT AC or DC Voltage Source 1 A Target Current Figure 5-6. Target Operational Test Setup, BE1-50/51B-223 BE1-50/51B-214/-215/-223/-225 Testing 9252000994 Rev N...

  • Page 47: Test Procedure, Models Be1-50/51B-214/-215/-223 (Five Ampere Sensing Input)

    Time Pickup Test Perform preliminary setup: • Connect test setup as shown in Figure 5-1 (BE1-50/51B-214), Figure 5-3 (BE1-50/51B-215), or Figure 5-5 (BE1-50/51B-223). • Insure that SW3 switches are set: SW3-1 for the operating frequency, SW3-2 to OFF, SW3-3 to ON and SW3-4 to ON.
  • Page 48 Step 3. Remove input current. Target Test Perform preliminary setup: • Connect test setup as shown in Figure 5-2 (BE1-50/51B-214), Figure 5-4 (BE1-50/51B-215), or Figure 5-6 (BE1-50/51B-223). • Insure that SW3 switches are set: SW3-1 for the operating frequency, SW3-2 to OFF, SW3-3 to ON, and SW3-4 ON.

  • Page 49: Test Procedure, Model Be1-50/51B-225 (One Ampere Sensing Input)

    Integrating Reset Test Perform preliminary setup: • Connect test setup as shown in Figure 5-1 (BE1-50/51B-214), Figure 5-3 (BE1-50/51B-215), or Figure 5-5 (BE1-50/51B-223). • Insure that SW3 switches are set: SW3-1 for the operating frequency, SW3-2 to OFF, SW3-3 to ON, and SW3-4 ON.
  • Page 50 Trip circuit voltage is present at the front panel test points. When shorting the test points, use insulated jumpers to avoid contact with these voltages. Step 1. Set voltage source to provide a target current of 1.0 ampere. BE1-50/51B-214/-215/-223/-225 Testing 9252000994 Rev N...

  • Page 51: Setting The Relay

    All relays should be tested periodically to identify and correct any problems that are found. Single phase relays such as the BE1-50/51B-214/-215/-223/-225 are normally used in groups of four (three phase and ground) on the protected circuit. This relay scheme allows each unit to be withdrawn one at a time for testing purposes without losing protection.
  • Page 52 This page intentionally left blank. 5-10 BE1-50/51B-214/-215/-223/-225 Testing 9252000994 Rev N...
  • Page 53 Figure A-12. Time Characteristic Curve, I2-Inverse (SW3-3 ON, Similar to GE IAC 51) ......A-12 Figure A-13. Time Characteristic Curve, V2-Very Inverse (SW3-3 ON, Similar to GE IAC 53) ....A-13 Figure A-14. Time Characteristic Curve, E2-Extremely Inverse (SW3-3 ON, Similar to GE IAC 77) ..A-14 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves...
  • Page 54 This page intentionally left blank. BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves 9252000994 Rev N...

  • Page 55: Appendix A • Time Characteristic Curves

    TIME CHARACTERISTIC CURVES Figures A-1 through A-14 illustrate the time characteristic curves that are programmed into the nonvolatile memory of this relay. Figure A-1. Time Characteristic Curve, S-Short Inverse (SW3-3 OFF, Similar to ABB CO-2) 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves...
  • Page 56 Figure A-2. Time Characteristic Curve, L-Long Inverse (SW3-3 OFF, Similar to ABB CO-5) BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves 9252000994 Rev N...
  • Page 57 Figure A-3. Time Characteristic Curve, D-Definite Time (Similar to ABB CO-6) 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves...
  • Page 58 Figure A-4. Time Characteristic Curve, M-Moderately Inverse (Similar to ABB CO-7) BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves 9252000994 Rev N...
  • Page 59 Figure A-5. Time Characteristic Curve, I-Inverse (SW3-3 OFF, Similar to ABB CO-8) 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves...
  • Page 60 Figure A-6. Time Characteristic Curve, V-Very Inverse (SW3-3 OFF, Similar to ABB CO-9) BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves 9252000994 Rev N...
  • Page 61 Figure A-7. Time Characteristic Curve, E-Extremely Inverse (SW3-3 OFF, Similar to ABB CO-11) 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves...
  • Page 62 Figure A-8. Time Characteristic Curve, BS142-B (BS142 Very Inverse) BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves 9252000994 Rev N...
  • Page 63 Figure A-9. Time Characteristic Curve, BS142-C (BS142 Extremely Inverse) 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves...
  • Page 64 Figure A-10. Time Characteristic Curve, S2-Short Inverse (SW3-3 ON, Similar to GE IAC 55) A-10 BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves 9252000994 Rev N...
  • Page 65 Figure A-11. Time Characteristic Curve, L2-Long Inverse (SW3-3 ON, Similar to GE IAC 66) 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves A-11...
  • Page 66 Figure A-12. Time Characteristic Curve, I2-Inverse (SW3-3 ON, Similar to GE IAC 51) A-12 BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves 9252000994 Rev N...
  • Page 67 Figure A-13. Time Characteristic Curve, V2-Very Inverse (SW3-3 ON, Similar to GE IAC 53) 9252000994 Rev N BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves A-13...
  • Page 68 Figure A-14. Time Characteristic Curve, E2-Extremely Inverse (SW3-3 ON, Similar to GE IAC 77) A-14 BE1-50/51B-214/-215/-223/-225 Time Characteristic Curves 9252000994 Rev N...
  • Page 70 ROUTE 143, BOX 269 HIGHLAND, IL 62249 USA http://www.basler.com, info@basler.com PHONE +1 618-654-2341 FAX +1 618-654-2351...

This manual is also suitable for:

Be1-50/51b-215Be1-50/51b-223Be1-50/51b-225

Table of Contents
