Basler BE1-50 Instruction Manual

Instantaneous overcurrent relay
Hide thumbs Also See for BE1-50:
Table of Contents

Advertisement

Quick Links

Download this manual

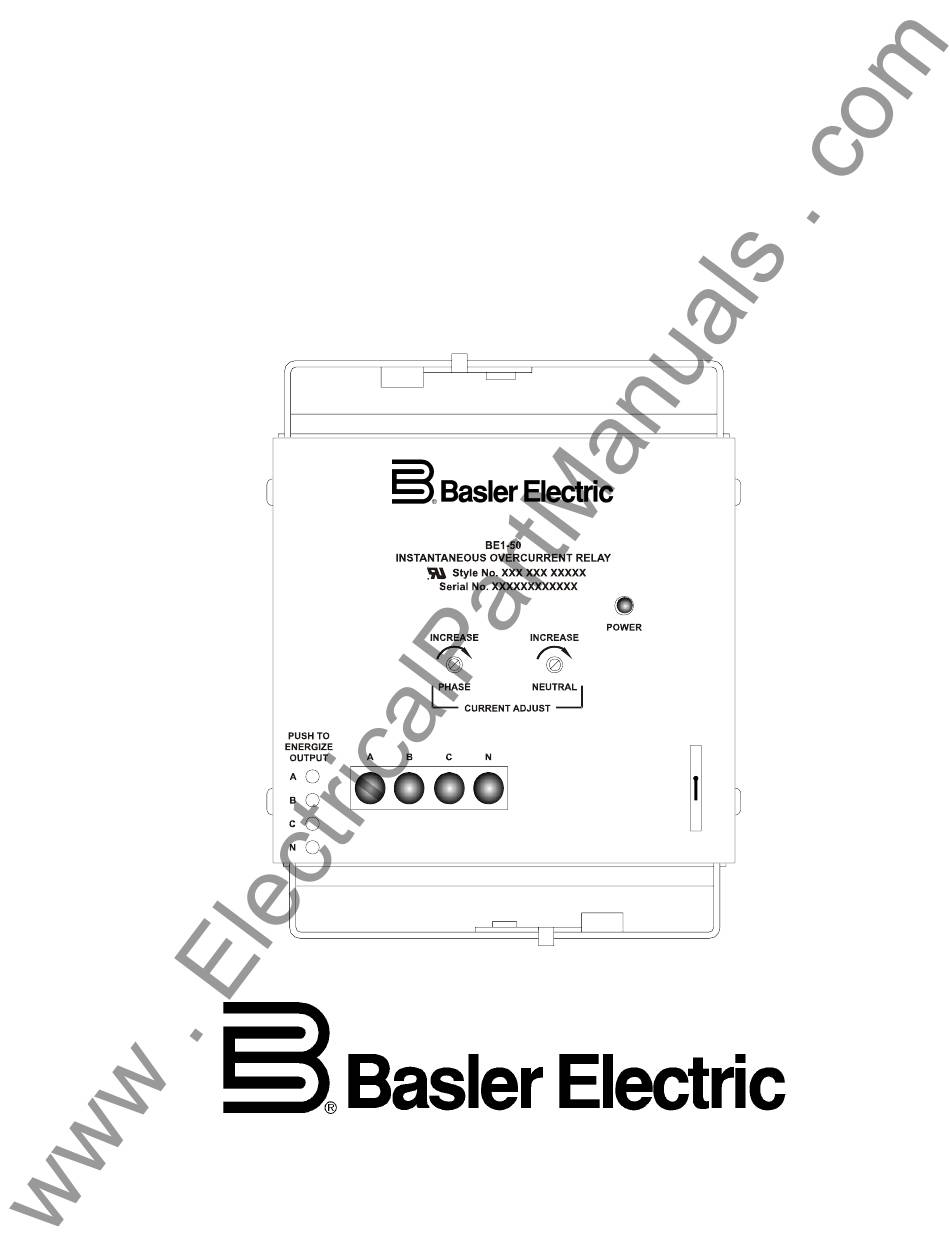

INSTRUCTION MANUAL
FOR
INSTANTANEOUS OVERCURRENT RELAY
BE1-50
P0050-25
Publication: 9171000990
Revision: E
09/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Basler BE1-50

Summary of Contents for Basler BE1-50

  • Page 1 INSTRUCTION MANUAL INSTANTANEOUS OVERCURRENT RELAY BE1-50 P0050-25 Publication: 9171000990 Revision: E 09/07...
  • Page 3 INTRODUCTION This instruction manual provides information about the operation and installation of the BE1-50 Instantaneous Overcurrent Relay. To accomplish this, the following information is provided: • General Information and Specifications • Controls and Indicators • Functional Description • Installation • Testing...
  • Page 4 September 2007 CONFIDENTIAL INFORMATION of Basler Electric, Highland Illinois, USA. It is loaned for confidential use, subject to return on request, and with the mutual understanding that it will not be used in any manner detrimental to the interest of Basler Electric.
  • Page 5 REVISION HISTORY The following information provides a historical summary of the changes made to the BE1-50 instruction manual (9171000990). Revisions are listed in reverse chronological order. Manual Revision and Date Change • E, 09/07 Added manual part number and revision to footers.
  • Page 6 This page intentionally left blank. BE1-50 Introduction 9171000990 Rev E...

  • Page 7: Table Of Contents

    SECTION 4 • INSTALLATION........................4-1 INTRODUCTION..........................4-1 RELAY OPERATING GUIDELINES AND PRECAUTIONS ............... 4-1 MOUNTING............................4-1 CONNECTIONS..........................4-12 MAINTENANCE ..........................4-18 STORAGE............................4-18 SECTION 5 • TESTING ..........................5-1 INTRODUCTION..........................5-1 OPERATIONAL TEST ........................5-1 9171000990 Rev E BE1-50 Introduction...
  • Page 8 This page intentionally left blank. BE1-50 Introduction 9171000990 Rev E...

  • Page 9: Section 1 • General Information

    (Figure 1-1c). Phase Fault Detection BE1-50 relays can be used in two ways to detect phase faults. The first method is to place an instantaneous overcurrent element in each phase with the setting higher than expected load current for any power system element (Figure 1-1a, d, e, f).

  • Page 10: Combination With Other Protective Devices

    BE1-50 electrical characteristics and operational features are defined by a combination of letters and numbers that make up the style number. Model number BE1-50 designates the relay as a Basler Electric Instantaneous Overcurrent Relay. The model number, together with the style number, describes the options included in a specific device and appears on the front panel, draw-out cradle, and inside the case assembly.

  • Page 11: Style Number Example

    Figure 1-3. BE1-50 Style Identification Chart Style Number Example If a BE1-50 relay has a style number of J6J–A1P–J1E1F, the relay has the following features: J -------- Three-phase-and-neutral current sensing 6 -------- 8.0 to 16.0 A phase sensing input range...

  • Page 12: Pickup Range

    0.3 Adc 500 Vdc: Make and carry 15 Adc for 0.2 s, carry 7 Adc continuously, break 0.3 Adc Inductive Ratings 120 Vac, 125 Vdc, 250 Vdc: Break 0.3 A (L/R = 0.04) BE1-50 General Information 9171000990 Rev E...

  • Page 13: Target Indicators

    Capability (SWC) Tests for Protective Relays and Relay Systems. Physical Temperature Operating Range: –40 to 70°C (–40 to 158°F) Storage Range: –65 to 100°C (–85 to 212°F) Weight: 17.5 lb (7.76 kg) Case Size: S1 (Refer to Section 4 for case dimensions.) 9171000990 Rev E BE1-50 General Information...

  • Page 14: Agency Recognition/Certification

    NOTE: Output contacts are not UL recognized for voltages greater than 250 volts. Gost-R Certification: Gost-R certified, No. POCC US.ME05.B03391; complies with the relevant standards of Gosstandart of Russia. Issued by accredited certification body POCC RU.0001.11ME05. BE1-50 General Information 9171000990 Rev E...

  • Page 15: Section 2 • Controls And Indicators

    SECTION 2 • CONTROLS AND INDICATORS INTRODUCTION All BE1-50 controls and indicators are located on the front panel. The controls and indicators are shown in Figure 2-1 and described in Table 2-1. Figure 2-1 illustrates a relay with the maximum number of controls and indicators.
  • Page 16 (locator D). Output Test Pushbuttons. These pushbuttons allow manual actuation of the output relays. Output relay actuation is achieved by inserting a nonconductive rod through the front panel access hole. BE1-50 Controls and Indicators 9171000990 Rev E...

  • Page 17: Section 3 • Functional Description

    SECTION 3 • FUNCTIONAL DESCRIPTION INTRODUCTION BE1-50 Instantaneous Overcurrent relays are static devices that respond to the current magnitude of the monitored circuit. BE1-50 relay functions are illustrated in Figure 3-1 and described in the following paragraphs. Figure 3-1. Function Block Diagram...

  • Page 18: Pickup Settings

    The optional power supply status relay has a set of normally closed contacts and energizes when operating power is applied to the BE1-50. If relay operating power is lost or one side of the power supply output (+12 Vdc or –12 Vdc) fails, the power supply status relay de-energizes and opens the power supply status output contacts.

  • Page 19: Current Operated Targets

    Current operated targets are triggered by closure of the output contacts and the presence of at least 200 milliamperes of current flowing in the trip circuit. NOTE Prior to September 2007, BE1-50 target indicators consisted of magnetically latched, disc indicators. These mechanically latched target indicators have been replaced by the electronically latched LED targets in use today.
  • Page 20 This page intentionally left blank. BE1-50 Functional Description 9171000990 Rev E...

  • Page 21: Section 4 • Installation

    SECTION 4 • INSTALLATION INTRODUCTION BE1-50 relays are shipped in sturdy cartons to prevent damage during transit. Upon receipt of a relay, check the model and style number against the requisition and packing list to see that they agree. Inspect the relay for shipping damage.
  • Page 22 Figure 4-1. Panel Cutting/Drilling, Semi-Flush Case BE1-50 Installation 9171000990 Rev E...
  • Page 23 Figure 4-2. Panel Cutting/Drilling, Double-Ended Projection-Mount Case 9171000990 Rev E BE1-50 Installation...
  • Page 24 Figure 4-3. Panel Cutting/Drilling, Single-Ended Projection-Mount Case BE1-50 Installation 9171000990 Rev E...
  • Page 25 D1427-27 12-04-01 Figure 4-4. Case Dimensions, Side View, Double-Ended Semi-Flush Case 9171000990 Rev E BE1-50 Installation...
  • Page 26 Figure 4-5. Case Dimensions, Side View, Double-Ended Projection-Mount Case BE1-50 Installation 9171000990 Rev E...
  • Page 27 D1427-29 02/2001 Figure 4-6. Case Dimensions, Side View, Single-Ended Semi-Flush Case 9171000990 Rev E BE1-50 Installation...
  • Page 28 DETAIL A-A OVER THE BOSS TO TIGHTEN THE D1427-03 02/2001 Figure 4-7. Case Dimensions, Side View, Single-Ended Projection-Mount Case BE1-50 Installation 9171000990 Rev E...
  • Page 29 Figure 4-8. Case Dimensions, Rear View, Semi-Flush Case 9171000990 Rev E BE1-50 Installation...
  • Page 30 Figure 4-9. Case Dimensions, Rear View, Projection-Mount Case 4-10 BE1-50 Installation 9171000990 Rev E...
  • Page 31 P0002-12 01-31-01 Figure 4-10. Case Cover Dimensions, Front View 9171000990 Rev E BE1-50 Installation 4-11...

  • Page 32: Connections

    Typical sensing input connections are shown in Figures 4-11 through 4-14. Typical output connections are shown in Figures 4-15 and 4-16. Internal wiring diagrams are shown in Figures 4-17 through 4-19. Figure 4-11. Single-Phase Sensing Input Connections 4-12 BE1-50 Installation 9171000990 Rev E...
  • Page 33 Figure 4-12. Three-Phase-and-Neutral Sensing Input Connections Figure 4-13. Two-Phase-and-Neutral Sensing Input Connections 9171000990 Rev E BE1-50 Installation 4-13...
  • Page 34 Figure 4-14. Three-Phase Sensing Input Connections Figure 4-15. Typical Output Connections (Sensing Input Type E or G and Output F or H) or (Sensing Input Type J and Output J or K) 4-14 BE1-50 Installation 9171000990 Rev E...
  • Page 35 Figure 4-16. Typical Output Connections (Sensing Input Type F and Output E or G) 9171000990 Rev E BE1-50 Installation 4-15...
  • Page 36 Figure 4-17. Typical Internal Connections, Three-Phase-and-Neutral Sensing, Output Type E 4-16 BE1-50 Installation 9171000990 Rev E...
  • Page 37 Figure 4-18. Typical Internal Connections, Three-Phase-and-Neutral Sensing, Multiple Output Relays 9171000990 Rev E BE1-50 Installation 4-17...

  • Page 38: Maintenance

    Figure 4-19. Typical Internal Connections, Single-Phase, Output E MAINTENANCE BE1-50 relays require no preventative maintenance other than a periodic operational check. If the relay fails to function properly, contact Technical Sales Support at Basler Electric to coordinate repairs. STORAGE This protective relay contains aluminum electrolytic capacitors which generally have a life expectancy in excess of 10 years at storage temperatures less than 40°C (104°F).

  • Page 39: Section 5 • Testing

    (option 3-6), verify that these contacts when external power is applied. Remove input power and verify that the status contacts close. (For relay styles with power supply types F, G, and H, the relay is powered from the current sensing inputs.) Figure 5-1. Test Circuit Connection 9171000990 Rev E BE1-50 Testing...
  • Page 40 If present, the target indicator for the tested phase (or neutral) should be actuated. Step 6. Repeat Steps 2 through 5 for each phase and neutral as necessary for your style relay. (Neutral sensing ranges may be different from the phase sensing range.) BE1-50 Testing 9171000990 Rev E...
  • Page 41 ROUTE 143, BOX 269 HIGHLAND, IL 62249 USA http://www.basler.com, info@basler.com PHONE +1 618-654-2341 FAX +1 618-654-2351...
