NOTE: Do not connect BOTH the high level and low level inputs from your
receiver to your amplifier at the same time.

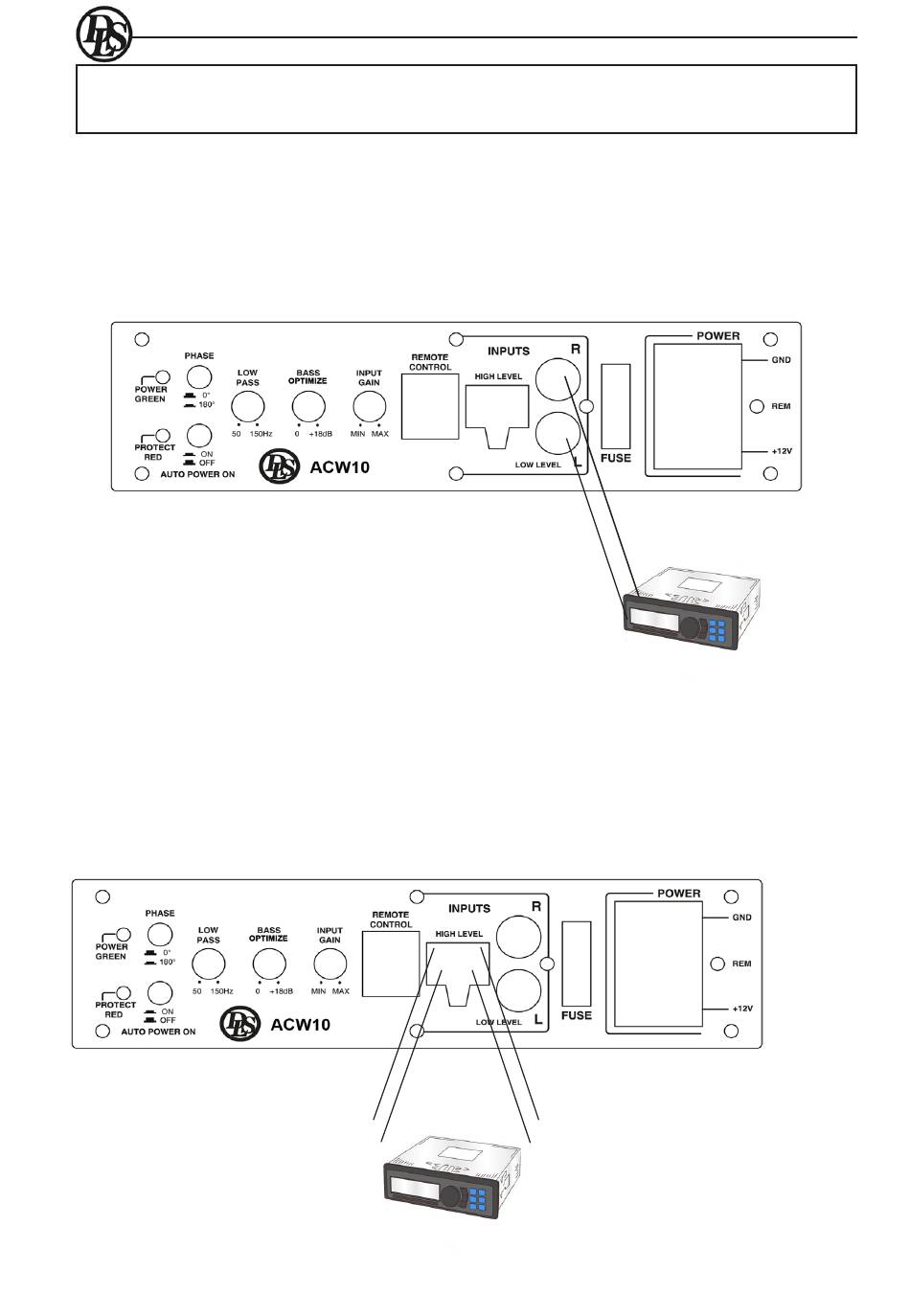

Low Level lnput Wiring
Low-level (RCA) input wiring is prefered for best audio performance. Most trunk or
hatchback installations will require a 15-20 feet RCA cable, while pickup trucks and
under-seat installations will require a 6-12 feet RCA cable. Always use a high quality
cable.
High Level lnput Wiring
Most headunits are pre-installed from the car factory and have no RCA out-put, in
this case you can use the signal from the speaker output. Connect left and right
speaker wires coming from the car stereo to the high level input as shown. Be sure
to observe polarity to avoid audio phase pro-blems.
WHITE L+
GREY R+
To Speaker Terminals
of head unit
WHITE/BLACK L-
GREY/BLACK R-
5
- Quick Links:
- Installation
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the ACW10 and is the answer not in the manual?
Questions and answers
hi i have two dls acw10 installed in my car, i have noticed one of the amps had blown the fuse, i have tried replacing the fuse however it does not switch on, it indicated protect mode and then both leds are off. what could the cause be ?
The DLS ACW10 amplifier could go into protect mode and not turn on after replacing the blown fuse due to the following reasons:
1. Short circuits on the speaker leads.
2. Overdriving from the head unit (volume set too high).
3. Faulty amplifier requiring servicing.
4. Improper grounding.
5. Remote input (Turn-On) voltage less than 5VDC.
These issues should be checked and corrected before repowering the amplifier.
