Installation
In the trunk
1 - Rear seats must be positioned in their normal fixed position.

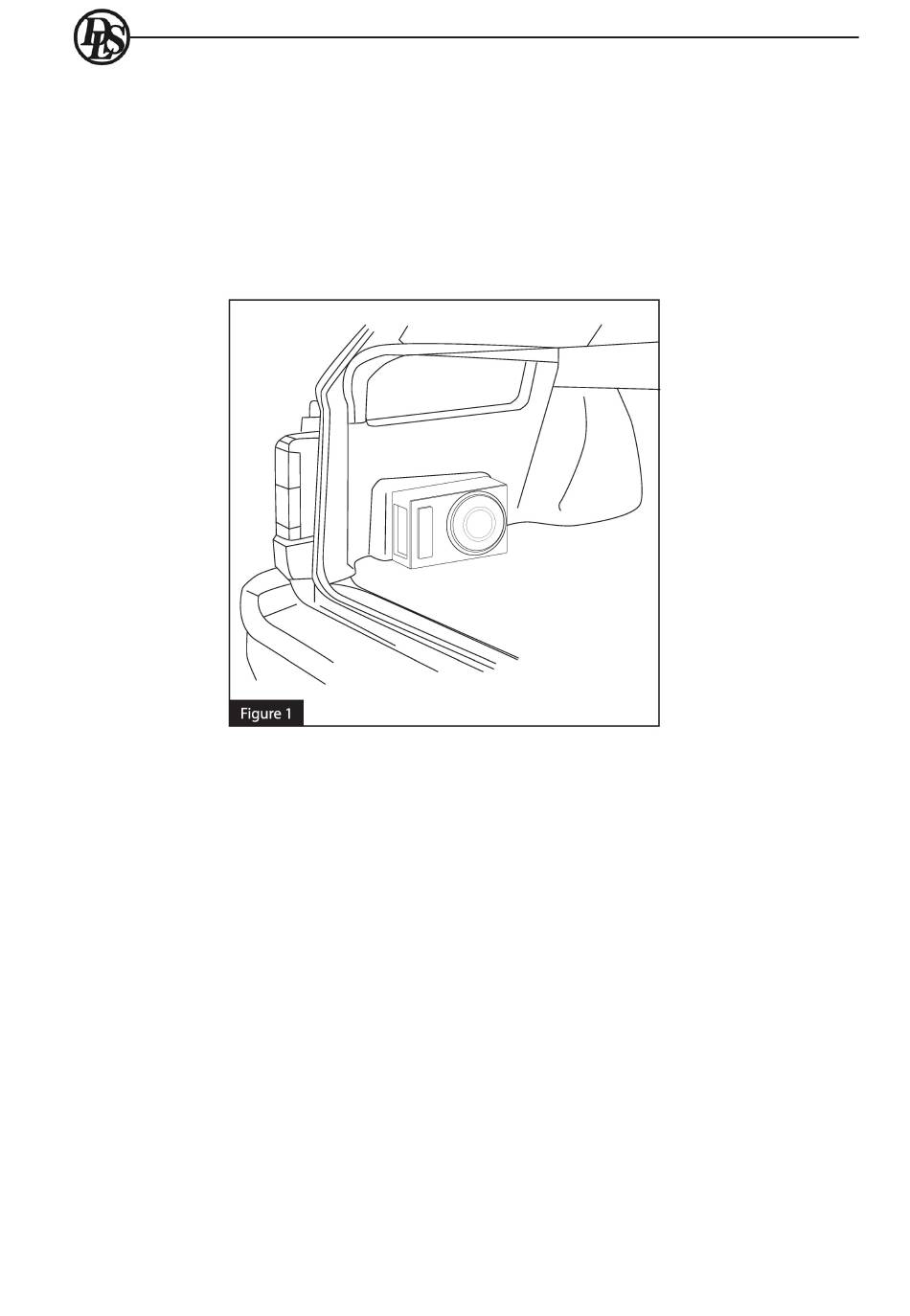

2 - Decide the best location possible that suits your automobile and space
available. The best and most secure location for optimum sound quality is
behind the rear seats,in the trunk floor (see Figure 1 ).
3 - Ensure the area for subwoofer location is clean and tidy. Any loose
objects must be removed, as they could knock and damage the subwoofer.
4 - Once the location has been decided, mark the screw hole positions for
the fixing brackets.
5 - Drill holes of 2 mm for the 4 fixing brackets, at your defined locations.
6 - Fix the clamps to the subwoofer basket with the four screws M6*8 (the
fixing clamps have a mounting direction system) see (Figure 2 & 3)
9
