INSTALLATION, OPERATION, AND MAINTENANCE MANUAL

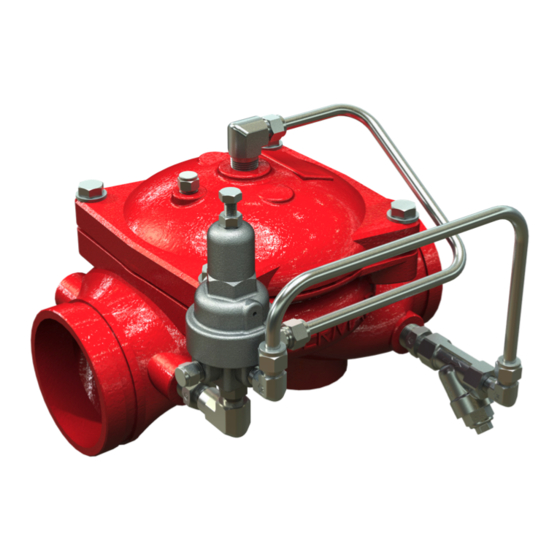

867-4UF Pressure Relief Valve
• Read and understand all instructions before attempting to install, remove, adjust, or perform maintenance on any Victaulic piping products.
• Depressurize and drain piping systems before attempting to install, remove, adjust, or perform maintenance on any Victaulic piping
products.
• Wear safety glasses, hardhat, and foot protection.
• Save this installation, operation, and maintenance manual for future reference.
Failure to follow instructions and warnings could cause system failure, resulting in death or serious personal injury and property damage.
REV_A
WARNING
I-867-4UF
HANG THESE INSTRUCTIONS ON THE
INSTALLED VALVE FOR FUTURE REFERENCE
I-867-4UF
