Toa SR-F08 Service Manual

SPEAKER SYSTEM
SR-F08
INSTRUCTION MANUAL
INSTRUCTION MANUAL
Update history
TOA1912
No.833-72-520-00
TABLE OF CONTENTS
TABLE OF CONTENTS ................................................................................................................................. 1
GENERAL DESCRIPTION ............................................................................................................................ 1
SPECIFICATIONS ......................................................................................................................................... 1
SCHEMATIC DIAGRAM ................................................................................................................................ 2
WIRING DIAGRAM ........................................................................................................................................ 3
MOUNTING DIAGRAM AND PARTS LIST .................................................................................................... 4
•NETWORK PCB ASSY. ............................................................................................................................ 4
EXPLODED VIEW AND PARTS LISTS ......................................................................................................... 5
GENERAL DESCRIPTION

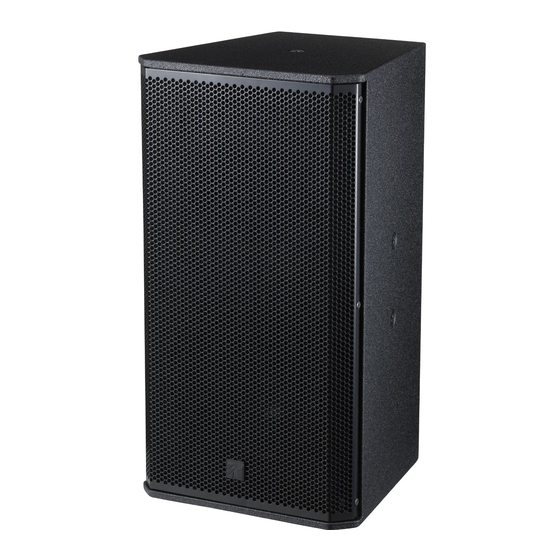

The SR-F08 is a speaker system designed for permanent and temporary indoor installations, featuring
high power handling capacity and high quality sound.
SPECIFICATIONS
System Type 2-way, Passive type, Bass-re ex type
Power Handling Capacity Continuous pink noise: 120 W, Continuous program: 360 W
Rated Impedance 8Ω
Sensitivity 91 dB (1 W, 1 m)
Frequency Response 65 Hz to 20 kHz
Crossover Frequency 1.5 kHz
Directivity Angle Horizontal: 90°, Vertical: 60° (Horn at 90° Rotation, Horizontal: 60°, Vertical: 90°)
Speaker Component Low frequency: 20 cm (8") cone-type
High frequency: Compression driver tted with CD horn
Input Connector Neutrik NL4MP x 2, M4 screw terminal, distance between barriers: 11 mm (0.43")
Finish Enclosure: Birch plywood, black, polyurea coating
Grille: Steel plate, black, 40% glossy, paint
Dimensions 249 (w) x 450 (h) x 243 (d) mm (9.8" x 17.72" x 9.57")
Weight
11 kg (24.25 lb)
Option Speaker mounting bracket:
Ceiling mount bracket:
Speaker wall mount bracket: HY-WM04, HY-W0801
Speaker stand:
MODEL SR-F08
HY-B0801, HY-UH04, HY-UV04
HY-C0801
ST-34B
1
