Installation and Maintenance Instructions
Thoroughly inspect the equipment for any shipping and handling damage before accepting shipment from the freight company. If any of the
goods called for in the bill of lading or express receipt are damaged or the quantity is short, do not accept until the freight or express agent
makes an appropriate notation on your freight bill or express receipt. If any concealed loss or damage is discovered later, notify your freight
carrier or express agent at once and request him to make an inspection. We will be very happy to assist you in collecting claims for loss or
damage during shipment; however, this willingness on our part does not remove the transportation company's responsibility in reimbursing
you for collection of claims or replacement of material. Claims for loss or damage in shipment must not be deducted from the NORD Gear
invoice, nor should payment of the NORD Gear invoice be withheld awaiting adjustment of such claims, as the carrier guarantees safe
delivery.
If considerable damage has been incurred and the situation is urgent, contact the nearest NORD Gear Sales Office for assistance. Please
keep a written record of all communications.
Locate the gear reducer nameplate and record all nameplate data for future reference.
SK ________________________________________________________ S/N _________________________________
RATIO ______________ MAX TORQUE ____________________ RPM ______________ MTG. POS ______________
PROPER STORAGE UNTIL INSTALLED
Keep unit in a dry, temperature controlled area. If stored other
than said, long term storage methods must be applied to the unit
including complete fill with lubricant. Protect machined surfaces
and rotate shafts periodically. Prior to putting unit into service,
drain lubricant and refill to proper level as determined by the
mounting position.
BIM 1011/2005/03
NORDBLOC
Retain These Safety Instructions For Future Use
INSPECTION OF UNIT
RECORD NAMEPLATE DATA
®

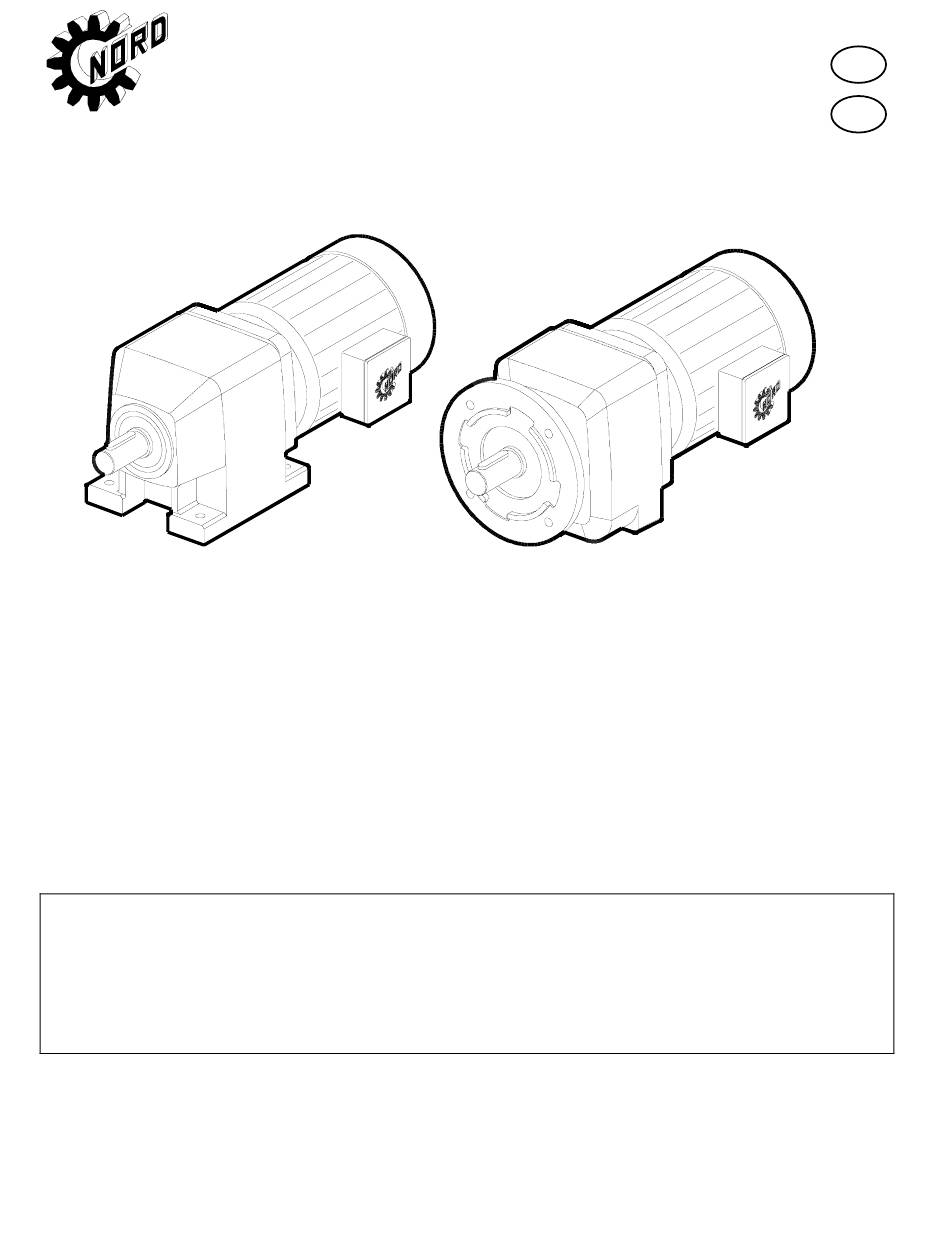

Helical Gearboxes
STORAGE
PROPER HANDLING OF THE UNIT
Exercise care to prevent damage to the unit when moving. Lift
onIy at designed Iifting points. Do not attach other machinery and
lift by the unit lifting points. The lifting points are to be used to lift
the unit only. Insure that adequate safety measures are taken to
protect personneI during transportation. Protect the mounting
surface from damage.
1
BIM 1011
USA
CDN
www.nord.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for nord NORDBLOC SK 172
Summary of Contents for nord NORDBLOC SK 172
- Page 1 Claims for loss or damage in shipment must not be deducted from the NORD Gear invoice, nor should payment of the NORD Gear invoice be withheld awaiting adjustment of such claims, as the carrier guarantees safe delivery.
-
Page 2: Installation Of Unit
> ∅ 9.055 ≤ ∅ 12.402 = +0.000/-0.0013 according to the manufacturer’s recommendations, generaIIy > ∅ 12.402 ≤ ∅ 15.748 = +0.000/-0.0014 250°F to 300°F, (120°C to 150° C) before assembIing to the shaft. > ∅ 15.748 ≤ ∅ 19.685 = +0.000/-0.0016 BIM 1011/2005/03 www.nord.com... - Page 3 Ioads and shaft defIections. CHANGES IN PERFORMANCE SPECIFICATIONS Owner has the responsibiIity to consult with NORD GEAR if such COUPLING ALIGNMENT items such as applied Ioads, operating speeds or other operating Shaft coupIings shouId be instaIIed according to the coupIing conditions have changed.
- Page 4 LUBRICANT The drain plugs are metric socket head cap screws. They will be AII NORD reducers are shipped from the factory properIy fiIIed located at the lowest part of the gearbox for ease of draining. The with Iubricant and all plugs are installed according to the mounting fill level plug is a hex head cap screw.
-
Page 5: Mounting Positions
The factory set mounting position and plug locations match that shown on the gearbox nametag. For mounting orientations other than shown consult NORD Gear. NORDBLOC sizes SK172-SK373 & SK320 have no vent or drain plugs. They are filled with synthetic oil so the units are “Lubed for Life”. -
Page 6: Maintenance
OIL SPECIFICATIONS NORD supplies aII reducers fiIIed with oiI from the factory. Consult the sticker adjacent to the fill plug to determine the type of lubricant installed at the factory. Standard lubricant is ISO VG220 mineral-based oil. However, some units have special lubricants designed to operate in certain environments or to extend the service life of the lubricant. - Page 7 Note: Filling quantities are approximate figures. Oil level must be checked according to oil level plug after final installation. Acceptable oil fill level is within ½ inch of the bottom of the fill plug threads For mounting angles not shown, consult factory. BIM 1011/2005/03 www.nord.com...
-
Page 8: Parts List
IMPORTANT! When ordering parts, it is necessary to have the NORD SERIAL NUMBER from the unit the parts are for. The serial number will dictate the correct parts for that particular unit. The gearbox nameplate will have the serial number on it. - Page 9 Snap ring Supporting disc Pinion shaft bearing Shim Pinion shaft bearing Drain plug Shim Pinion shaft bearing Seal Snap ring Pinion shaft bearing Bolt Bolt Grooved dowel pin SK 273 F … – SK 973 F ... BIM 1011/2005/03 www.nord.com...
-
Page 10: Troubleshooting
Clean or replace, being sure to prevent any Autovent clogged. dirt from falling into the reducer. Improper mounting position, such as Check mounting position. Name tag & verify wall or ceiling mount of horizontal with mounting chart in manual. reducer. BIM 1011/2005/03 www.nord.com...
