Mocka Hugo Bedside Table Assembly Instructions Manual

Hugo Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C D
dowel screw bolt locking
x4 x4 nut x4
x8
L
J K M
Allen
wedge screw bracket
x1
x4
x4 key x1
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E F G
screw slide slide
x13 rail x1 rail x1
N O P
cover
small small
bolt locking
x1
x4 nut x4

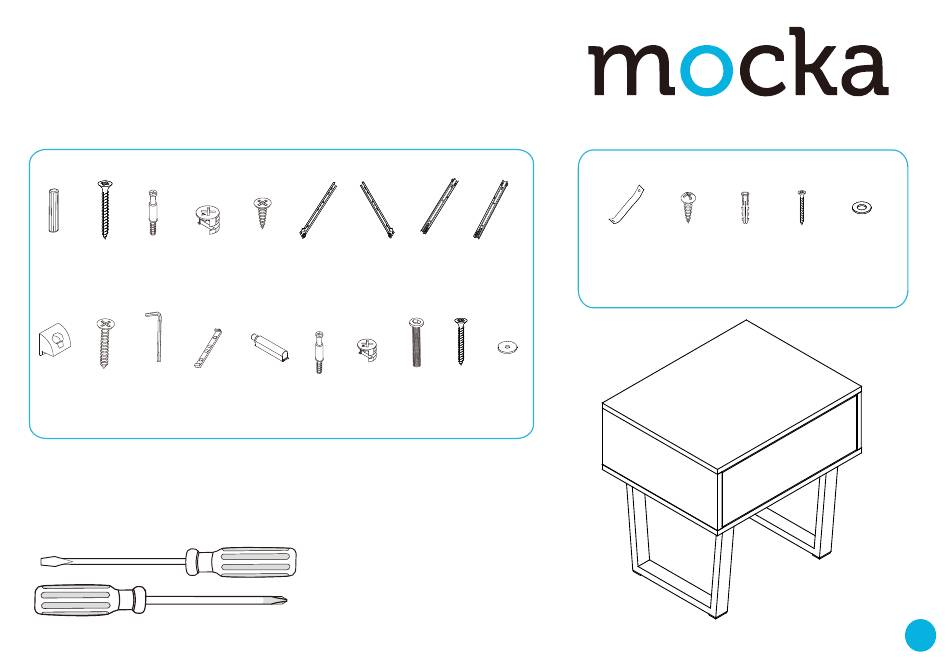

Hardware Supplied

Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H I
slide slide
rail x1 rail x1
Q
R S
screw seal
bolt
x4
x4 x1
V W X
safety screw wall
x1
strap x1 anchor
x1
Wall Strap
Y Z
wall washer
screw x2
x1
1
