Yakima 60 Assembly Instructions

Due to manufacturing variances, shell thickness can differ considerably.
You may need to obtain longer bolts from your local hardware store.

TOOLS REQUIRED:

IMPORTANT WARNING!
IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE.
IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY
OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR,
CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR,
AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED
WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS
AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE
INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER SUCH AS A
QUALIFIED GARAGE OR AUTO BODY SHOP.

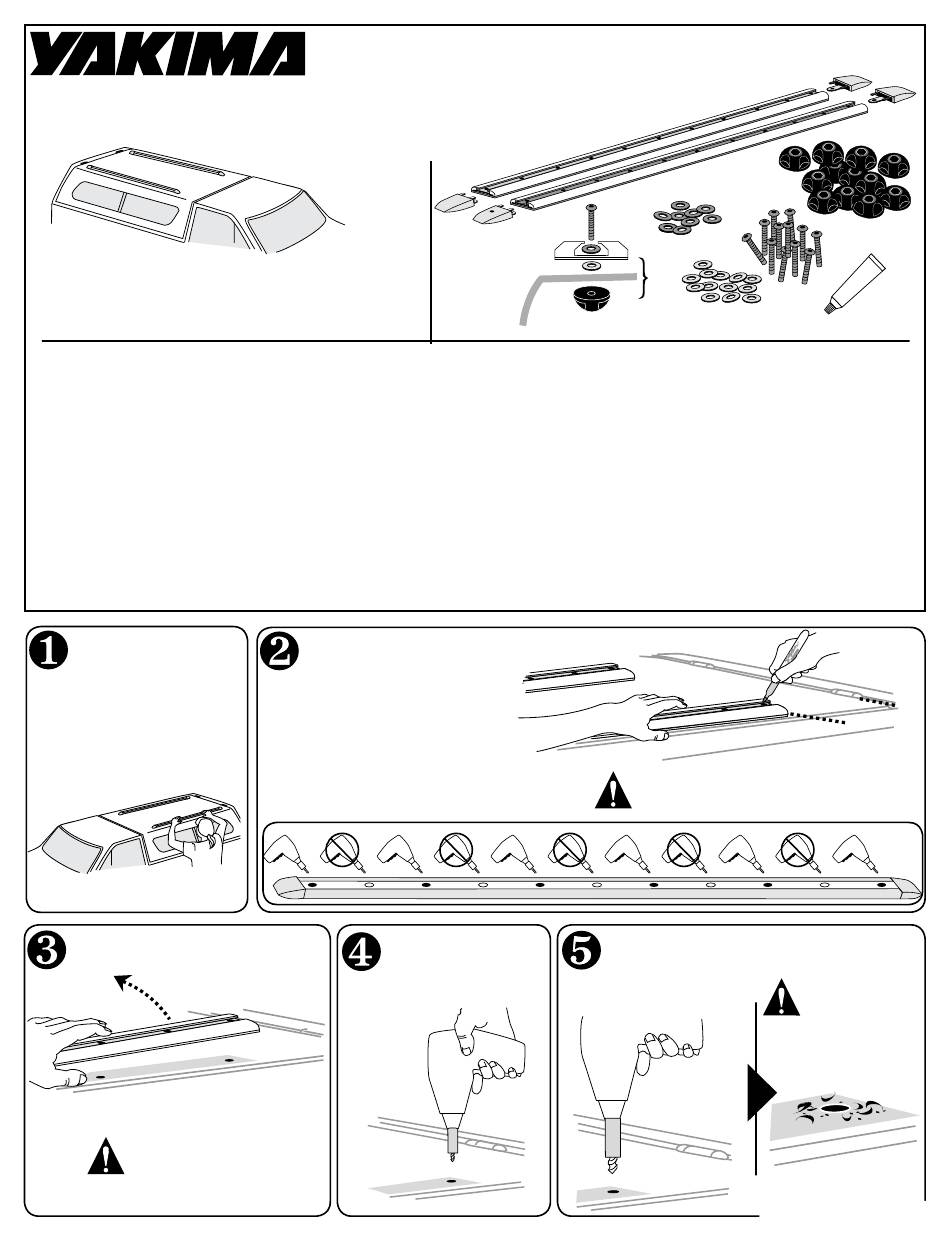

Align tracks to
each other and
position track ends
equal distance
from rear of shell.
Remove track from shell.
NEVER DRILL
THROUGH TRACK!
1032606B - 1/4
60" Tracks with Bolts
power drill
1/8" drill bit
1/4" drill bit
1/8" Allen wrench
Using a marker pen,
outline alternate holes
through the track.
Begin with first or last
hole, and skip every
other hole.
FOLLOW THE DRILLING DIAGRAM:
Drill 1/8" pilot holes
in center of marks.
CAUTION: Track base can slide.
Be sure it is aligned to the track!
Drill 1/4" into
pilot holes.
Carefully blow
away debris.
Part #1032606 Rev.B
