Ropox Support Washbasin Electric
USER MANUAL
MOUNTING INSTRUCTION
Keep this manual with the product at all times
TF 200.01.0048_eng / Dato 31-08-2022
PA 2004 00634

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Support 40-44016 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ropox Support 40-44016

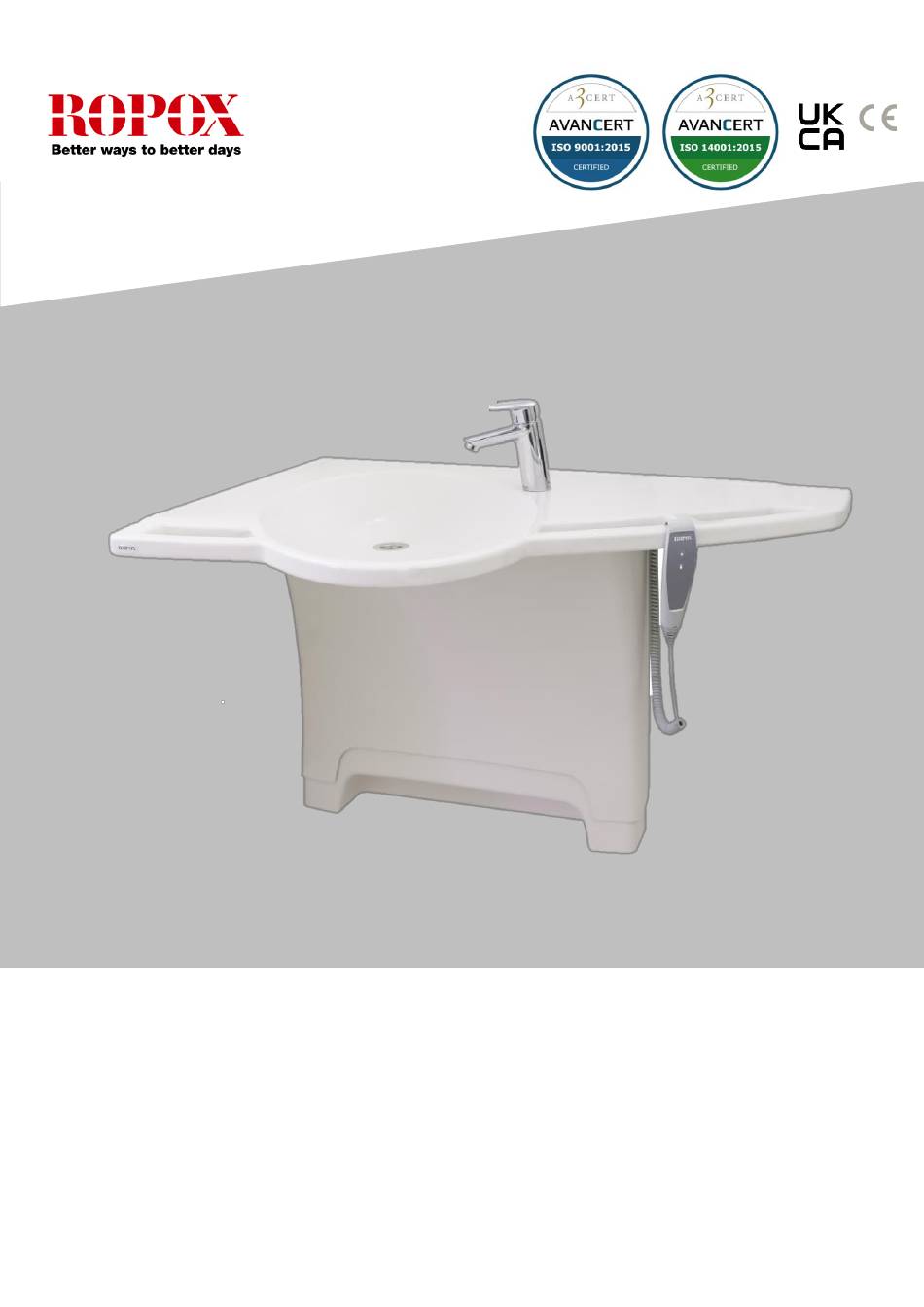

  • Page 1 Ropox Support Washbasin Electric USER MANUAL MOUNTING INSTRUCTION Keep this manual with the product at all times TF 200.01.0048_eng / Dato 31-08-2022 PA 2004 00634...
  • Page 2: Table Of Contents

    Table of Contents SYMBOLS USED IN THIS MANUAL ....................3 GENERAL SAFETY .......................... 3 2.1 P ........................... 5 RODUCT NIT LABEL GENERAL REQUIREMENTS ......................6 3.1 P ........................6 RODUCT INFORMATION 3.2 P ......................... 6 RODUCT DESCRIPTION 3.3 I ............................6 NTENDED USE 3.4 I ..........................
  • Page 3: Symbols Used In This Manual

    Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification Symbol This symbol is used to notify correct use and handling of the product.
  • Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
  • Page 5: Product Unit Label

    2.1 Product Unit label Ropox Support Washbasin, Electric, L Mixer tap left side. Integrated handles This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments UK SI 2008 No. 1597 - The Supply of Machinery (Safety) Regulations 2008, and its...
  • Page 6: General Requirements

    Cover, right 3.2 Product description The Ropox Support Washbasin is a disability-friendly and stable washbasin, which is adjustable in height, based on the needs of the individual. The washbasin is specifically designed for use by people with difficulty walking. It has integrated grab rails, to prevent fall injury.
  • Page 7: Intended Operator

    3.4 Intended operator Reading and understanding this manual will be sufficient training for an intended operator. Children under the age of 16 or patient are not considered intended operator. 3.5 Essential performance The product does not have essential performance, as the patient and user do not experience any risk in case of loss of product function/performance.
  • Page 8: Operation

    3.9 Operation Press the up symbol to raise/lift washbasin and to lower, press the downwards symbol. The washbasins stops as soon as the control button is released. Height adjustment using handheld control switch with spiral cable (standard) Fixed control switch (option) Warning! The product should always be able to travel the full range of actuation without colliding with objects.
  • Page 9: Mounting Instruction

    Mounting instruction 4.1 Installation interfaces Construction The wall must be made of material suitable for screwing and approved for damp rooms. Tested in accordance with DS/ISO 17966:2016, max user weight is 520kg/1145lb Max. load of upper screws: 71kg/156lb / screw. Minimum areas for reinforcement of wall are the hatched areas.
  • Page 10: Positioning Of Water Supply, Drain And Power

    4.1.1 Positioning of water supply, drain and power = Power = Water supply = Drain 40-44016 Note: Stop valves pointing downward. 66mm/2,6in 50mm/1,9in 50mm/1,9in 130mm/5,1in 145mm/5,7in 60mm/2,3in 60mm/2,3in 133mm/5,2in 40-44017 Note: Stop valves pointing upward. 145mm/5,7in 110mm/4,3in 60mm/2,3in 50mm/ 1,9in 196mm/7,7in TF 200.01.0048_eng...
  • Page 11: Connection Adapters

    4.2 Connection adapters If the recommendations cannot be met, the components shown below are available depending on the type of installation in the building. Water connection adapters Installation in Hoses from washbasin Adapter room (not provided) No adapter required 1/2" Thread 1/2”...
  • Page 12: List Of Components

    4.3 List of components Ropox Support Washbasin Electric, left, 40-44016 40*44010-064: Top plate with washbasin, left-oriented 1 (one) Incl. Top frame, left oriented 1 (one) Ropox Support Washbasin Electric, right, 40-44017 40*44010-070: Top plate with washbasin, right-oriented 1 (one) Incl.
  • Page 13 40*44016-024: Siphon hanger 1 (one) 40*44010-094: Adjustment foot M10 2 (two) 97001655: Hand control 1 (one) 97001738: Motor cable L=1000mm 1 (one) 97000429: Blind plugs 3 (three) 97000427: Control box cable 1 (one) 97001601: Siphon 1 (one) Connecting hose, ½” x ½”, 50cm / 19,7in 97001125: 2 (two) 97001012:...
  • Page 14: Installation Of Product

    4.4 Installation of product Warning! Before use always make sure that mains cable and hand control cable will be able to travel freely without the risk of squeezing or disconnecting the product as result of the movement. Caution! When connected to the mains the product must be placed in a manner according to power outlets so that the operator will be able to disconnect the product during use in case of an emergency.
  • Page 15 4 x M8x20 2 x M8x20 2 x M5x10 TF 200.01.0048_eng...
  • Page 16 1 x M10x35 1 x M10 2 x M10x20 TF 200.01.0048_eng...
  • Page 17 1 x M10x35 1 x M10 TF 200.01.0048_eng...
  • Page 18 2 x M5x20 TF 200.01.0048_eng...
  • Page 19 TF 200.01.0048_eng...
  • Page 20 Mark up for 8x rawlplugs TF 200.01.0048_eng...
  • Page 21 5mm/0,2in 469mm/18,4in 27mm/1,1in 70mm/2,7in 70mm/2,7in 6 x M8x72 NOTE: Depending wall type, choose other suitable screws, as required. Max. load on upper screws: 71 kg / 156 lb /screw TF 200.01.0048_eng...
  • Page 22 NOTE: Mixer tap is accessories TF 200.01.0048_eng...
  • Page 23 66mm/2,6in 50mm/1,9in 50mm/1,9in 130mm/5,1in 145mm/5,7in 60mm/2,3in 60mm/2,3in 133mm/5,2in Fixate excess cables Recommended placement of electrical installation TF 200.01.0048_eng...
  • Page 24 Wiring diagram Adjust the washbasin to its highest and lowest position to make sure the wires and hoses are mounted correctly and do not conflict during the adjustment Mounting of covers (accessories) 2 x M8x72 TF 200.01.0048_eng...
  • Page 25 2 x M4x16 TF 200.01.0048_eng...
  • Page 26 TF 200.01.0048_eng...
  • Page 27 3 x M4x16 TF 200.01.0048_eng...
  • Page 28: Support Washbasin Electric, Right

    4.4.2 Support Washbasin Electric, right 40-44017 Note Make sure the washbasin does not get scratched while upside down TF 200.01.0048_eng...
  • Page 29 2 x M8x20 2 x M5x10 1 x M10x35 1 x M10 TF 200.01.0048_eng...
  • Page 30 2 x M10x20 TF 200.01.0048_eng...
  • Page 31 1 x M10 1 x M10x35 3x M5x10 TF 200.01.0048_eng...
  • Page 32 TF 200.01.0048_eng...
  • Page 33 TF 200.01.0048_eng...
  • Page 34 Mark for 8x anchors TF 200.01.0048_eng...
  • Page 35 5mm/0,2in 27mm/1,1in 469mm/18,4in 70mm/2,7in 6 x M8x72 NOTE: Depending wall type, choose other suitable screws, as required. Max. load on upper screws: 71 kg / 156 lb /screw TF 200.01.0048_eng...
  • Page 36 NOTE: Mixer tap accessories TF 200.01.0048_eng...
  • Page 37 145mm/5,7in 110mm/ 4,3in 50mm/ 60mm/2,3in 1,9in 196mm/7,7in Recommended fixation of the hoses and wires TF 200.01.0048_eng...
  • Page 38 Mounting of covers (accessories) 2 x M8x72 2 x M4x16 TF 200.01.0048_eng...
  • Page 39 TF 200.01.0048_eng...
  • Page 40 3 x M4x16 TF 200.01.0048_eng...
  • Page 41: Performance Test

    If all these tests are ok, the washbasin is ready for use. See section “Safety instructions”. Safety instructions ➢ The height adjustment of Ropox Support Washbasin Electric should only be operated by persons who have read and understood these instructions.
  • Page 42: Positioning Of Control Switch

    Positioning of control switch Recommended positioning of fixed control switch The handheld control switch may be placed in one of (option) as illustrated. If another location is required, the three grab handles or on the wall on the bracket please state when ordering. provided.
  • Page 43: Maintenance

    Ropox will make parts list and circuit diagrams available for maintenance and repair beyond what is described in this manual. Only use Ropox original spare parts as replacement parts. If other parts are used, the guarantee may become void. Repair beyond what is described in this manual may only be done by Ropox designated service personnel.
  • Page 44: Service Schedule, Operation And Maintenance

    8.4 Service schedule, operation and maintenance Service and maintenance Serial No. Service and maintenance Serial No. Date: Date: Signature: Signature: Remarks: Remarks: Service and maintenance Serial No. Service and maintenance Serial No. Date: Date: Signature: Signature: Remarks: Remarks: Service and maintenance Serial No. Service and maintenance Serial No.
  • Page 45: Fault Finding

    10. Spare parts Handheld control switch Item No. 97001655 Motor Item No. 97000483 Control unit Item No. 97001691 Caution! Only use original Ropox spare parts as replacement parts. If other parts are used, the warranty may be void. TF 200.01.0048_eng...
  • Page 46: Environmental Protection

    11. Environmental protection The product is not intended to be disposed as municipal waste. Proper disassembly, sorting and disposal of components must be done by waste disposal professionals. Part Disposal recommendation Wash basin Ceramic Main unit Steel Mixer tap Steel Cover Plastic Actuator...
  • Page 47: Complaints

    13. Complaints See General Terms of Sale and Delivery on www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.dk TF 200.01.0048_eng...
