HIKVISION DS-K5604A-3XFV Quick Start Manual

Face Recognition Terminal
Quick Start Guide
UD19290B-A
© 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter
referred to as "Hikvision"), and it cannot be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of Hikvision. Unless otherwise expressly stated
herein, Hikvision does not make any warranties, guarantees or representations, express or implied,
regarding to the Manual, any information contained herein.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other
information hereinafter are for description and explanation only. The information contained in the Manual is
subject to change, without notice, due to firmware updates or other reasons. Please find the latest version
of this Manual at the Hikvision website (https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
Trademarks Acknowledgement
and other Hikvision's trademarks and logos are the properties of Hikvision in various
jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND
ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE
PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS
OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF
DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND
HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR
OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER
INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY
RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE
RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF
THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS,
OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY
PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS
DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY
ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN
SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
Data Protection
During the use of device, personal data will be collected, stored and processed. To protect data, the
development of Hikvision devices incorporates privacy by design principles. For example, for device with
facial recognition features, biometrics data is stored in your device with encryption method; for fingerprint
device, only fingerprint template will be saved, which is impossible to reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in accordance with the
applicable data protection laws and regulations, including without limitation, conducting security controls to
safeguard personal data, such as, implementing reasonable administrative and physical security controls,
conduct periodic reviews and assessments of the effectiveness of your security controls.
Scan the QR code to get the user manual for detailed information.
Note that mobile data charges may apply if Wi-Fi is unavailable.
Use only power supplies listed in the user instructions:
Model Manufacturer Standard
C2000IC12.0-24P-DE MOSO Power Supply Technology Co., Ltd. CEE
C2000IC12.0-24P-GB MOSO Power Supply Technology Co., Ltd. BS
ADS-24S-12 1224GPG Shenzhen Honor Electronic Co., Ltd. CEE
1

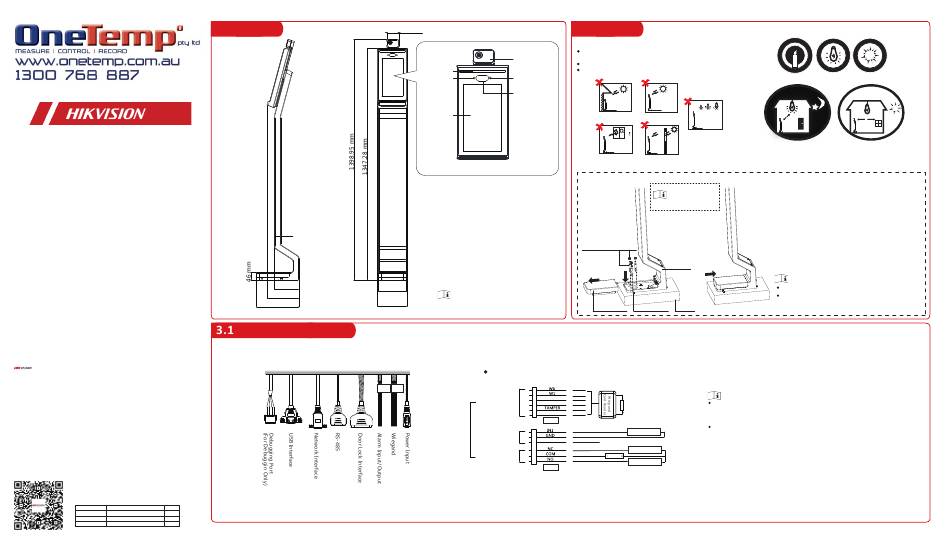

Appearance
37 mm
144.71 mm
165 mm
185.91 mm
250.71 mm 172 mm
Device Wiring (Normal)
Device
Tag 4 Tag 2
2
69.96 mm
Installation Environment:
Thermographic
Module
White Light
IR Light
IR Light
Camera
Touch Screen
The figures are for reference only.
The wiring diagram of tag 2 and 4 on the left is shown below:
Green
A1
White
A2
WG_OK
Brown
A3
Wiegand WG_ERR
Orange
A4
Grey
A5
Purple
BUZZER
A6
Tag 2
Yellow/Blue
B1
Alarm Input Yellow/Black
B2
Yellow/Orange
IN2
B3
Yellow/Purple
B4
Yellow/Brown
Alarm Output
B5
Yellow/Red
B6
Tag 4
Installation
If installing the device indoors, the device should be at least 2 meters
away from the light, and at least 3 meters away from the window.
Make sure the environment illumination is more than 100 Lux.
Indoor and windless environment use only
Backlight Direct Sunlight
Close to Light
Indirect Sunlight
Direct Sunlight
through Window through Window
The actual device
appearance varies
according to
different models.
M6×65 Expension Bolt
Bracket
2
3
1
Bottom Cover Bottom Screw Ground
The Wiegand terminal here is a Wiegand input terminal. You should set
12 V
Power Supply
the device's Wiegand direction to "Input". If you should connect to
an access controller, you should set the Wiegand direction to "Output".
For details, see the user manual.
The power supply should be 12 VDC/2 A.
Alarm Input Device
(NC)
Alarm Output Device
Power
Alarm Output Device
(NO)
10Lux 100~850Lux ＞1200Lux
2m
3m
Before you start: Make sure the ground surface has drilled
holes for device installation.
Steps:
1. Remove the two bottom screws (2-SC-KM3×5B-JMF) on
both sides of the bottom cover. And remove the bottom
cover.
2. Align the device with the drilled holes on the ground and
insert 3 supplied expension bolts (M6×65). Make sure the
expension bolts are higher than the ground.
3. Secure the expension bolts with nuts。
4. Install the bottom cover back on the device with 2 bottom
screws.
The device should be installed on the concrete surface or other
non-flammable surfaces.
The device supports plug & play. You can put the device on the
ground and start operation after powering on.
