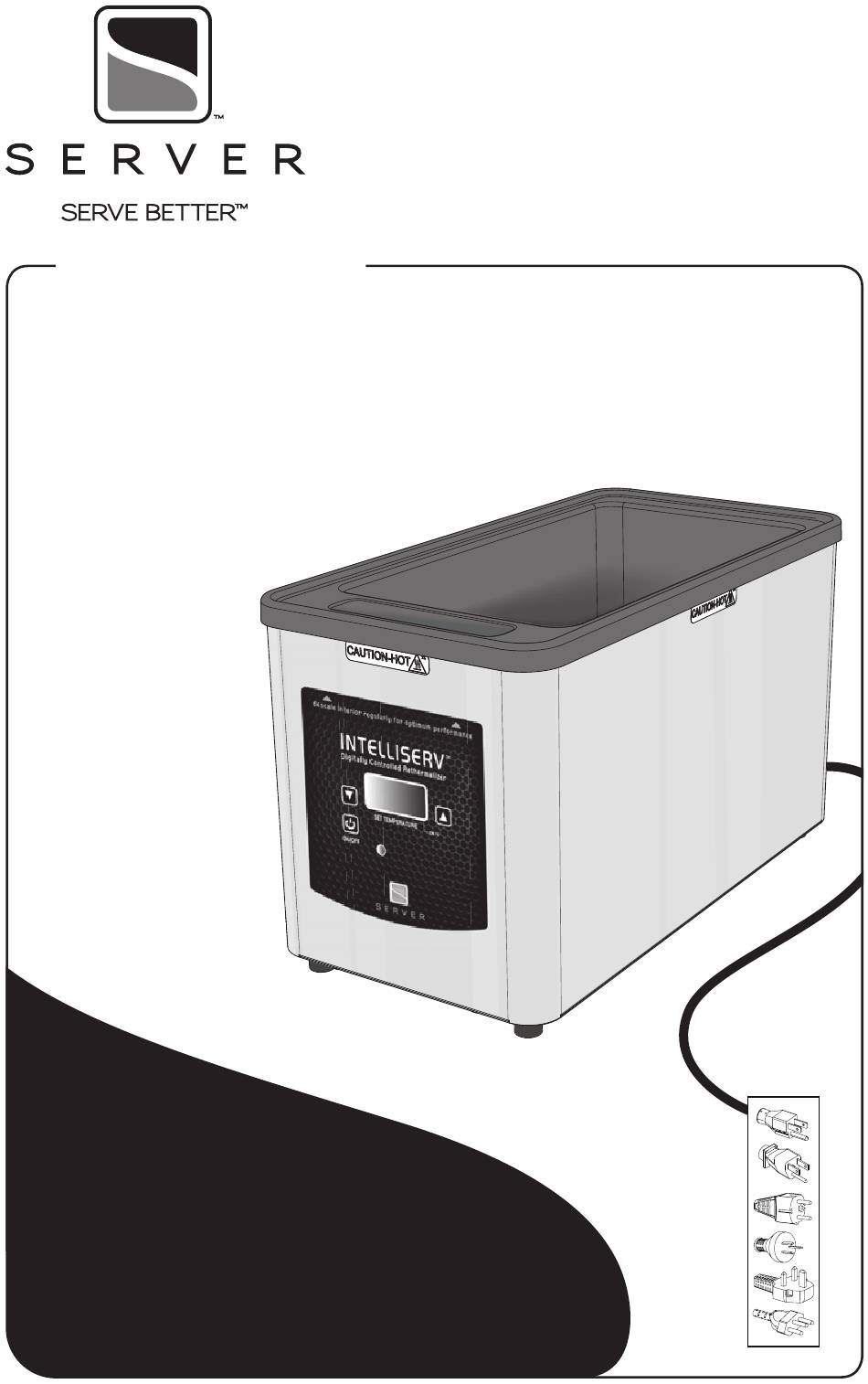

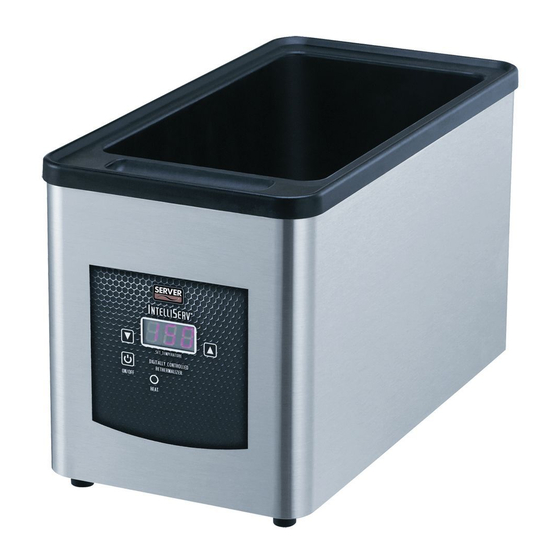

IntelliServ
™
1/3-Size Pan Warmer
MODEL: IS-1/3
120V USA
86090
120V USA
86254
(custom)
120V Canada
86481
100V Japan
86479
230V
Continental Europe
86338
230V Australia
86339
230V United Kingdom
86341
230V Brazil
86478
Thank You
...for purchasing our IntelliServ™ warmer. Its
digital temperature control ensures accurate holding
of toppings and sauces from the first serving to the last.
DON'T COMPROMISE YOUR MENU—INTELLISERV™!
Advertisement
Related Manuals for Server IntelliServ IS-1/3
Summary of Contents for Server IntelliServ IS-1/3
- Page 1 IntelliServ ™ 1/3-Size Pan Warmer MODEL: IS-1/3 120V USA 86090 120V USA 86254 (custom) 120V Canada 86481 100V Japan 86479 230V Continental Europe 86338 230V Australia 86339 230V United Kingdom 86341 230V Brazil 86478 Thank You ...for purchasing our IntelliServ™ warmer. Its digital temperature control ensures accurate holding of toppings and sauces from the first serving to the last.
- Page 2 UNIT SET-UP WASH ALL PARTS PROPERLY BEFORE EVERY USE. See page 5. FILL UNIT BASIN WITH WATER • Fill 1 liter of water up to fill-line-ridge inside basin. TIP: Check water levels throughout the holding period to ensure even heating. Filtered water is recommended to deter corrosion.
- Page 3 This unit must be earthed or grounded. temperature the product is required to maintain. This requires all three prongs (terminals) on cord Server Products, Inc. can not be responsible for plug to be plugged into power source. the serving of potentially hazardous product.
- Page 4 UNIT TAKE-DOWN PRESS POWER BUTTON to turn unit off. UNITS WITH 230 VOLTS also have a power switch. Press to OFF position. UNPLUG CORD REMOVE PAN(S) FROM BASIN CAUTION- HOT Allow unit to cool before continuing. EMPTY WATER FROM BASIN after each use.
-
Page 5: Care Of Stainless Steel
CLEANING WARNING- CLEAN ELECTRICAL SHOCK COULD OCCUR • Before first use and after use daily, disassemble and clean unit. • Electrical components of unit could be • Ensure unit is “OFF” and unplugged. damaged from water exposure or any liquid. •... -
Page 6: Control Functions
CONTROL FUNCTIONS DISPLAY MESSAGES COL = COOL Heating element is off and cooling down to set Temperature differential between cool and heat temperature. is 10° F (5.5°C) of set temperature. Display will switch between control functions and set temperature until unit stabilizes. PRE = HEAT Heating element is on and warming up to set temperature. - Page 7 WIRING UNITS 86090, 86254, 86481 (120V) A B C CHASSIS GROUND PROBE H/L1 LOAD Cord Assembly 120V USA 500W Heating Element White Black 6" Black Wire Assembly Green Thermal Cutout Bushing/Strain Relief Thermistor Assembly Wire Nut Temperature Controller 19" White Wire Assembly 3/4 Hole Shorty Bushing 6"...
- Page 8 WIRING UNIT 86479 (100V JAPAN) A B C CHASSIS GROUND CHASSIS GROUND PROBE H/L1 LOAD Cord Assembly 100V JAPAN 500W Heating Element Blue Brown 6" Black Wire Assembly Yellow/Green 3/4 Hole Shorty Bushing Bushing/Strain Relief Thermistor Assembly Thermal Cutout Temperature Controller 4"...
- Page 9 WIRING UNITS 86338, 86339, 86341 (CONTINENTAL. EURO, AU, UK) A B C CHASSIS GROUND CHASSIS GROUND PROBE H/L1 LOAD Cord Assembly 230V 6" Black Wire Assembly Blue Brown 6" White Wire Assembly Yellow/Green Bushing/Strain Relief 500W Heating Element Thermal Cutout 6"...
- Page 10 WIRING UNIT 86478 (230V BRAZIL) A B C CHASSIS GROUND CHASSIS GROUND PROBE H/L1 LOAD Cord Assembly 230V BRAZIL Blue Brown Yellow/Green Bushing/Strain Relief 6" Black Wire Assembly Rocker Switch 3/4 Hole Shorty Bushing 6" White Wire Assembly Thermistor Assembly 6"...
-
Page 11: Accessory Items
ACCESSORY ITEMS Customize your IntelliServ ™ warmer with pans, pumps, ladles or squeeze bottles for topping, finishing or platescaping. PART NUMBER Stainless Steel FP-1/6 Pump, 86312 1 oz (30 mL) Magnetic Sign- Fudge 86788 Magnetic Sign- Caramel 86789 1/6-Size Squeeze Bottle Holder 87530 w/(3) 16 oz Bottles 1/3-Size, 6"... -
Page 12: Troubleshooting
SERVER PRODUCTS GENERAL SERVICE, LIMITED WARRANTY REPAIR OR RETURNS Before sending any item to Server Products for service, repair, or return, contact Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number.
