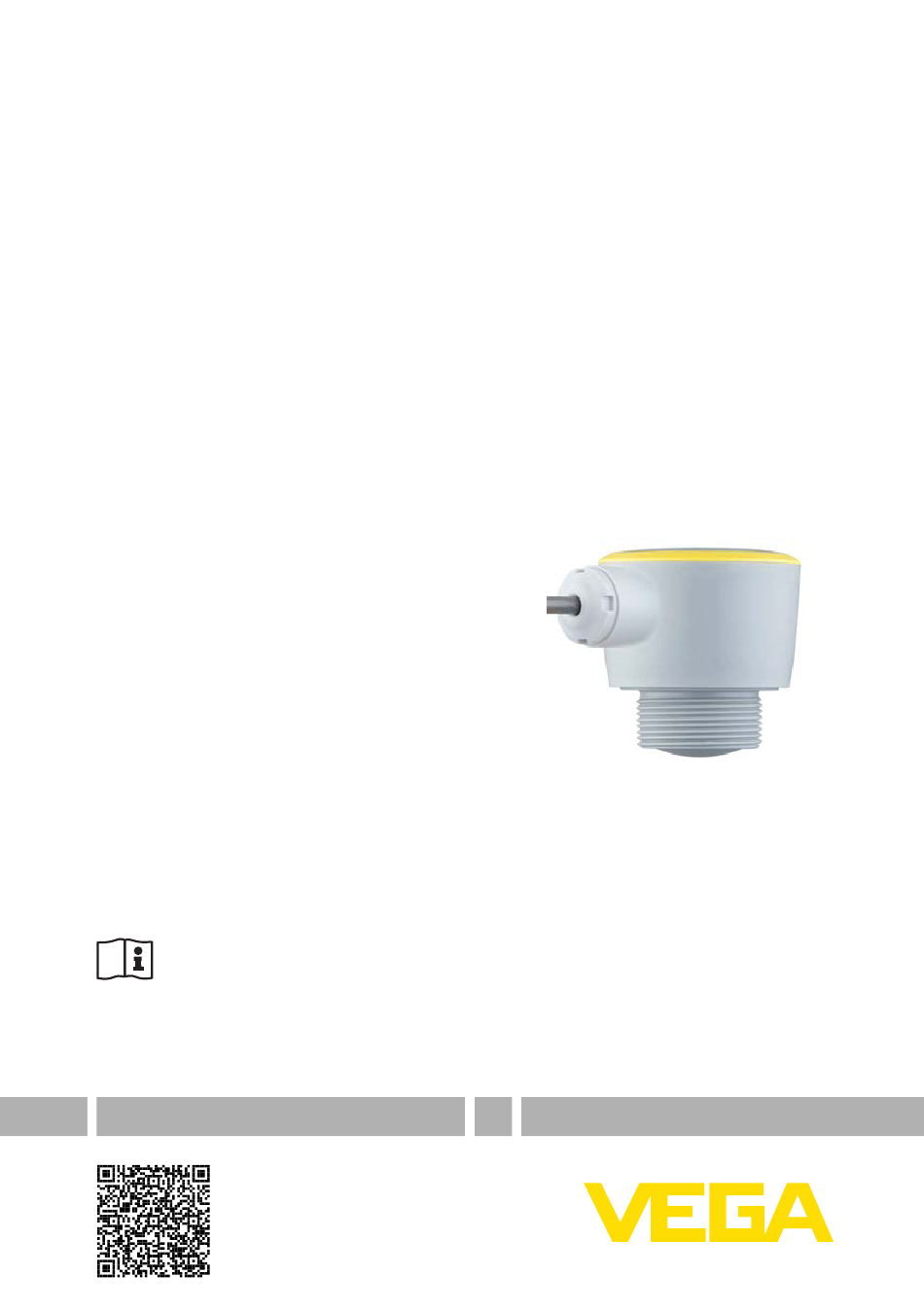

- Page 1 Operating Instructions Radar sensor for continuous level measurement of liquids VEGAPULS C 22 SDI-12 Document ID: 58345...
-
Page 2: Table Of Contents
Setup with PC/notebook (Bluetooth) ................... 24 Preparations ........................24 Connecting ........................24 Parameter adjustment ....................25 Adjustment menu ........................27 Menu overview ....................... 27 Description of the applications ..................28 10 Diagnostics and servicing ....................33 10.1 Maintenance ........................33 VEGAPULS C 22 • SDI-12... - Page 3 13.9 Licensing information for open source software ............. 55 13.10 Trademark ........................55 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2020-08-04 VEGAPULS C 22 • SDI-12...
-
Page 4: About This Document
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work. -
Page 5: For Your Safety
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use VEGAPULS C 22 is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. -
Page 6: Modes For Worldwide Use
National Electrical Code (ANSI/NFPA 70). Installations in Canada shall comply with the relevant requirements of the Canadian Electrical Code A Class 2 power supply unit has to be used for the installation in the USA and Canada. VEGAPULS C 22 • SDI-12... -
Page 7: Product Description
This operating instructions manual applies to the following instrument instructions versions: • Hardware version from 1.0.0 • Software version from 1.2.0 Constituent parts Fig. 1: Components of VEGAPULS C 22 Radar antenna 2 Process fitting Electronics housing Cable outlet Type label The type label contains the most important data for identification and use of the instrument. -
Page 8: Principle Of Operation
Power supply and signal The VEGAPULS C 22 can be operated at any data logger with SDI-12 processing interface. The sensors are powered via the +12 V line of the three-wire connection cable. -
Page 9: Packaging, Transport And Storage
Adjustment via the signal The SDI-12 data communication is controlled by commands from the cable SDI-12 data logger via the signal cable. Fig. 4: Connection of VEGAPULS C 22 SDI-12 to the data logge Sensor Data logger Packaging, transport and storage Packaging Your instrument was protected by packaging during transport. -
Page 10: Accessories
Threaded adapters enable simple adaptation of devices with stand- ard threaded fittings, e.g. to process-side hygiene connections. Mounting accessories The mounting accessories are used for stable mounting of the device at the measuring point. The parts are available in various versions and sizes. VEGAPULS C 22 • SDI-12... -
Page 11: Mounting
Mounting bracket For the wall mounting, a mounting bracket with opening for thread G1½, e.g. from the VEGA product range, is recommended. The mounting of the device in the bracket is carried out via a G1½ counter nut of plastic. Take note of chapter " Mounting instructions" for the recommended distance to the wall. -
Page 12: Mounting Instructions
The centre of the antenna lens is the beginning of the measuring range and at the same time the reference plane for the min./max. adjustment, see following diagram: Fig. 8: Reference plane Reference plane Inflowing medium Do not mount the instruments in or above the filling stream. Make sure that you detect the medium surface, not the inflowing product. VEGAPULS C 22 • SDI-12... - Page 13 (0.2 in) out of the socket. Fig. 10: Recommended threaded socket mounting of VEGAPULS C 22 If the reflective properties of the medium are good, you can mount VEGAPULS C 22 on sockets longer than the antenna. The socket end should be smooth and burr-free, if possible also rounded. Note: When mounting on longer nozzles, we recommend carrying out a false signal suppression (see chapter "...
- Page 14 Fig. 13: Alignment in liquids Agitators If there are agitators in the vessel, a false signal suppression should be carried out with the agitators in motion. This ensures that the interfering reflections from the agitators are saved with the blades in different positions. VEGAPULS C 22 • SDI-12...
-
Page 15: Measurement Setups - Gauge
Mounting on solid bracket or mounting bracket • High or low water for mounting position • Measurement on water surface as flat as possible in calm area • Minimum distance to the max. water level The following examples serve as an overview for gauge measure- ment. River level Fig. 15: Gauge measurement river, sensor mounting on bridge pier VEGAPULS C 22 • SDI-12... -
Page 16: Measurement Setup - Flow
Min. distance to the max. height of damming for optimum accu- racy: 250 mm (9.843 in) Detailed project planning data can be found at the channel manufac- turers and in the technical literature. At smaller distances the measuring accuracy is reduced, see "Technical data". VEGAPULS C 22 • SDI-12... - Page 17 The following examples serve as an overview for flow measurement. Rectangular overfall 3 ... 4 h 90° 90° Fig. 18: Flow measurement with rectangular flume: h = max. filling of the max. rectangular flume 1 Overfall orifice (side view) Upstream water Tailwater 4 Overfall orifice (view from tailwater) Khafagi-Venturi flume 3 ... 4 x h 90° Fig. 19: Flow measurement with Khafagi-Venturi flume: h = max. filling of the max. flume; B = tightest constriction in the flume Position sensor 2 Venturi flume VEGAPULS C 22 • SDI-12...
-
Page 18: Connecting To Power Supply
Wiring plan Wire assignment, con- nection cable Fig. 20: Wire assignment in permanently connected connection cable Wire colour Function Polarity Brown Voltage supply Plus (+) Blue Voltage supply Minus (-) White SDI data Plus (+) Shielding VEGAPULS C 22 • SDI-12... -
Page 19: Switch-On Phase
After connection to the power supply, the device carries out a self- test. Note: No SDI-12 commands are answered during this self-test After the self-test, the standard SDI-12 communication is used. Transmitted values take settings into account that have already been carried out, e.g. default setting. VEGAPULS C 22 • SDI-12... -
Page 20: Access Protection
If this document is lost, the emergency device code can be retrieved from your personal contact person after legitimation. The storage and transmission of the device codes is always encrypt- ed (SHA 256 algorithm). VEGAPULS C 22 • SDI-12... -
Page 21: Storing The Codes In Myvega
" PINs and Codes". This greatly simplifies the use of additional adjust- ment tools, as all Bluetooth access and device codes are automati- cally synchronized when connected to the " myVEGA" account VEGAPULS C 22 • SDI-12... -
Page 22: Setup With Smartphone/Tablet (Bluetooth)
Download the VEGA Tools app from the " Apple App Store", " Goog- le Play Store" or " Baidu Store" to your smartphone or tablet. Device activated Make sure that the VEGAPULS C 22 is activated, see chapter " Oper- ating modus, activate device". Connecting Connecting Start the adjustment app and select the function "... -
Page 23: Parameter Adjustment
Navigation section • Menu item display The selected menu item can be recognized by the colour change. Fig. 22: Example of an app view - Setup measured values Enter the requested parameters and confirm via the keyboard or the editing field. The settings are then active in the sensor. Close the app to terminate connection. VEGAPULS C 22 • SDI-12... -
Page 24: Setup With Pc/Notebook (Bluetooth)
After activating the integrated Bluetooth or the Bluetooth USB adapt- er, devices with Bluetooth are found and created in the project tree. Device activated Make sure that the VEGAPULS C 22 is activated, see chapter " Oper- ating modus, activate device". Connecting Select the requested device for the online parameter adjustment in Connecting the project tree. -
Page 25: Parameter Adjustment
(DTM) according to FDT standard are required. The latest PACTware version as well as all available DTMs are compiled in a DTM Collec- tion. The DTMs can also be integrated into other frame applications according to FDT standard. VEGAPULS C 22 • SDI-12... - Page 26 8 Setup with PC/notebook (Bluetooth) Fig. 24: Example of a DTM view - Setup, sensor adjustment VEGAPULS C 22 • SDI-12...
-
Page 27: Adjustment Menu
Menu language Displayed value Filling height Backlight Access protection Bluetooth access code Protection of the parameteri- Deactivated zation False signal sup- False signal suppression pression Sounded distance to the me- dium Reset Delivery status, basic settings VEGAPULS C 22 • SDI-12... -
Page 28: Description Of The Applications
The adjust- ment possibilities depend on the selection made under " Medium", " Liquid" or " Bulk solid". The vessels as well as the measuring and process conditions are described in the following as an overview. VEGAPULS C 22 • SDI-12... - Page 29 – Condensation on the sensor • Further recommendations – False signal suppression via adjustment app or PACTware/DTM Overflow basin • Vessel – Large volume – Partly installed underground • Process/measurement conditions: – Partly strongly agitated surface VEGAPULS C 22 • SDI-12...
- Page 30 • Process/measurement conditions: – Slow gauge change – Smooth to agitated water surface – Measurement often from a short distance with the demand for accurate measurement results – Ice and condensation on the antenna possible VEGAPULS C 22 • SDI-12...
- Page 31 – Measured value jumps and varying pouring positions, e.g. due to truck filling – Fast reaction time – Large distance to the medium – Interfering reflections from fixtures or protective devices • Further recommendations – False signal suppression via adjustment app or PACTware/DTM VEGAPULS C 22 • SDI-12...
- Page 32 9 Adjustment menu Demonstration • Applications that are not typical level measurements – Instrument demonstration – Object recognition/monitoring – Measured value verification with higher measuring accuracy with reflection without bulk solids, e.g. via a measuring plate VEGAPULS C 22 • SDI-12...
-
Page 33: Diagnostics And Servicing
24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock. -
Page 34: Status Messages According To Ne 107
This status message is inactive by default. Maintenance required: Due to external influences, the instrument function is limited. The measurement is affected, but the measured value is still valid. Plan in maintenance for the instrument because a failure is expected in the near future (e.g. due to buildup). This status message is inactive by default. VEGAPULS C 22 • SDI-12... - Page 35 Finish simulation Simulation active Wait for the automatic end after 60 mins. Out of specification Code Cause Rectification Text message S600 Temperature of the electronics in the non- Check ambient temperature specified range Impermissible electron- Insulate electronics ics temperature VEGAPULS C 22 • SDI-12...
-
Page 36: Treatment Of Measurement Errors
10.4 Treatment of measurement errors The tables below give typical examples of application-related meas- urement errors. The images in column " Error description" show the actual level as a dashed line and the output level as a solid line. VEGAPULS C 22 • SDI-12... - Page 37 Remove contamination on the antenna In case of interferences due to instal- lations in the close range, change polarisation direction Create a new false signal suppression Adapt max. adjustment VEGAPULS C 22 • SDI-12...
- Page 38 Carry out false signal suppression or in- radically towards 100 % on the antenna crease false signal suppression in the during emptying close range by editing With bulk solids, use radar sensor with purging air connection time VEGAPULS C 22 • SDI-12...
-
Page 39: Software Update
Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGAPULS C 22 • SDI-12... -
Page 40: Dismount
11.2 Disposal The device is made of recyclable materials. For this reason, it should be disposed of by a specialist recycling company. Observe the ap- plicable national regulations. VEGAPULS C 22 • SDI-12... -
Page 41: Certificates And Approvals
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observ- ing the environmental instructions in chapters " Packaging, transport and Lagestoragerung", " Disposal" of these operating instructions. VEGAPULS C 22 • SDI-12... -
Page 42: Supplement
The antenna edge is also the reference plane for the measurement. Fig. 26: Data of the input variable Reference plane Measured variable, max. measuring range G type threaded connections only G type threaded connections only VEGAPULS C 22 • SDI-12... - Page 43 ≤ 2 mm Deviation with bulk solids The values depend to a great extent on the application. Binding specifications are thus not possible. Depending on application and medium With bulk solids Depending on the operating conditions Already included in the meas. deviation VEGAPULS C 22 • SDI-12...
- Page 44 Impacts (mechanical shock) Class 6M4 acc. to IEC 60271-3-6 (50 g, 2.3 ms) Impact resistance IK07 acc. to IEC 62262 In case of deviations from reference conditions, the offset due to installation can be up to +/- 4 mm. This offset can be compensated by the adjustment. Time span after a sudden distance change from 1 m to 5 m until the output signal reaches 90 % of the final value for the first time (IEC 61298-2). Valid with operating voltage U ≥ 24 V DC. Outside the specified beam angle, the energy level of the radar signal is 50% (-3 dB) less. EIRP: Equivalent Isotropic Radiated Power VEGAPULS C 22 • SDI-12...
- Page 45 Integrated Permissible residual ripple Ʋ for 12 V< U < 18 V ≤ 0.7 V (16 … 400 Hz) Ʋ for 18 V< U < 35 V ≤ 1 V (16 … 400 Hz) Depending on the local conditions VEGAPULS C 22 • SDI-12...
-
Page 46: Sdi-12 - Overview
Additional Measurements and Request CRC atttn<CR><LF> Start Concurrent Measurement aCC! atttn<CR><LF> Start Concurrent Measurement and Request CRC aC1! ... aC9! atttn<CR><LF> Additional Concurrent Measurements aCC1! ... aCC9! atttn<CR><LF> Additional Concurrent Measurements and Request aR0! ... aR9! a<values><CR><LF> Continuous Measurements VEGAPULS C 22 • SDI-12... - Page 47 <value2>: distance value pdd.ddd <value3>: electronics temperature pttt.t <value4>: Measurement reliability prrr <value5>: Device status eee <CR><LF> Measurement data and Format: • Stage value – +ss.sss (m) – +ss.sss (ft) – +sssss (mm) – +sss.ss (in) VEGAPULS C 22 • SDI-12...
-
Page 48: Extended Commands
Read parametrization state ue4><CR><LF> aXRAPAM! a<value1><CR><LF> Read access protection active mode aXWAPPUL<value1>! a<value1><CR><LF> Write access protection parametrization lock aXWAPPL<value1>! a<value1><CR><LF> Write access protection parametrization unlock aXWAPEC<value1>! a<value1><CR><LF> Write access protection unlock with emergency code VEGAPULS C 22 • SDI-12... - Page 49 +2 = unit in [mm], +3 = unit in [in] <value2>: VVO-Status +eee <CR><LF> Example: Command Response Description 0XWDU+0! 0+0+000<CR><LF> Valid data 0XWDU+4! 0+0+136<CR><LF> No valid data Current value is returned with a status 136 VEGAPULS C 22 • SDI-12...
- Page 50 Current value is returned with a status 136 Read stage reference Command Response Description aXRSR! a<value1><CR><LF> a: sensor address <value1>: stage reference +ss.sss [m], +ss.sss [ft], +ddddd [mm], sss.ss [in] <CR><LF> Example: Command Response Description aXRSR! 0+11.000<CR><LF> VEGAPULS C 22 • SDI-12...
- Page 51 Description aXRAPUR! 0+0+0<CR><LF> Read parameterization state Command Response Description aXRPS! a<value1><value2><value3><C a: sensor address R><LF> <value1>: state, +0 = parametrization, +1 = locked <value2>: connection state <value3>: busid <CR><LF> Example: Command Response Description aXRPS! 0+0+0<CR><LF> VEGAPULS C 22 • SDI-12...
- Page 52 <CR><LF> Example: Command Response Description aXWAPPL! 0+000<CR><LF> Write access protection unlock with emergency code Command Response Description aXWAPEC <val- a<value1><CR><LF> a: sensor address ue1>! <value1>: 10 numbers (device emergency unlock code) <CR><LF> <value1>: VVO-Status Example: VEGAPULS C 22 • SDI-12...
-
Page 53: Device-Status 13)
No communication with the main controller M511 Inconsistent software configuration Out of spec Code Description S600 Impermissible electronics temperature S601 Overfilling S603 Impermissible power supply Value 4 with aD0!, aR0!, aRC0!, value 2 with aD0! behind aV! VEGAPULS C 22 • SDI-12... -
Page 54: Vvo-Status 14)
(2.52") G1½ 1½ - 14 NPT R 1½ ø 58 mm (2.28") Fig. 28: Dimensions VEGAPULS C 22 Thread G1½ Thread 1½ NPT Thread R1½ Value 2 with aXWPOM<value>!, aXWDU<value1>!, aXWTU<value>!, aXWSR<value1>!, value 1 with aX- WAPPL!, aXWAPEC<value>! VEGAPULS C 22 • SDI-12... -
Page 55: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 56 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2020 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
