Summary of Contents for Gomax SP-5108E

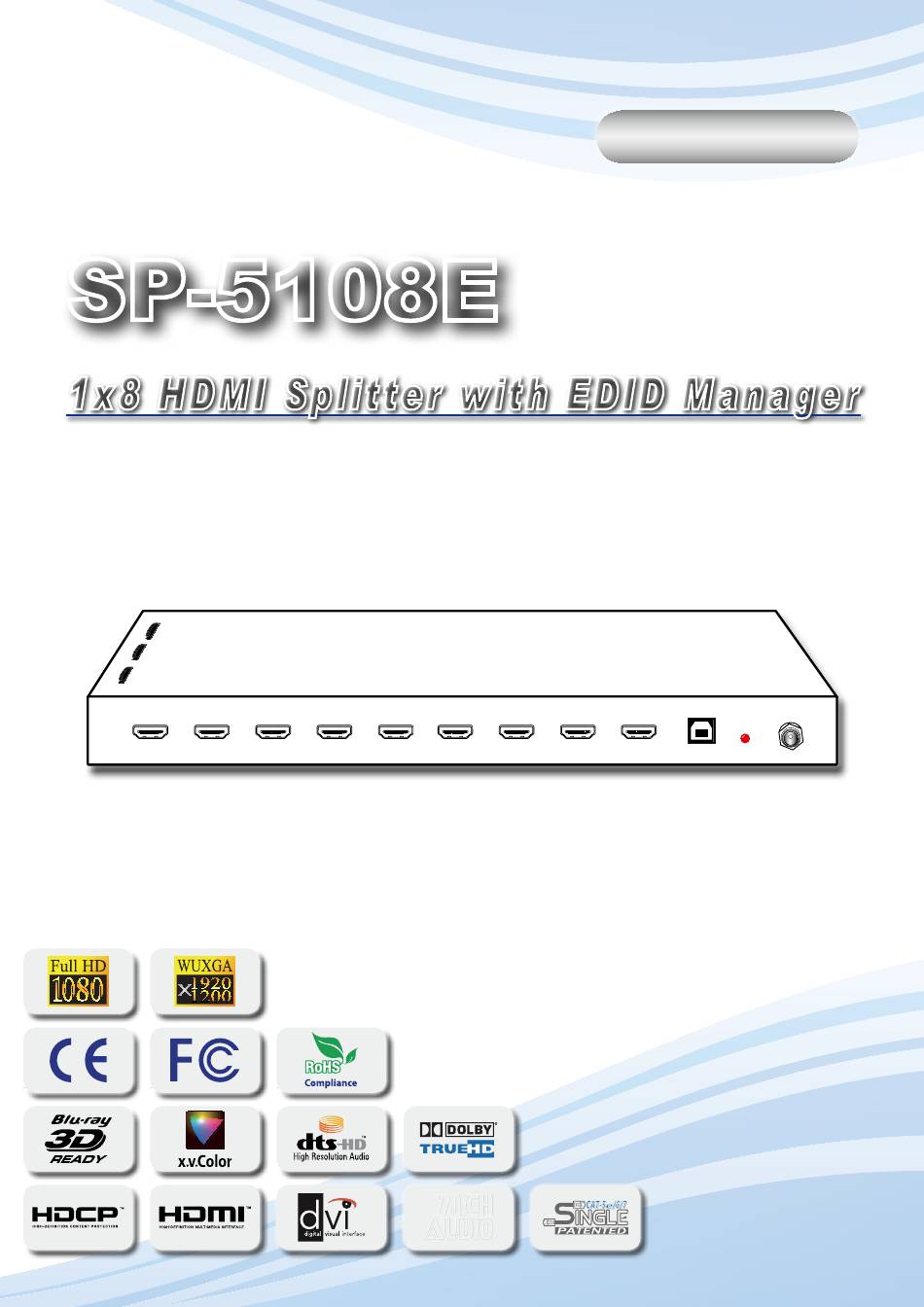

- Page 1 User Manual SP-5108E 1x8 HDMI Splitter with EDID Manager 7.1 CH 7.1 CH rev: 110304 AUDIO AUDIO Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the SP-5108E should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
EDID. The EDID with minimal resolution support will be the reference EDID for incoming HDMI source players. PACKAGE CONTENTS ● 1x SP-5108E ● 1x DC 5V 4A in-line with C7 power cord ● 1x User Manual... -
Page 4: Specifications
SPECIFICATIONS Model Name SP-5108E Technical 1x8 Distribution Amplifier (Splitter) Role of usage HDMI compliance High Speed HDMI - Deep Color & 3D support DVI compliance DVI 1.0 HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support Up to WUXGA [1920x1200@60Hz] & FullHD [1080p@60Hz]... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Rear Panel HDMI IN: HDMI input source HDMI OUT 1-8: for connecting to display through HDMI cable or through Cat-5e cable with our HDMI over Cat-5e extender USB: for firmware update use only Power: Red light means power is on +5V DC: connect to 5V 2A interlocking power supply unit EDID Manager 1080p... -
Page 6: Installation
Hardware Installation INSTALLATION Broadcasts HDMI signal to 8 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the receivers. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply unit. 5. -
Page 7: Hdmi Pin Definition
HDMI PIN DEFINITION Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11... -
Page 8: Notice
NOTICE 1. While connecting a new monitor to the splitter, experiencing a short period of time no display may be expected. Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2. - Page 9 5. For updating the first microcontroller, please set the pin 1 & 2 of the bottom DIP as the positions shown in the above table. Then, turn off the power, plug USB cable connected to your PC, and then power up the module! In this setup, the power LED indicator will NOT blink, and this is normal! Execute the attached or download EPFlash.exe, and the following window will pop up.
-
Page 10: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-5108E features and specifications is subject to change without further notice.
