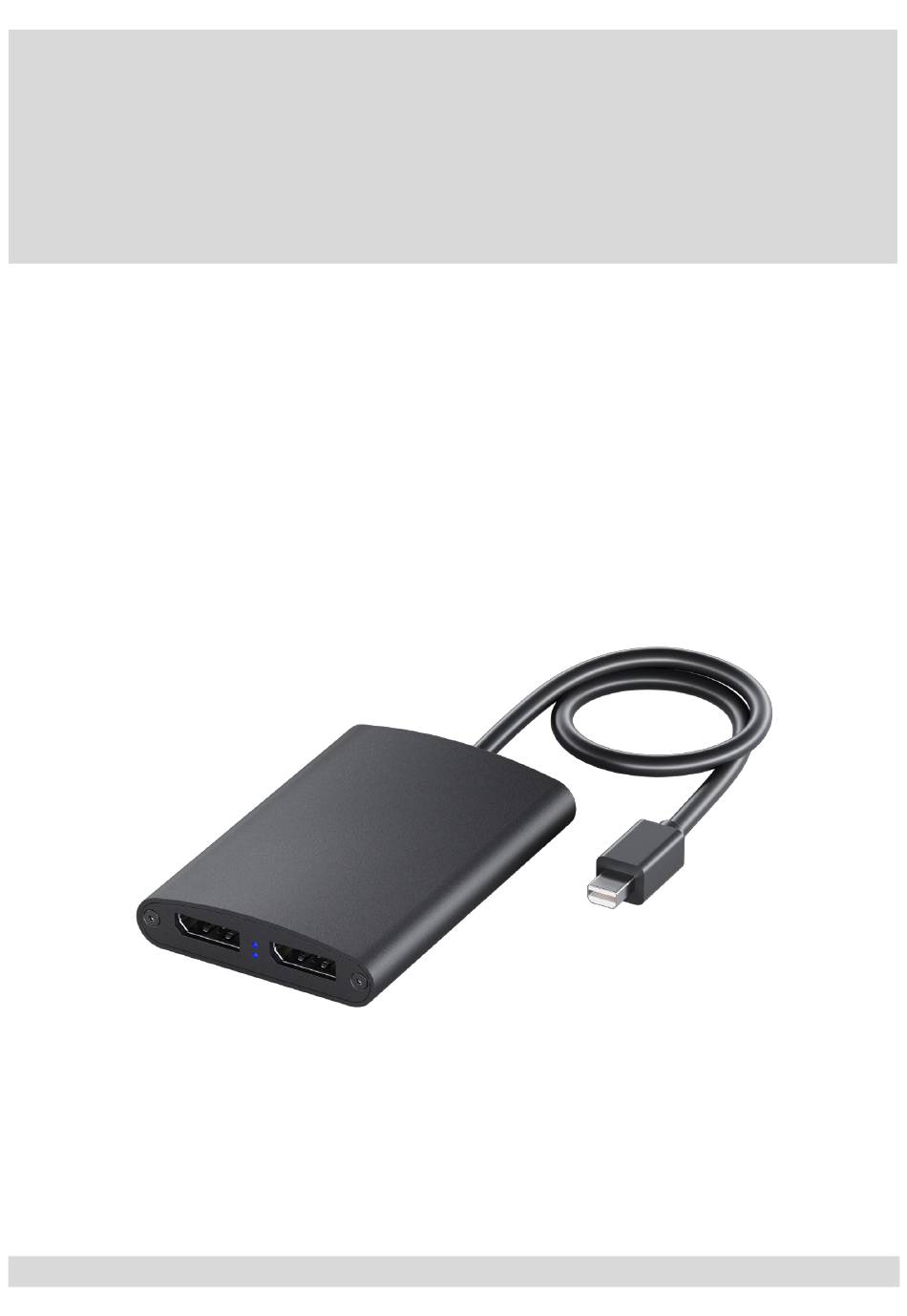

- Page 1 SP-4102Z-PT 1x2 Mini DisplayPort 1.2 to DisplayPort MST Hub/Splitter with Pigtail Cable User Manual rev: 190704 Made in Taiwan...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........................1 FEATURES ............................1 PACKAGE CONTENTS ......................... 1 SPECIFICATIONS ......................... 2 PANEL DESCRIPTIONS ......................3 CONNECTION DIAGRAM ......................4 NOTICE ............................. 4 WARRANTY ............................. 6... -
Page 3: Introduction
SP-4102Z-PT can extend the laptop or desktop to additional displays and stream independent content to each individual display to make multitasking easier and increase your productivity. Besides, SP-4102Z-PT can mirror the same image or split an image to multiple displays for digital signage applications. -
Page 4: Specifications
SPECIFICATIONS Model Name SP-4102Z-PT Technical Role of usage 1x2 MST Hub/Distribution Amplifier (Splitter) DP compliance DisplayPort 1.2 HDCP compliance HDCP 1.3 Video bandwidth 21.6Gbps Video support 4K2K@60 (4:4:4 8bits) Audio support LPCM, AC3, DTS Human body model — ±15kV [air-gap discharge] & ±8kV [contact... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS 1. DisplayPort output 1 2. Output 2 LED Indicator 3. Output 1 LED Indicator 4. DisplayPort output 2 5. Mini DisplayPort input 6. Power LED Indicator 7. +5V power (Micro-USB) 8. Link LED Indicator... -
Page 6: Connection Diagram
CONNECTION DIAGRAM SP-4102Z-PT a llows user to connect two displays to the Mini DisplayPort enabled laptop, Ultrabook, or PC. Configure these added monitors anyway you want; works as a splitter with the same content on each monitor, extended mode with independent monitors, or video wall mode joining multiple monitors together as one... -
Page 7: Notice
NOTICE Notes It is limited to two displays under mirror mode using Windows Display Utility & NVIDIA Utility. 2. It requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter under Video Wall mode (e.g., Panoramic). 3. Intel CPUs with HD Graphics are limited to three external monitors altogether. 4. -
Page 8: Warranty
WARRANTY The SELLER warrants the SP-4102Z-PT 1x2 Mini DisplayPort 1.2 to DisplayPort MST Hub/Splitter with Pigtail Cable free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order...
